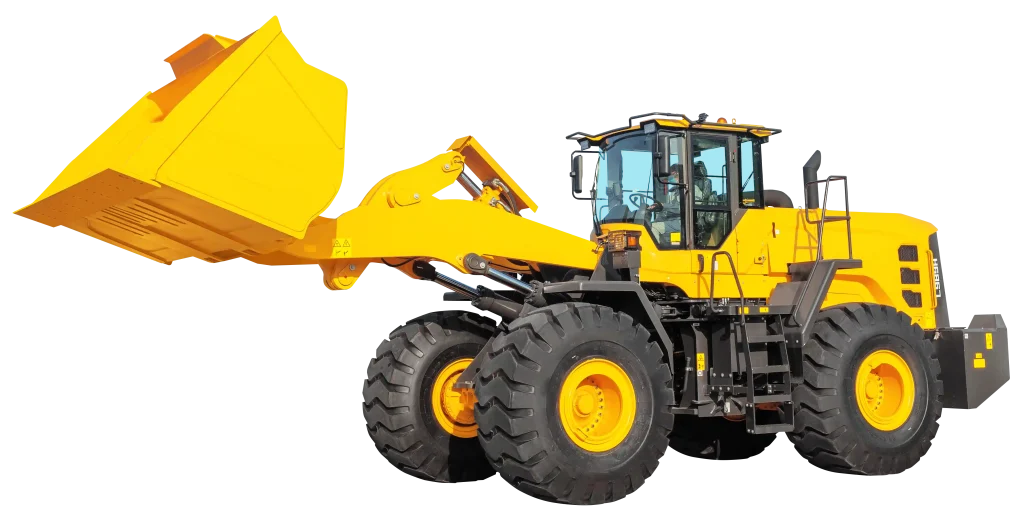

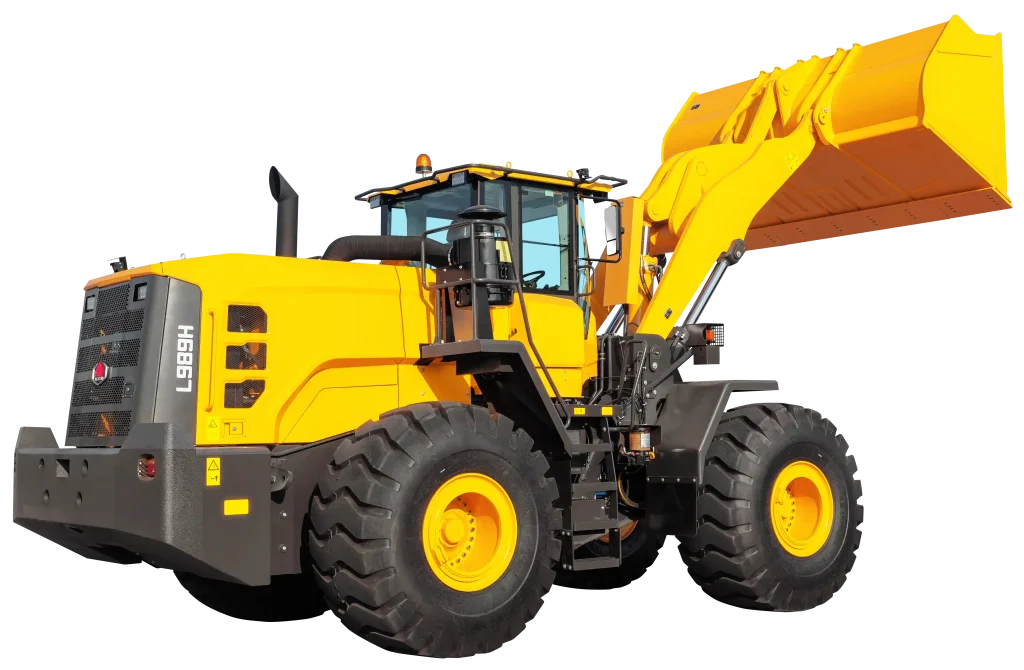

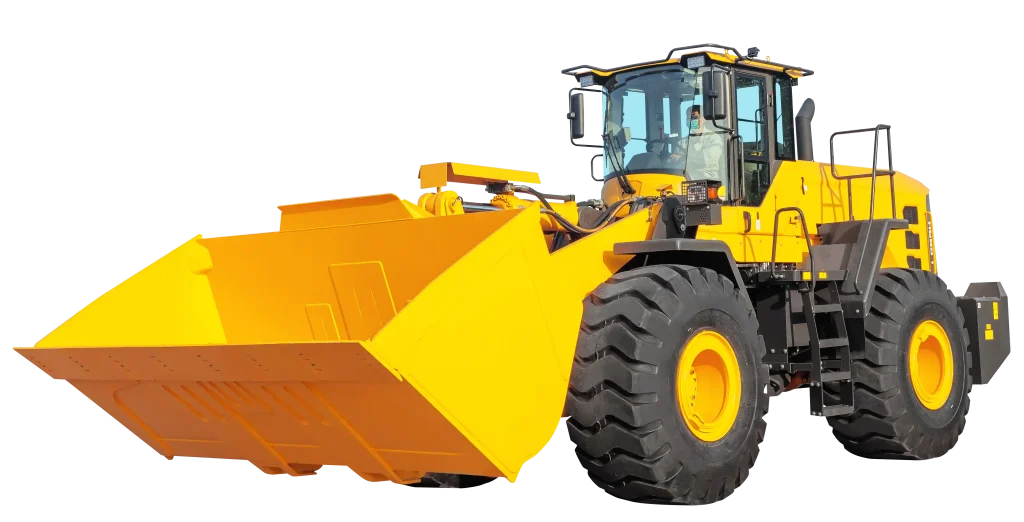

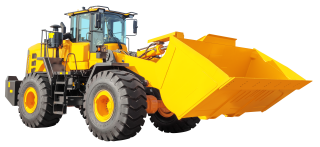

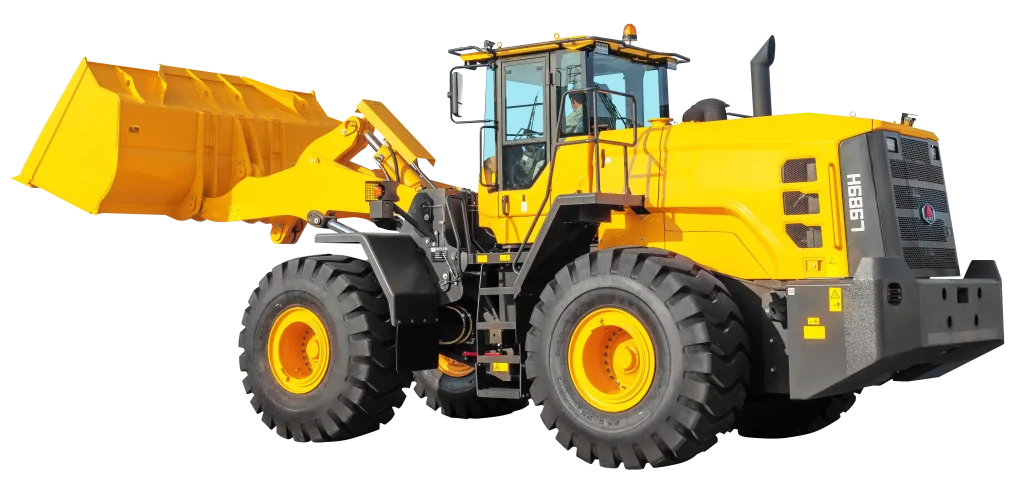

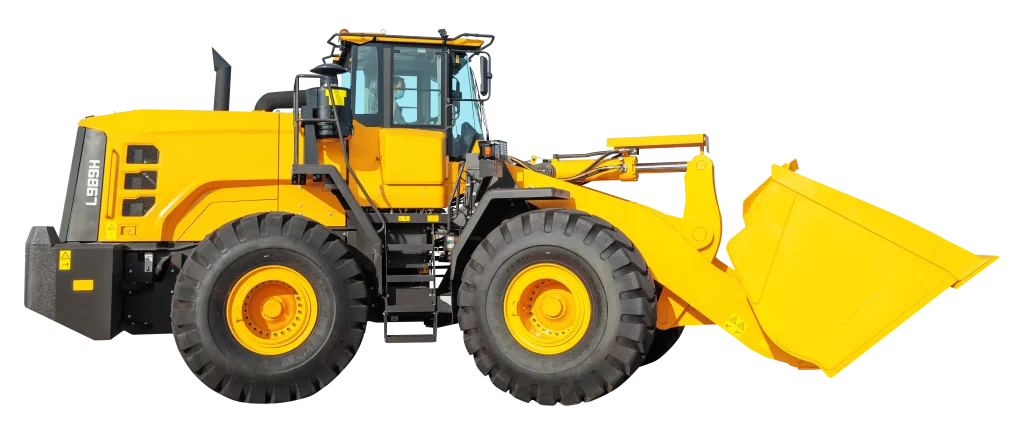

Wheel Loader
L989H
Standard bucket capacity,m³ (yd³)
4.5
Rated load,kg (lbs)
8800/8000(Extansion Boom)
Operating weight,kg (lbs)
27370/27500(Extansion Boom)
Rated power,kW (hp)/r/min
250
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- Weichai WP12 Stage III engine with a power of 250KW, low rotation speed and excellent power performance.
- Equipped with electronic control, intercooling and E-ECU intelligent control, it enables precise control of fuel injection quantity and timing, resulting in high combustion efficiency.
- Independent cooling system, which automatically adjusts the fan speed according to the water temperature and intercooling temperature, achieving energy saving and noise reduction.
- The cooling system has excellent performance and meets the requirements of high-intensity heavy-load working conditions.
- Reasonable power matching, large lifting force and high operating efficiency.
- Long wheelbase ensures good operating stability and meets the needs of heavy-load working conditions.
- Box-type frame: reasonable load distribution, strong bearing capacity, high reliability, and service life exceeding 10,000 hours.
- The main articulation adopts double-row tapered roller bearings, featuring high reliability.
- High-end fixed-shaft electro-hydraulic shift gearbox with long service life, reliable and durable.
- Full-hydraulic wet brake axle with strong bearing capacity; equipped with active axle cooling function to ensure the oil temperature of the drive axle is within the allowable range.
- This greatly extends the service life and oil change interval of the drive axle, with high reliability.
- Adopting high-end hydraulic components in the industry and a load-sensing hydraulic system, it features easy operation and reliable performance.
- Standard configuration includes full-hydraulic wet brake with dual-circuit system, oil-bath air filter, and high-grade mine-specific tires, ensuring high reliability and meeting the requirements of heavy-load working conditions.
- The newly designed H-series cab features a brand-new exterior. The sealing performance, shock absorption, and noise reduction effects have been further improved,offering a high level of comfort.
- The H-series comes with a new interior design. The LCD dashboard and rocker switches are arranged on the column, making the operation convenient.
- The storage space has been enlarged, and a mobile phone holder has been added.
- A storage box with both heating and cooling functions has been added, making it more user-friendly.
- Electrical components such as fuses and relays of the whole machine are centrally arranged at the left rear of the cab.
- They can be replaced by opening the cover, making maintenance and inspection very convenient.
- Engine fuel filter, air filter, and oil-water separator are centrally arranged. Maintenance can be performed easily by opening the engine hood.
- The single-layer cooling system is rotatable for easy cleaning. When the cooling system is rotated, the fuel filler is exposed for convenient refueling.
Technical Parameter
| Rated Load (kg) | 8800/8000(Extansion Boom) |
| Length×Width×Height (mm) | 9110×3170×3725 / 9400×3170×3725(Extansion Boom) |
| Wheel Base (mm) | 3550 |
| Max.Dumping Height (mm) | 3300/3650(Extansion Boom) |
| Dumping Distance (mm) | 1405/1390(Extansion Boom) |
| Emission Standard | GB 20891-2014(stage Ⅲ) |
| Max.Tractive Force (kN) | 225/220(Extansion Boom) |
| Max.Breakout Force (kN) | ≥240/≥230(Extansion Boom) |
| Fuel Tank Capacity (L) | 380 |
| Standard Bucket Capacity (m³) | 4.5 |
| Operating Weight (kg) | 27370/27500(Extansion Boom) |
| Rated Power (kW) | 250 |
| Engine Model | Weichai WP12G340E311 |
