Wheel Loader

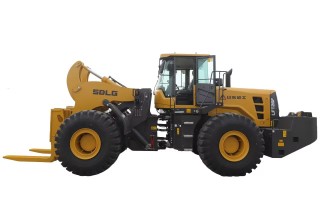

LFT26F
Rated load,kg (lbs)
26000
Operating weight,kg (lbs)
29000
Rated power,kW (hp)/r/min
178
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- The high-end appearance level is in line with international standards
- Metal mold forming machine cover, high strength and easy to repair.
- The whole machine is exquisitely and thickly crafted, with bright and vivid paint that does not fade for many years.
- Comfortable handling
- New high-end cab, in line with international standards; The interior is widened and lengthened, providing a wide field of visionBroad.
- The interior space of the driver’s cabin has increased by 15% compared to the previous generation, and the seats can be folded down.
- It is convenient for drivers to rest.
- The combined dashboard is equipped with a fuel gauge and an engine tachometer, so you don’t need to get out of the car.
- Then the remaining fuel quantity can be monitored.
- Standard air conditioning and standard pilot control.
- Mine tire
- Equipped with well-known brand tires, the overall quality is good and the service life is long. High tire strength (36PR at the front / 24PR at the rear), specifically designed for heavy-duty mining, with a long service life. Reinforced rims enhance overall strength and prevent deformation under heavy loads.
- Convenient for maintenance
- The large-opening hood provides a large maintenance space and is easy to maintain.
- The air filter and fuel filter are centrally arranged on one side of the engine.
- Easy to maintain.
- The engine is equipped with an electric pump. After replacing the diesel filter, there is no need to pump the oil manually.
Technical Parameter
| Rated Load (kg) | 26000 |
| Length×Width×Height (mm) | 9210ⅹ3025ⅹ3470 |
| Wheel Base (mm) | 2350 |
| Steering Angel (°) | 35 |
| Emission Standard | GB 20891-2014(III) |
| Max.Tractive Force (kN) | 200 |
| Fuel Tank Capacity (L) | 260 |
| Operating Weight (kg) | 29000 |
| Rated Power (kW) | 178 |
| Engine Model | WP10G220E341 |
