Wheel Loader

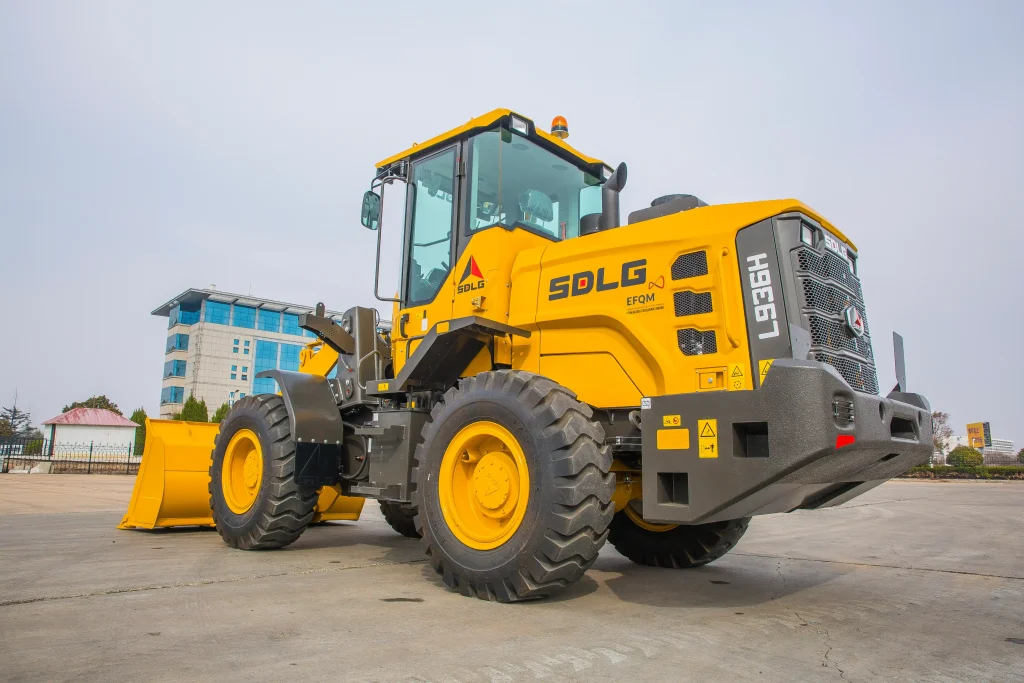

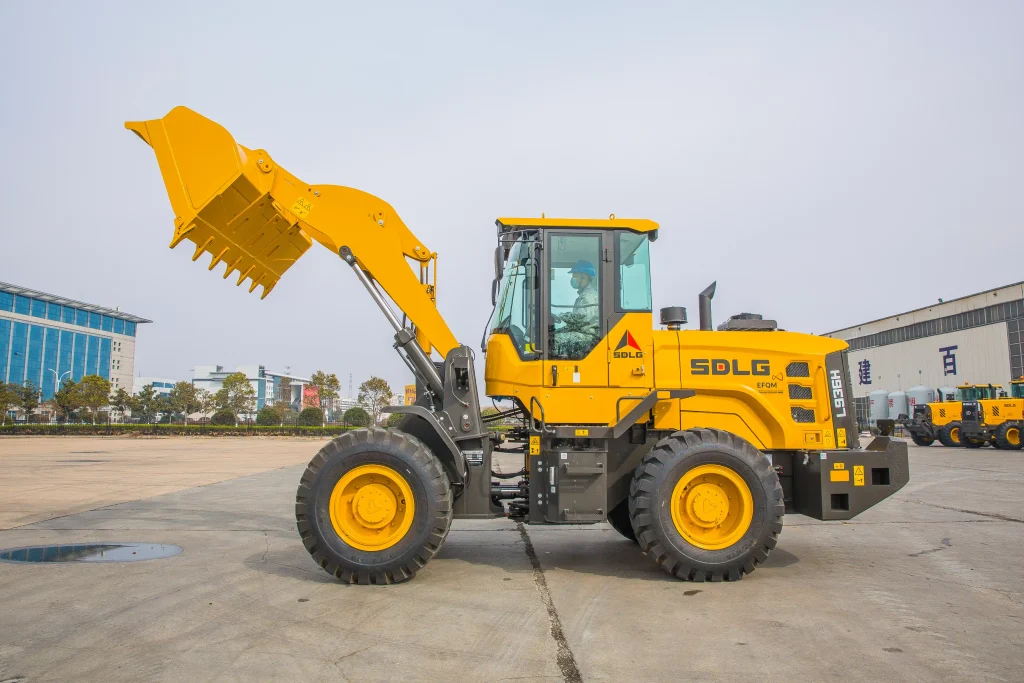

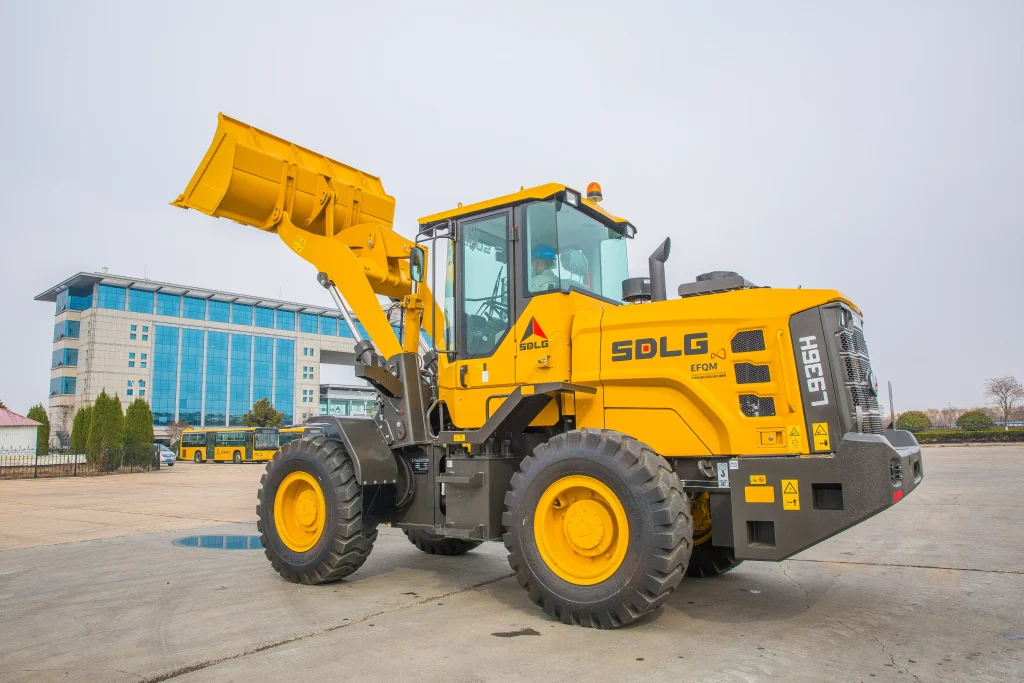

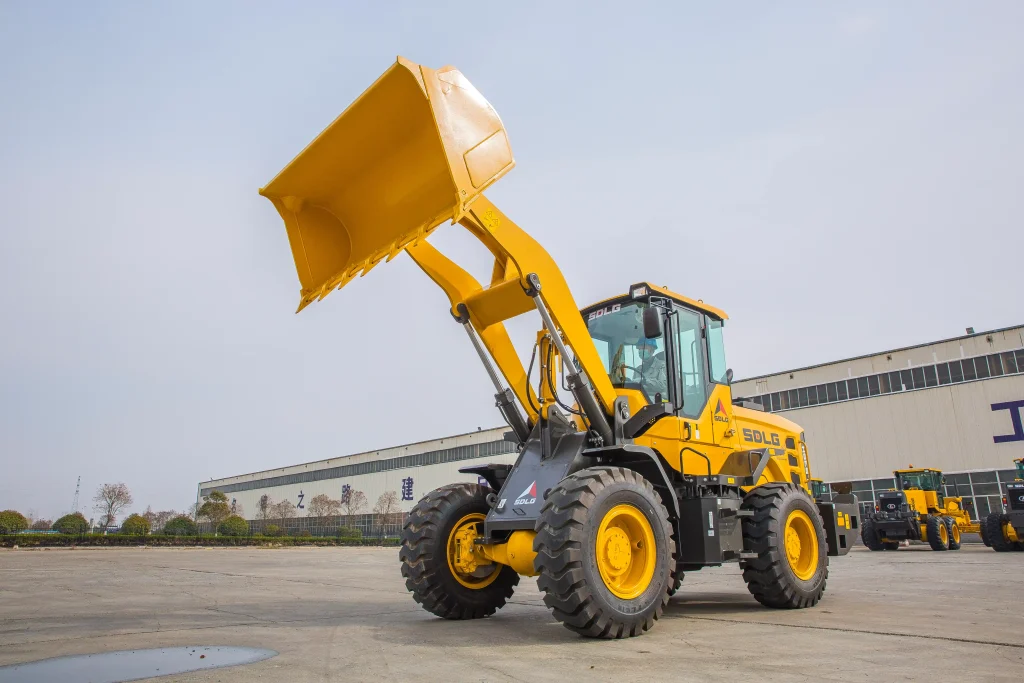

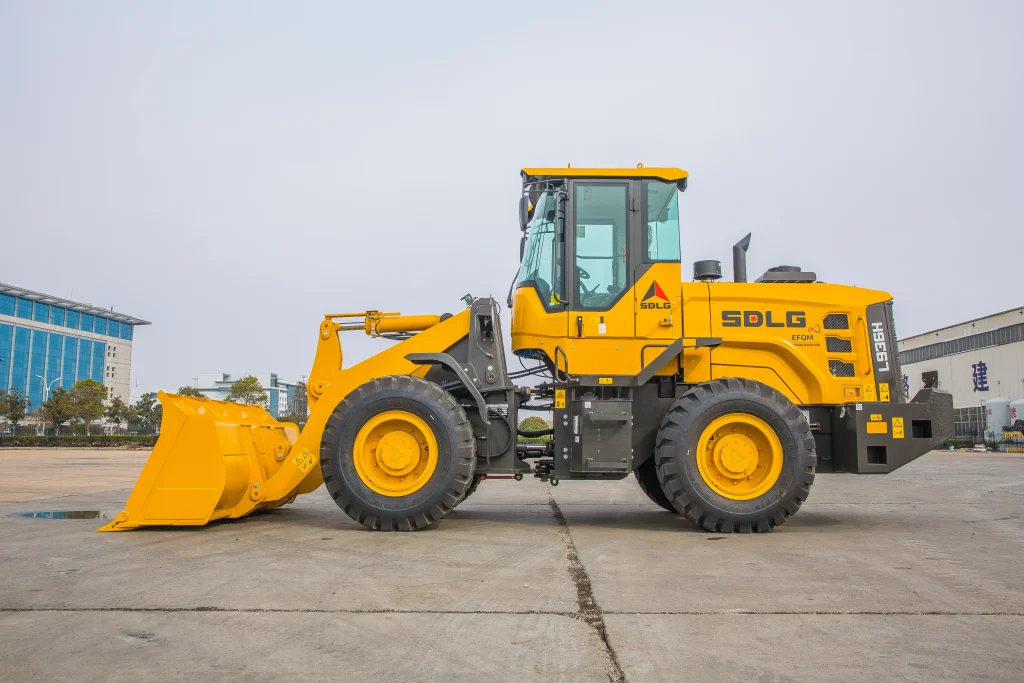

L936H (T3)
Standard bucket capacity,m³ (yd³)
1.8
Rated load,kg (lbs)
3000
Operating weight,kg (lbs)
11750
Rated power,kW (hp)/r/min
105
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- High efficiency: The three power curves of the engine with highly efficient and energy-saving, the rated load is 3.5 tons, the traction force is large, the breakout force is high, the whole machine is flexible and mobile, and the work efficiency is industry-leading.
- High reliability: 5t grade transmission, 20t high carry capacity axle, reliable and durable for heavy-duty operations.
- High comfort: large space cab, good view, low noise, low vibration, AC is clean and cool, LCD panel upgrade, operation comfortable and convenient.
- Beautiful appearance: H series cab and engine hood , fine workmanship, beautiful and generous, high second-hand value preservation rate.
Technical Parameter
| Rated Load (kg) | 3000 |
| Length×Width×Height (mm) | 7490×2520×3170 |
| Wheel Base (mm) | 2850 |
| Max.Dumping Height (mm) | 2800 |
| Dumping Distance (mm) | 1245 |
| Steering Angel (°) | 37 |
| Emission Standard | GB 20891-2014(stage Ⅲ) |
| Max.Tractive Force (kN) | 100 |
| Max.Breakout Force (kN) | ≥82 |
| Fuel Tank Capacity (L) | 200 |
| Standard Bucket Capacity (m³) | 1.8 |
| Operating Weight (kg) | 11750 |
| Rated Power (kW) | 105 |
| Engine Model | Wechai WP6G140E313 |
