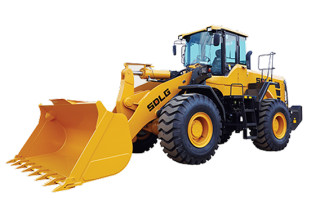

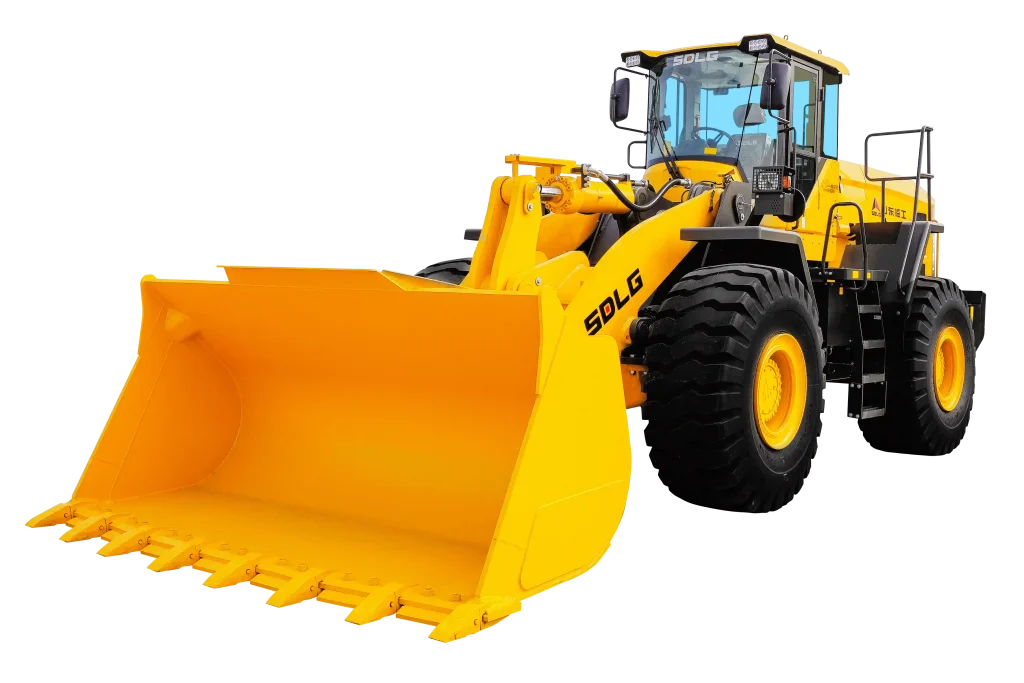

Wheel Loader
L970
Standard bucket capacity,m³ (yd³)
4.0
Rated load,kg (lbs)
7000
Operating weight,kg (lbs)
21300
Rated power,kW (hp)/r/min
199
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- High Efficiency
- Weichai high efficiency engine, Tier T3.
- The energy-saving low-speed engine fits well with the high-efficiency and realizes a comprehensive energy saving of more than 10%.
- High market share and high reliability; Good adaptability; Low maintenance cost.
- High Reliability
- It is applied with the VOLVO HTE220B fixed-shaft electro-hydraulic shift transmission of four forward gears and four reverse gears, which features high transmission efficiency.
- It has the function of power cut-off and neutral gear lock-up, enabling stable and impact-free gearshift and high reliability.
- The KD gearshift function configured reduces the operating efforts and enhances the flexibility and efficiency.
- Greater Reliability
- Fully new generation of boxed frame design by VOLVO and SDLG team.
- The load distribution is reasonable; Fatigue test for 200 k Hours, to get the greater reliability.
- High Quality
- Hydraulic system components use internationally renowned suppliers;
- Large flow, high pressure, smooth composite action.
- Lightweight operation, high efficiency and reliable performance.
- Convenience
- Automotive-grade mold-formed steel hood with high structural strength and elegant appearance.
- The double gas spring opens the hood and is easy to operate.
- Large opening side door maintenance is more convenient.
- Adaptability
- Equipped the oil-bath filter to meet the abominable environment(option).
- Heavy-Duty
- Heavy-duty drive axle and oscillating rear drive axle jointly developed by Volvo and SDLG; Meet the driving force and escape ability of bad conditions.
- The unique rear axle double swing arm connection makes the load distribution of the whole machine reasonable, large bearing capacity, long service life and high reliability.
- Greater Carrying Capacity
- Serialized low – resistance buckets not only meet the needs of different working conditions
- and customers, but also improve work efficiency and create more value for customers.
- Comfortability
- The super-large, full-view, Low noise, Double curved arc front windshield, Luxury seat and
- User-friendly design, to build the best operating environment. Inner space increased by 15%; Width of view increased by 20%; Sealing property increased by 35%; with powerful air condition.
- Safety
- Equipped with a brake circulation system to prevent high temperatures in the braking system, ensuring efficient and reliable braking.
Technical Parameter
| Rated Load (kg) | 7000 |
| Length×Width×Height (mm) | 9020×3200×3510 |
| Emission Standard | GB 20891-2014 (stageⅢ) |
| Max.Tractive Force (kN) | 200 |
| Max.Breakout Force (kN) | ≥215 |
| Fuel Tank Capacity (L) | 350 |
| Standard Bucket Capacity (m³) | 4.0 |
| Operating Weight (kg) | 21300 |
| Rated Power (kW) | 199 |
| Engine Model | Weichai Tier T3 |
