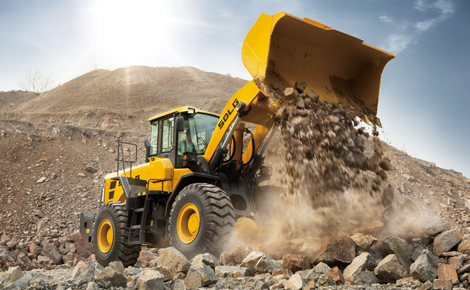

Wheel Loader

L956F

Operating weight,kg (lbs) 17450

Bucket capacity (m³) 3.0

Talk to sales directly — Anthony 086 223 7039 or Ronald 087 915 3459 .
Demos arranged nationwide.

Features

Reliable
BX50 planetary transmission with high transmission efficiency is used.
LG A515 drive axle is adopted with rear axle swing design to provide strong bearing capacity and high reliability.
Standard 18 ply rating 23.5-25 tyres with superior wear resistance are adopted, which are more suitable to heavy load working conditions in mines.
Parker multiway valves, Permco working pumps and hydraulic components which are reliable and highly efficient are adopted.
Energy-efficient
Energy-efficient low RPM engine meeting China II emission standard requirements and highly-efficient large-capacity torque converter are perfectly combined to realize comprehensive energy conservation by 20%;
Comfortable
Three-level damping;
Cab space increased by 15%, indoor noise reduced to 80dB;
Mechanical suspended seat;
Curved glass with broad view.
Convenient
Engine hood and heat dissipation hood are designed with a large opening respectively to provide larger space for maintenance;
Oil filter, fuel filter and air filter are arranged at the same side to facilitate maintenance.
