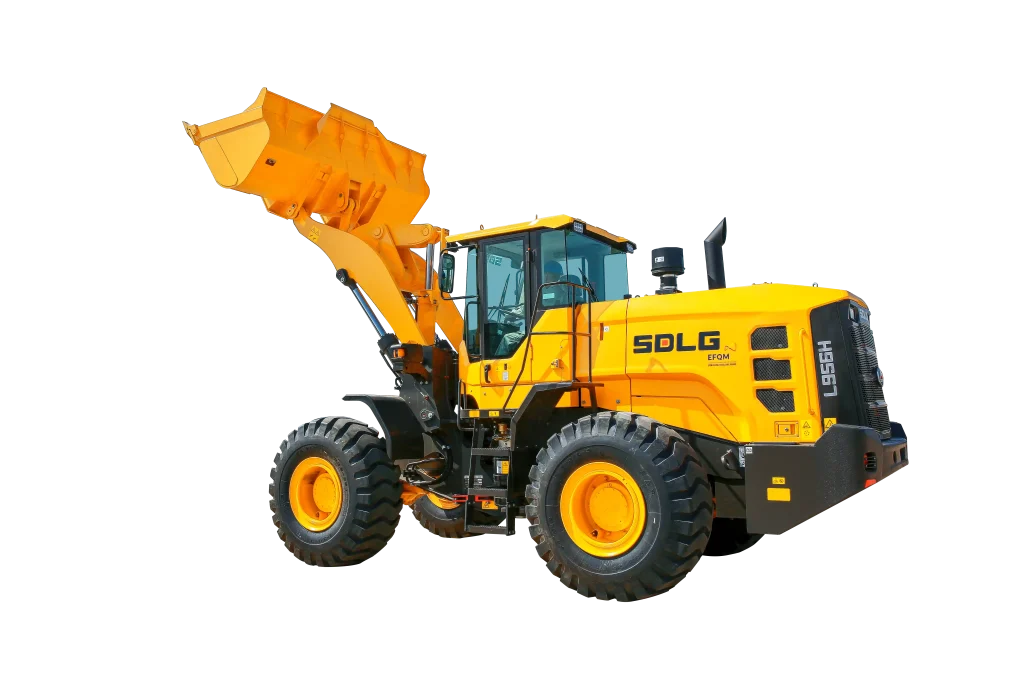

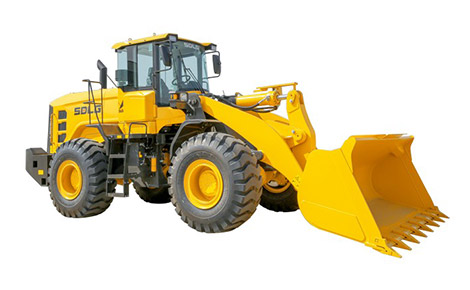

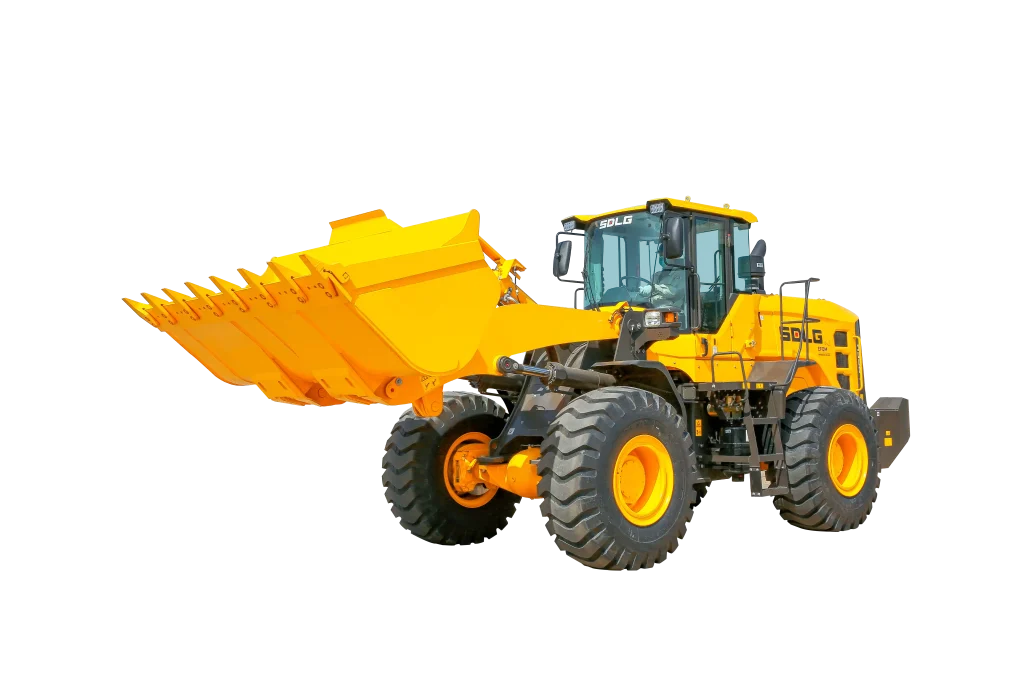

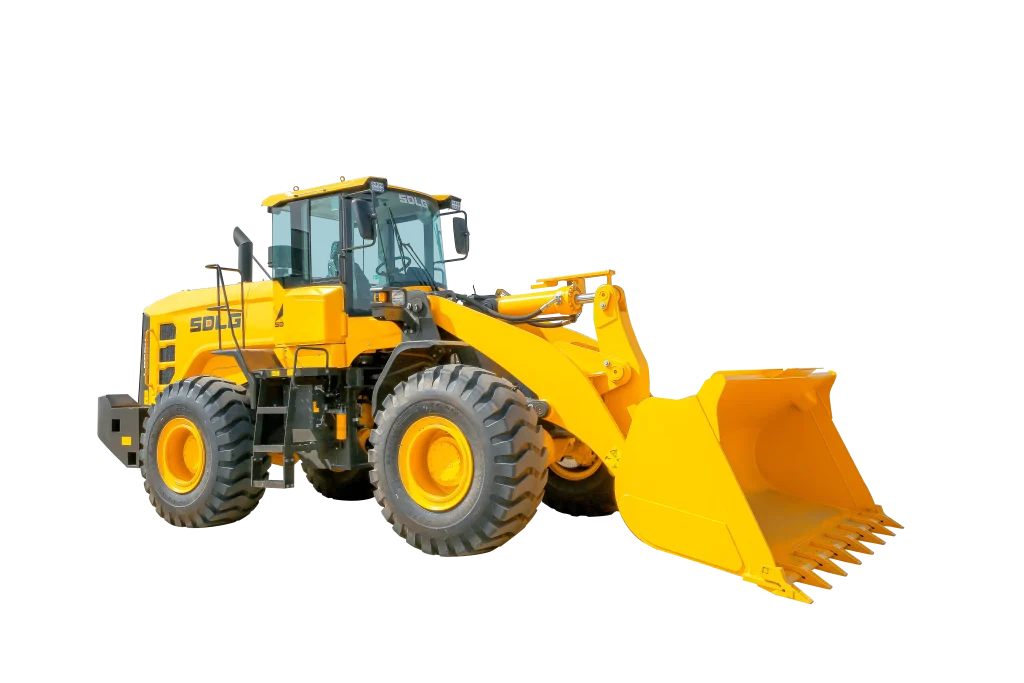

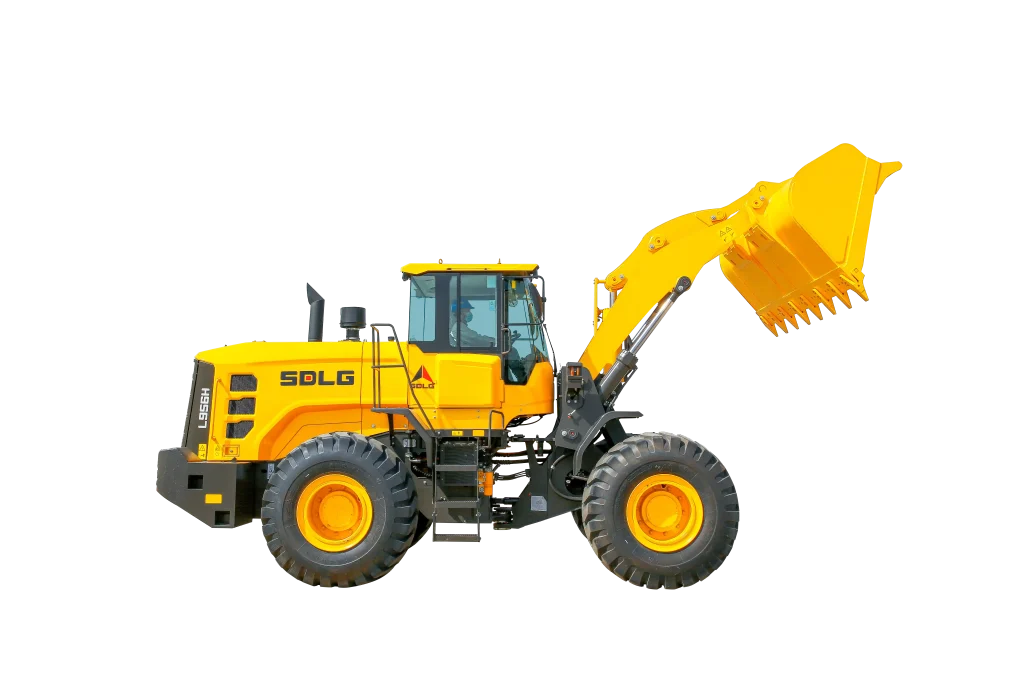

Wheel Loader
L956H plus
Standard bucket capacity,m³ (yd³)
4.0
Rated load,kg (lbs)
5500
Operating weight,kg (lbs)
17650
Rated power,kW (hp)/r/min
162
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- L956HPLUS is a medium-sized loader with a long wheelbase (3400mm) and a new exterior design, featuring a rated load capacity of 5.5T and suitability for composite working conditions in open areas. This machine offers strong combined traction and breakout force, delivering high loading efficiency. It is widely used in applications such as gravel yards, mixing stations, and coal yards, as well as heavier working conditions involving raw soil, wet sand, hard rock, and mineral powder—materials with relatively high density.
Technical Parameter
| Rated Load (kg) | 5500 |
| Length×Width×Height (mm) | 8630×3016×3466 |
| Wheel Base (mm) | 3400 |
| Max.Dumping Height (mm) | 3215 |
| Dumping Distance (mm) | 1300 |
| Steering Angel (°) | 36 |
| Emission Standard | GB 20891-2007 |
| Max.Tractive Force (kN) | 160 |
| Fuel Tank Capacity (L) | 300 |
| Standard Bucket Capacity (m³) | 4.0 |
| Operating Weight (kg) | 17650 |
| Rated Power (kW) | 162 |
| Engine Model | Weichai WD10G220E23 |
