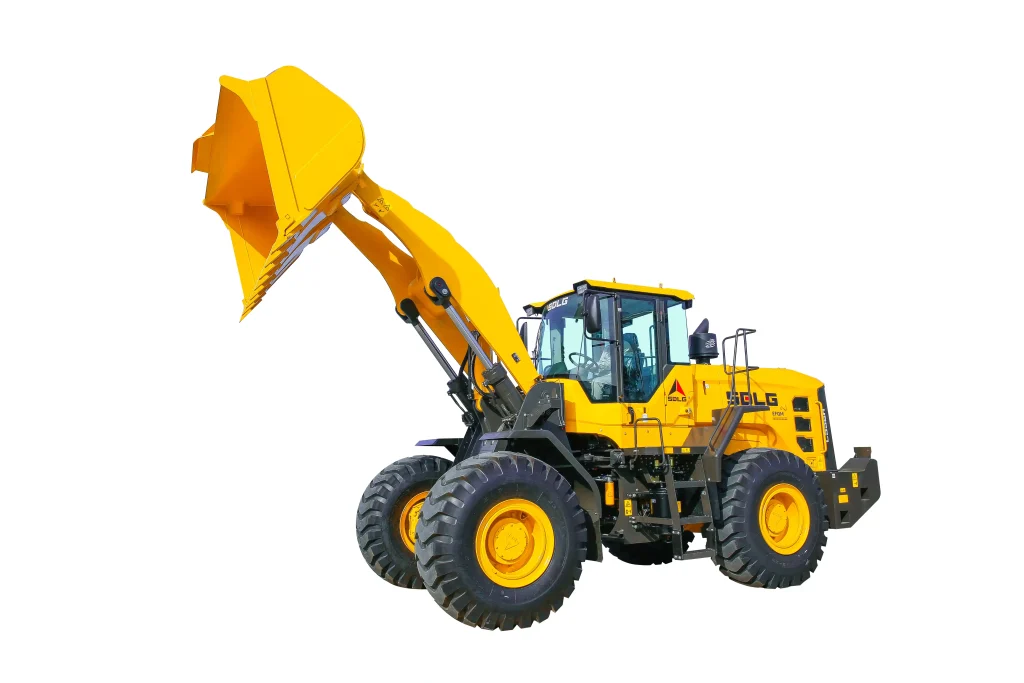

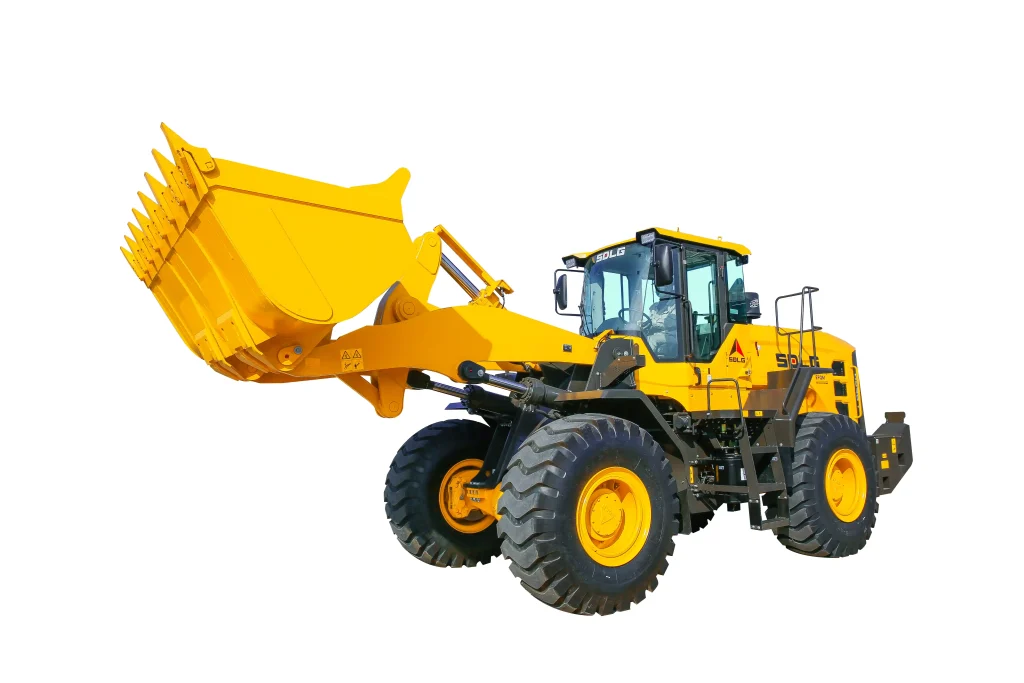

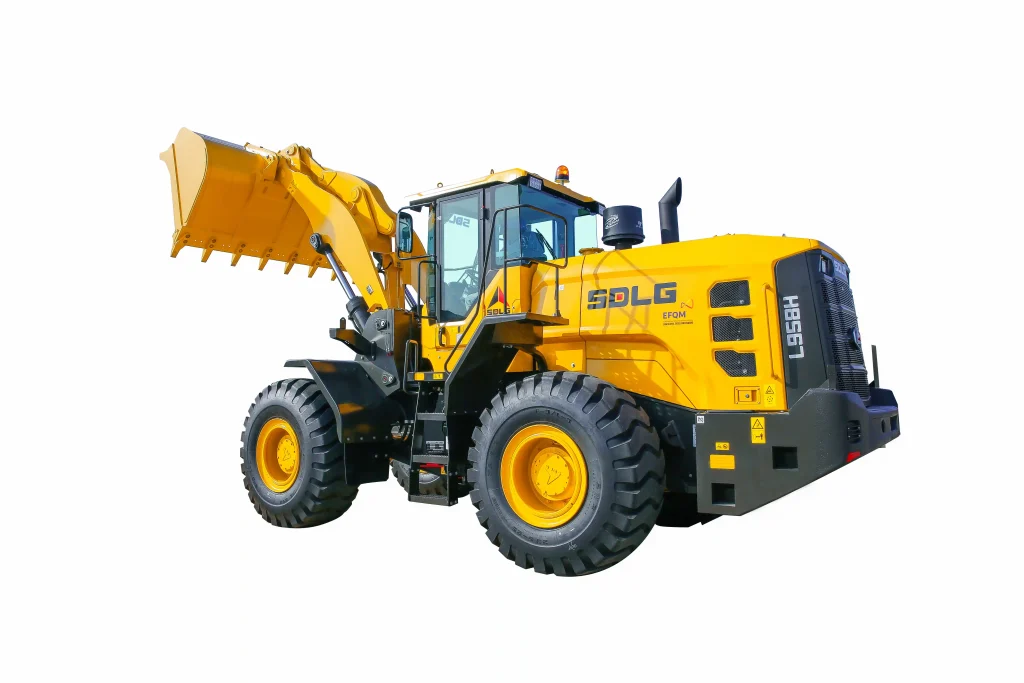

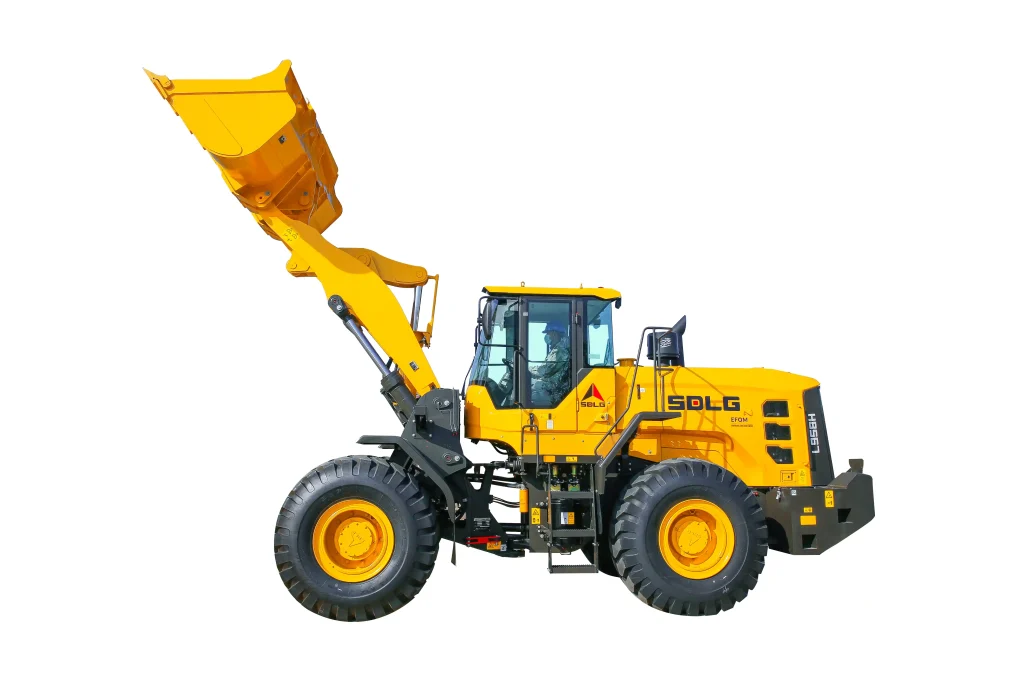

Wheel Loader
L958H (Stage V)
Standard bucket capacity,m³ (yd³)
3.2
Rated load,kg (lbs)
5500
Operating weight,kg (lbs)
18250
Rated power,kW (hp)/r/min
168
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- Reliable
- The BFM8 engine features high torque, strong power, high quality, and high product reliability. It also has a large market presence.
- Equipped with a unit pump and mechanical injectors, it has good fuel adaptability and stable engine performance.
- Adopting the SDLG wet axle, it has reasonable load distribution and strong load-bearing capacity.
- The wet braking system provides good braking effect, ensuring safety and reliability.
- Optimization design front and rear frame, eliminate stress concentration, the load distribution is reasonable, with high stability and reliability, tapered bearing are used in the lower hinge joint, Large carry capacity and torsion resistance.
- Energy saving
- The load-sensing full-hydraulic steering system features a fast steering response speed and minimal energy loss.
- The dual-pump confluence hydraulic system reduces the power loss of the hydraulic system, achieving energy efficiency.
- Three levels of power modes are set for different working conditions. Customers can select according to the actual working conditions, achieving high efficiency and energy conservation.
- The radiators are arranged in a single parallel row, which provides good heat dissipation effects, saves energy, and produces low noise.
- Comfortable
- The automatic transmission can automatically switch gears according to the vehicle speed. It offers a comfortable operation experience and reduces labor intensity.
- Equipped with pilot-operated dual joystick control, integrating FNR, KD, horn and other functions; flexible and convenient to operate, comfortable to handle.
- The newly designed H-series cab features a brand-new exterior. It has a large interior space and a good field of vision.
- The sealing performance, shock absorption, and noise reduction effects have been further improved, offering a high level of comfort.
- The H-series comes with a new interior design. The LCD dashboard and rocker switches are arranged on the column, making the operation convenient.
- The storage space has been enlarged, and a mobile phone holder has been added.
- A storage box with both heating and cooling functions has been added, making it more user-friendly.
Technical Parameter
| Rated Load (kg) | 5500 |
| Length×Width×Height (mm) | 8200×3016×3450 |
| Wheel Base (mm) | 3400 |
| Max.Dumping Height (mm) | 3150 |
| Dumping Distance (mm) | 1150 |
| Steering Angel (°) | 38 |
| Emission Standard | Stage V |
| Max.Tractive Force (kN) | 160 |
| Max.Breakout Force (kN) | ≥175 |
| Fuel Tank Capacity (L) | 300 |
| Standard Bucket Capacity (m³) | 3.2 |
| Operating Weight (kg) | 18250 |
| Rated Power (kW) | 168 |
| Engine Model | BFM8-22T3 |
