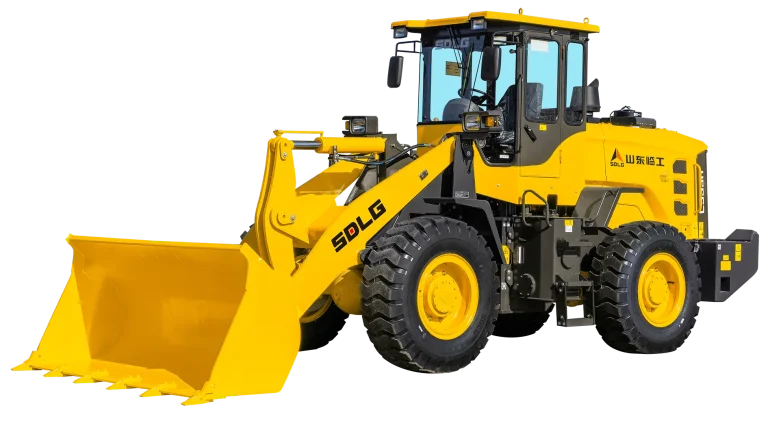

Wheel Loader

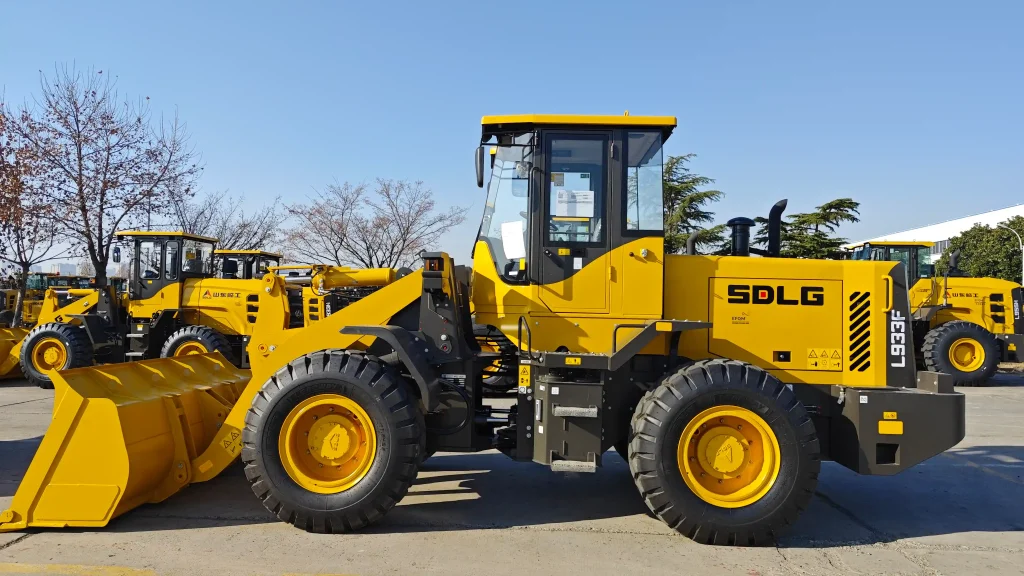

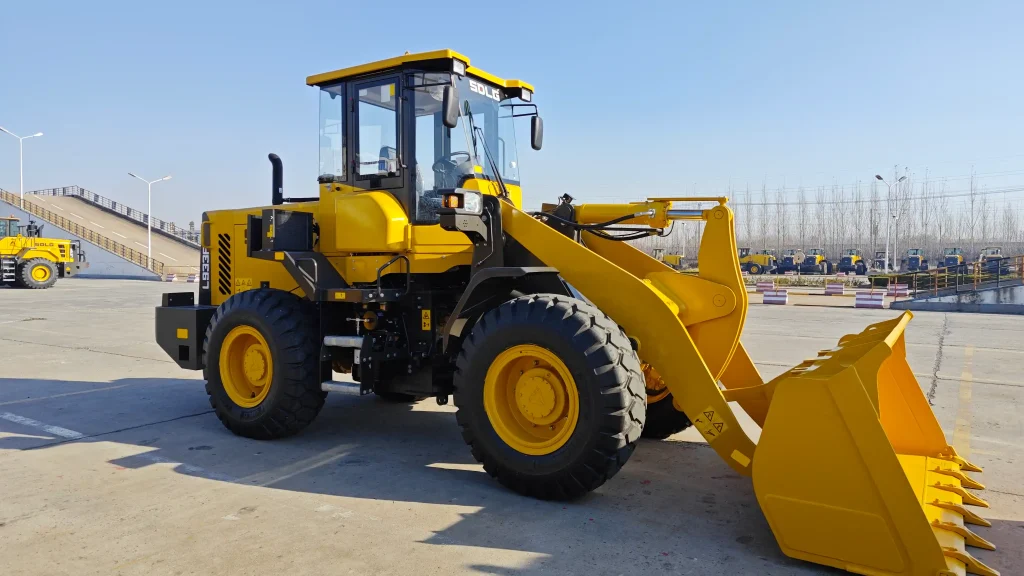

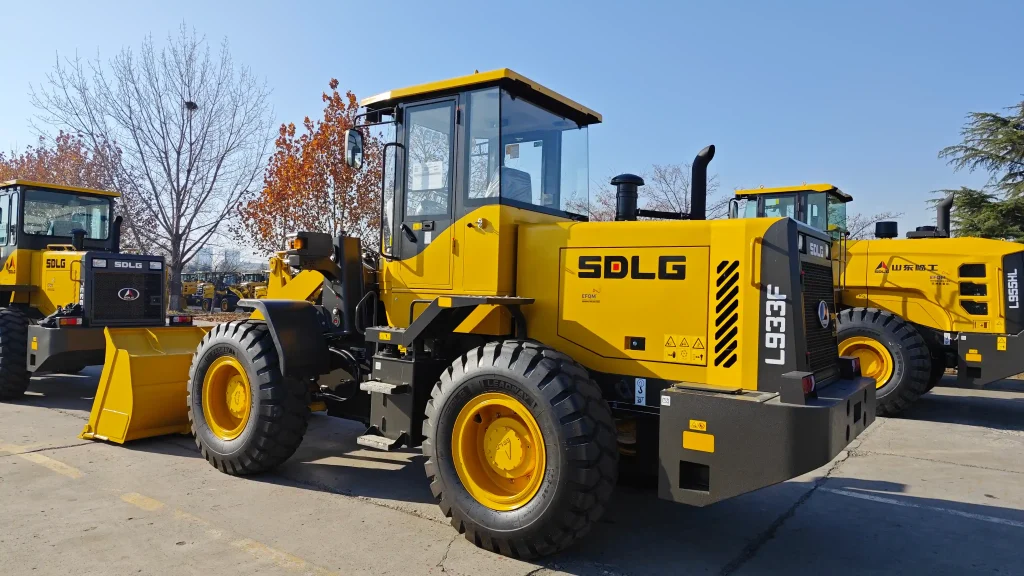

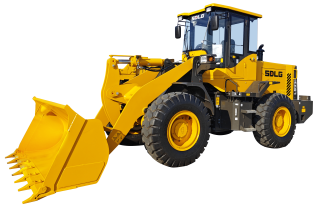

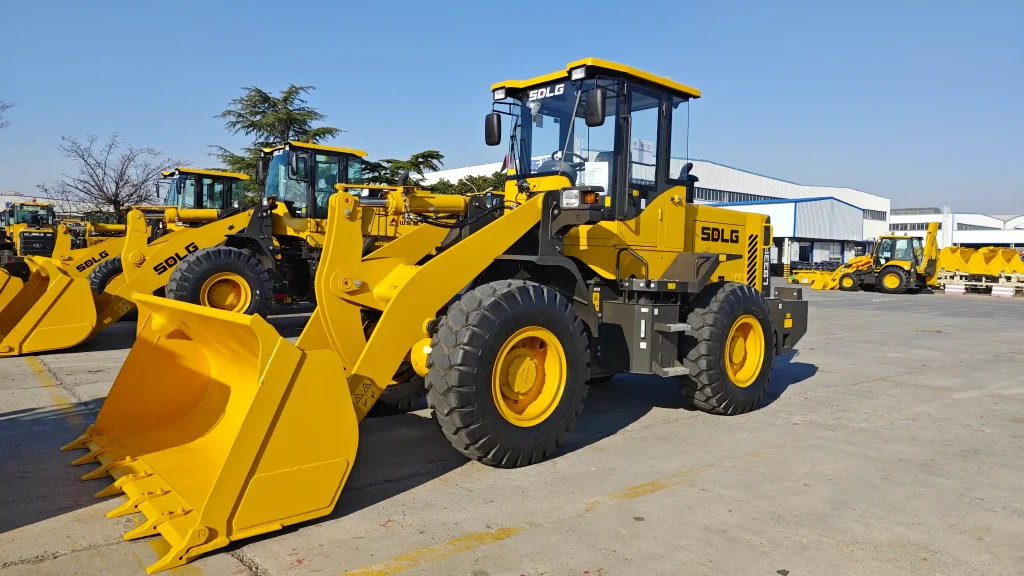

L933F
Standard bucket capacity,m³ (yd³)
1.8
Rated load,kg (lbs)
3000
Operating weight,kg (lbs)
10300
Rated power,kW (hp)/r/min
92
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- High Efficiency: WEICHAI Tier II Engine. The energy-saving low-speed engine fits well with the high-efficiency and realizes a comprehensive energy saving of more than 10%.
- High Reliability: Axis-Fixed power shift gearbox with high/low speed, F4/R2. Easy operation, high reliability, convenient maintenance.
- Heavy-Duty: SDLG Enhanced driving axle is the best in performance, with large bearing capacity to meet the driving force and escape ability of bad conditions. Stable and reliable performance, convenient operation and maintenance.
- Greater Carrying Capacity: Lift arm uses the lightweight technology, the effective load of each work cycle increased 2%, to achieve the energy saving.Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance, increases 10% in load capacity, improves the working efficiency greatly.
Technical Parameter
| Rated Load (kg) | 3000 |
| Length×Width×Height (mm) | 7110x2520x3240 |
| Wheel Base (mm) | 2850 |
| Max.Dumping Height (mm) | 2950 |
| Dumping Distance (mm) | 1050 |
| Steering Angel (°) | 36 |
| Emission Standard | GB20891-2007 (stageII) |
| Max.Tractive Force (kN) | ≥96 |
| Max.Breakout Force (kN) | ≥96 |
| Fuel Tank Capacity (L) | 160 |
| Standard Bucket Capacity (m³) | 1.8 |
| Operating Weight (kg) | 10300 |
| Rated Power (kW) | 92 |
| Engine Model | Wechai WP6G125E22 |
