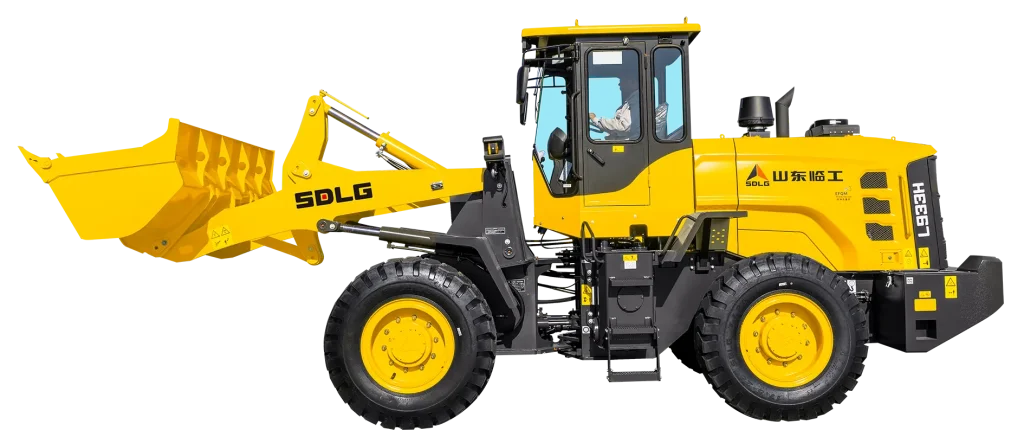

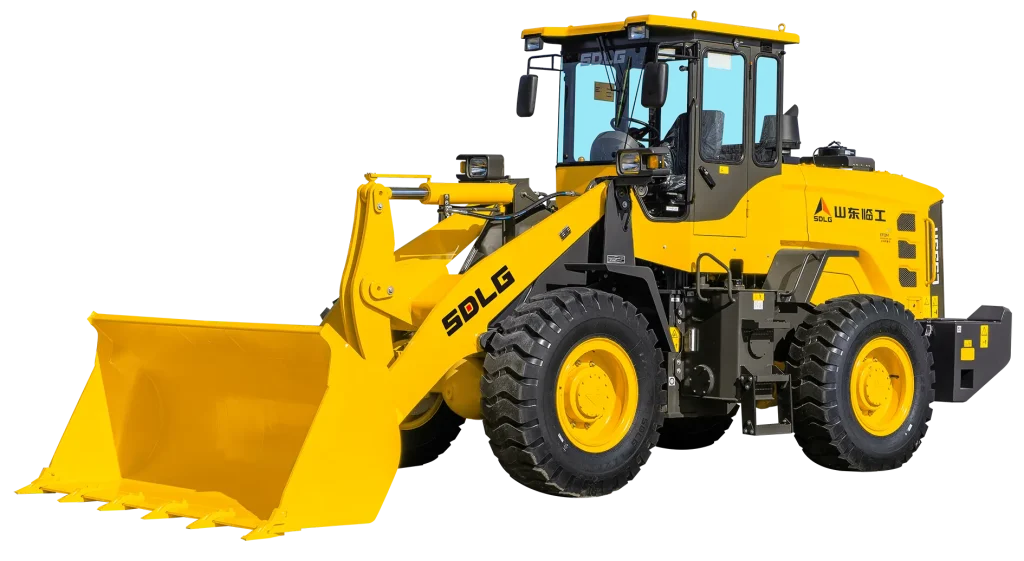

Wheel Loader
L933H (T3)
Standard bucket capacity,m³ (yd³)
1.8-2.5
Rated load,kg (lbs)
3000
Operating weight,kg (lbs)
10100
Rated power,kW (hp)/r/min
92
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- The L933H is a cost-effective model with a medium-short wheelbase, ideal for bulk material handling. By comprehensively upgrading the design and manufacturing standards of key components, the machine achieves enhanced reliability and efficiency. Boasting strong breakout force, a small turning radius, flexible operation, and high working efficiency, it is widely used in ports, construction sites, sand and gravel yards, lumber yards, and other scenarios.
Technical Parameter
| Rated Load (kg) | 3000 |
| Length×Width×Height (mm) | 7110×2520×3240 |
| Wheel Base (mm) | 2850 |
| Max.Dumping Height (mm) | 2950 |
| Dumping Distance (mm) | 1050 |
| Steering Angel (°) | 36 |
| Emission Standard | Brazil T3 |
| Max.Tractive Force (kN) | ≥90 |
| Max.Breakout Force (kN) | 100±3 |
| Fuel Tank Capacity (L) | 160 |
| Standard Bucket Capacity (m³) | 1.8-2.5 |
| Operating Weight (kg) | 10100 |
| Rated Power (kW) | 92 |
| Engine Model | Yuchai YCA05K125-M301 |
