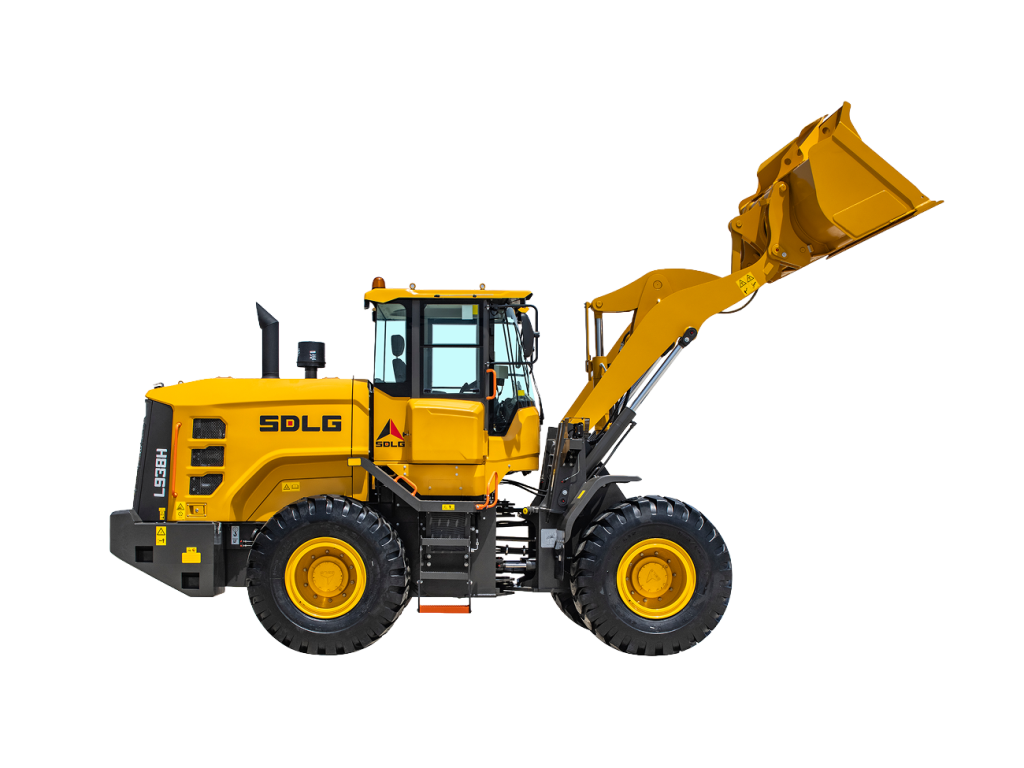

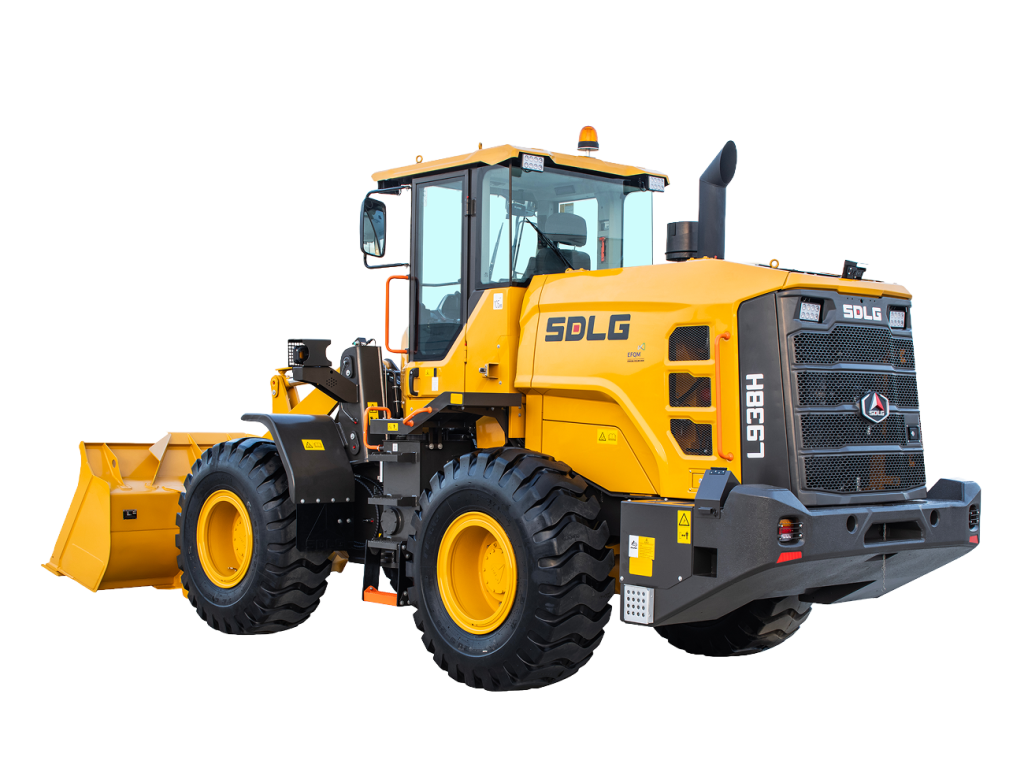

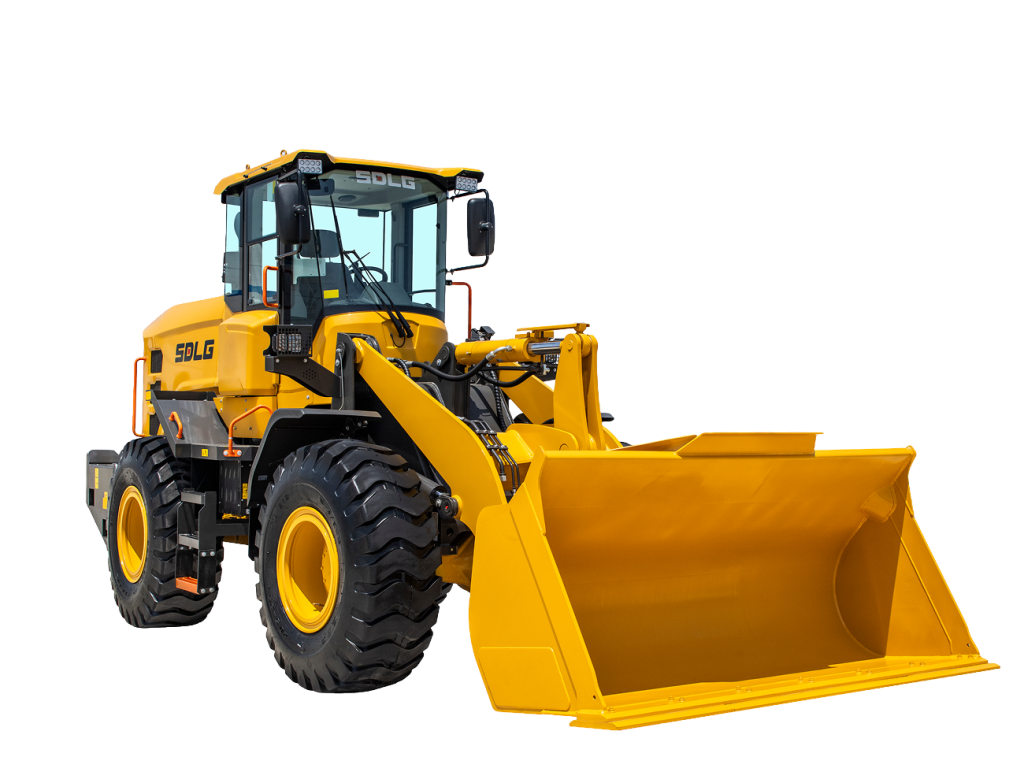

Wheel Loader
L938H（Stage V)
Standard bucket capacity,m³ (yd³)
2.1(2.7)
Rated load,kg (lbs)
3,500 (7,716)
Operating weight,kg (lbs)
13,300 (29,321)
Rated power,kW (hp)/r/min
129(175)
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- The L938H is equipped with automatic transmission and large 20.5-25 tires, transmitting power reliably.
- The full variable hydraulic system decreases overflow loss and fuel consumption.
- Hydraulic-driven reversible cooling fan optimizes cooling and engine efficiency by varying the fan speed to maintain the appropriate water and oil temperatures.
- Pilot single handle with FNR, KD function, and attachments quick connect function reduces operator fatigue and improves productivity.
- ROPS&FOPS certified cab with expanded glass viewing area, rear-view camera, and four LED working lights.
- All pertinent information is monitored by the conveniently located screen within the operator’s field of vision.
- Engine and daily maintenance points are easily accessible through the wide-opening rear hood.
Technical Parameter
| Standard bucket capacity,m³ (yd³) | 2.1(2.7) |
| Rated load ,kg (lbs) | 3,500 (7,716) |
| Operating weight ,kg (lbs) | 13,300 (29,321) |
| Engine | Cummins |
| Rated power ,kW (hp) | 129(175) |
| Rated engine speed ,rpm | 2200 |
| Engine displacement,ml (in³） | 6700 (408) |
| Speed at Fl /Rl,km/h (mph) | 0-8 (0-5.0) |
| Speed at F2/R2,km/h (mph) | 0-13 (0-8.1 ) |
| Speed at F3/R3,km/h (mph) | 0-28 (0-17.4 |
| Speed at F4,km/h (mph) | 0-39.5 (0-24.5) |
| Breakout force,kN ( lbf ) | 80 (17,985) |
| Tire size | 20.5-25 |
| Fuel tank,L (gal) | 200(44) |
| Overall shipping size (L • W • H)，mm (ft in) | 7,700(25’3.1″)*2,616(8’7″)*3,400 (11’1.9″) |
| A Wheelbase ,mm (ft in) | 2,850 (9’4.2″) |
| B Ground clearance ,mm (ft in) | 440(1’5.3″) |
| C Reach at max. height ,mm (ft in) | 1,210 (3’11.6″) |
| D Dumping angle ,° | 45 |
| E Height at bucket pin ,mm (ft in) | 3,850(12’7.6″) |
| F Dumping height ,mm (ft in) | 2,750(9’0.6″) |
| G Bucket rollback at ground level | 43.5 |
| I Wheel tread ,mm (ft in) | 1,965(6’5.4″) |
| J Articulation angle ,° | 37 |
| K Turning radius at over bucket,mm (ft in) | 6,195 (20’3.9″) |
| M Turning radius at inside of tires,mm (ft in) | 5,300 (17’4.7″) |
