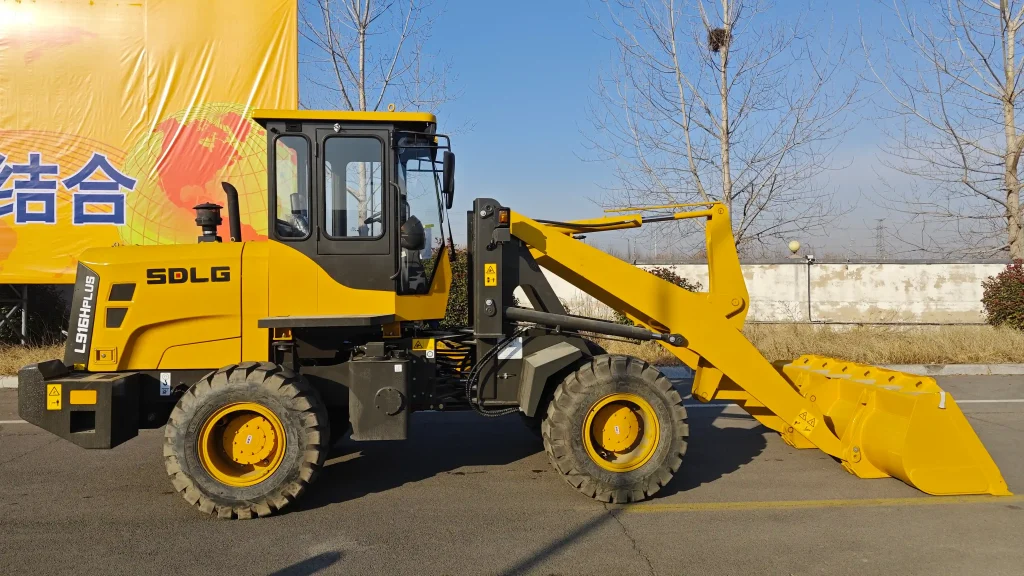

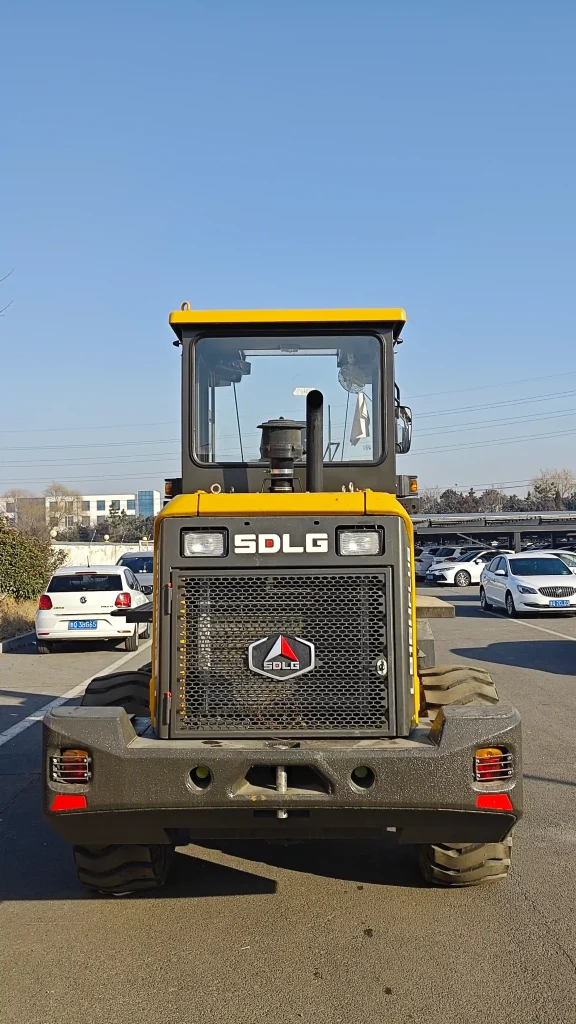

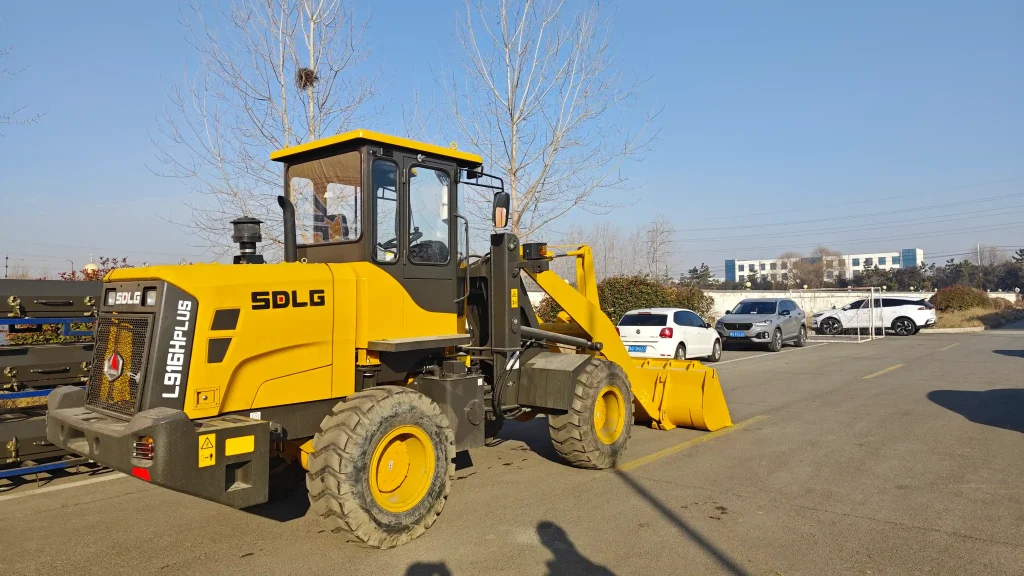

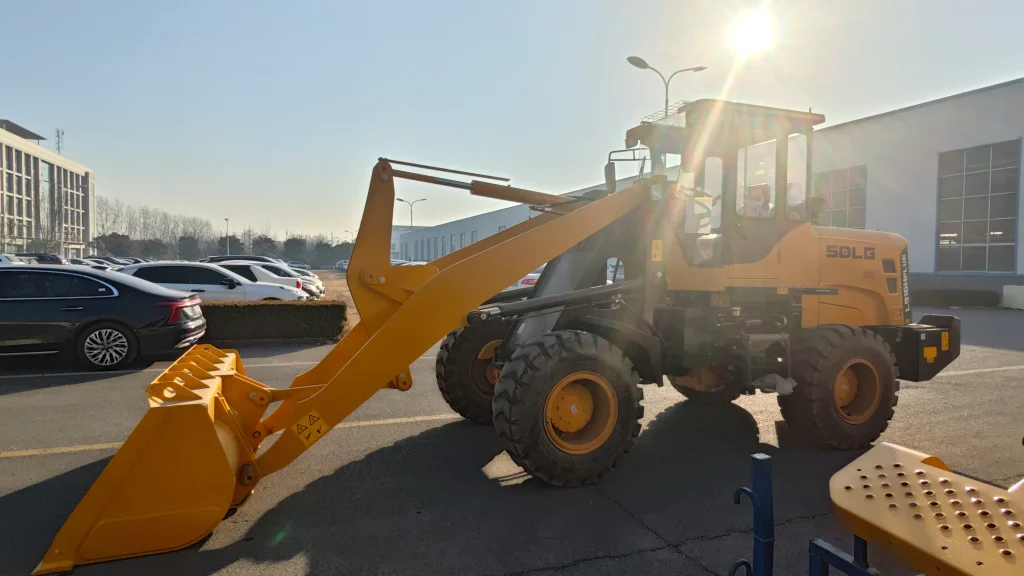

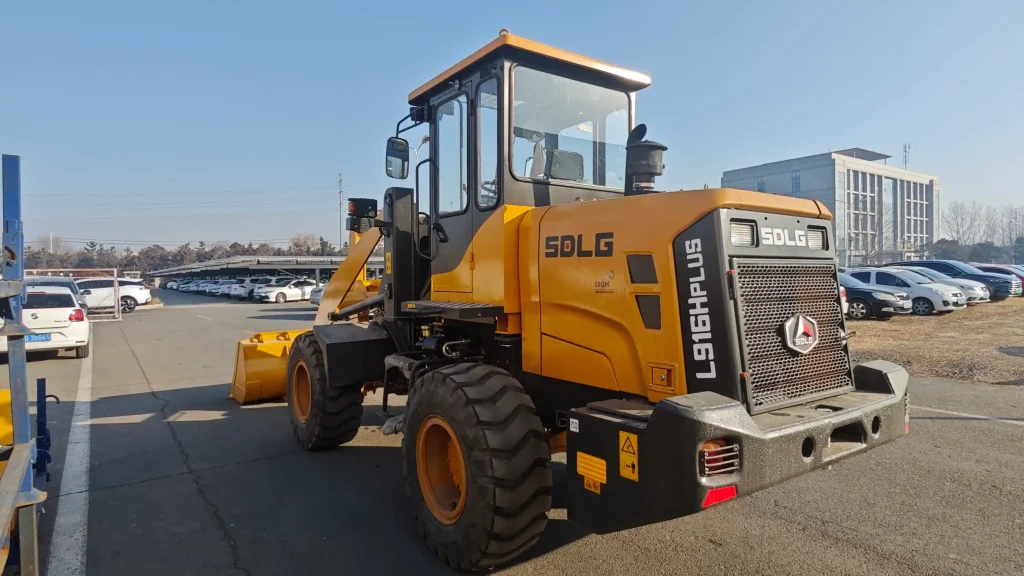

Wheel Loader
L916H plus
Standard bucket capacity,m³ (yd³)
2.0
Rated load,kg (lbs)
1500
Operating weight,kg (lbs)
6565
Rated power,kW (hp)/r/min
76
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- RELIABILITY: Quanchai 4C6 engine, China phase Ⅱ emission, engine power was increased 22% and up to 76KW. SDLG customized & reinforced fixed shaft power shift transmission with F4&R4 gears. SDLG customized & reinforced, one-stage planetary hub reduction drive axle.
- HIGH EFFICIENCY: Max. dumping height up to 4100mm, and improving the rated load capacity up to 1500kg （Full turn). Can easily running the standard 2.0m³ grain bucket in agricultural product loading applications. Long wheelbase ensures the stability and efficiency. stably running and efficient operation of the whole machine.
- COMFORT: Equipped with no obstructed view skylight, good view of material unloading under ultra-high working conditions. The cab space is large and the sealing is good. Engine, cab, and seat three-stage shock absorption
Technical Parameter
| Rated Load (kg) | 1500 |
| Length×Width×Height (mm) | 7130×2140×3046 |
| Wheel Base (mm) | 2600 |
| Dumping Distance (mm) | 1095 |
| Steering Angel (°) | 35 |
| Emission Standard | GB 20891-2007(China phaseⅡ) |
| Max.Tractive Force (kN) | ≥56 |
| Max.Breakout Force (kN) | 49 |
| Fuel Tank Capacity (L) | 90 |
| Standard Bucket Capacity (m³) | 2.0 |
| Operating Weight (kg) | 6565 |
| Rated Power (kW) | 76 |
| Engine Model | Quanchai 4C6-88M22 |
