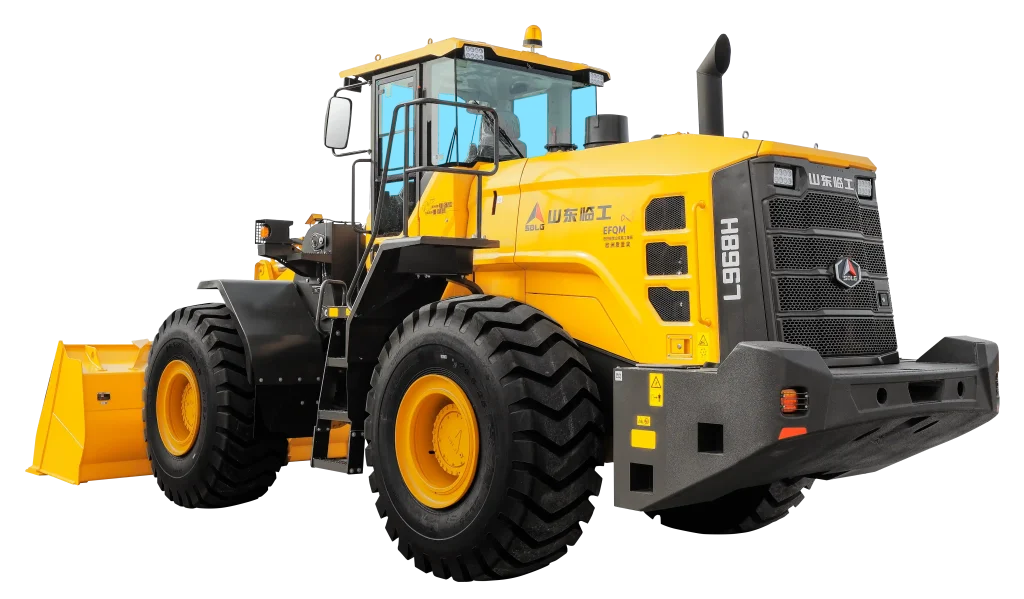

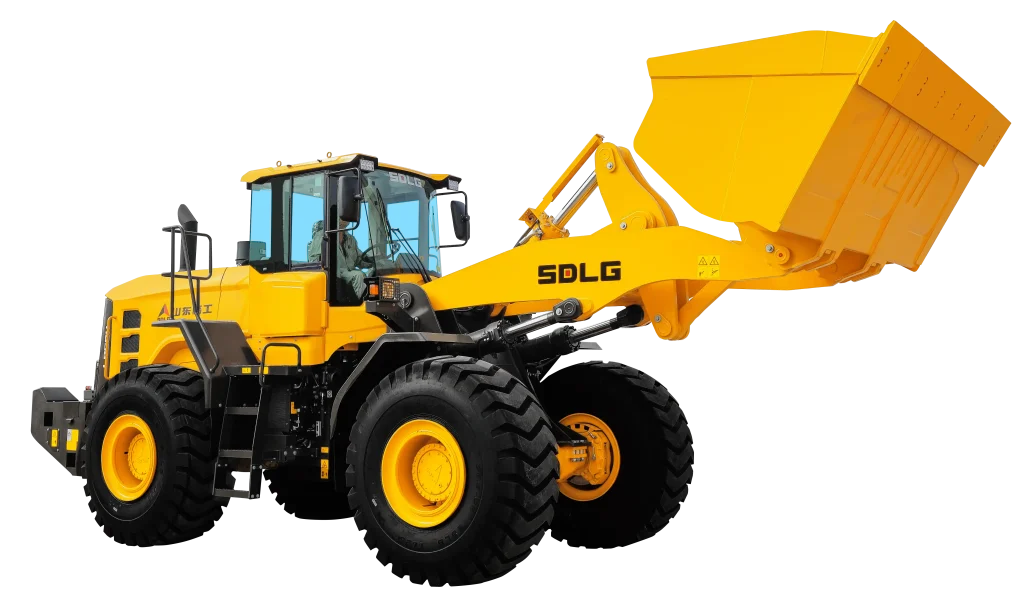

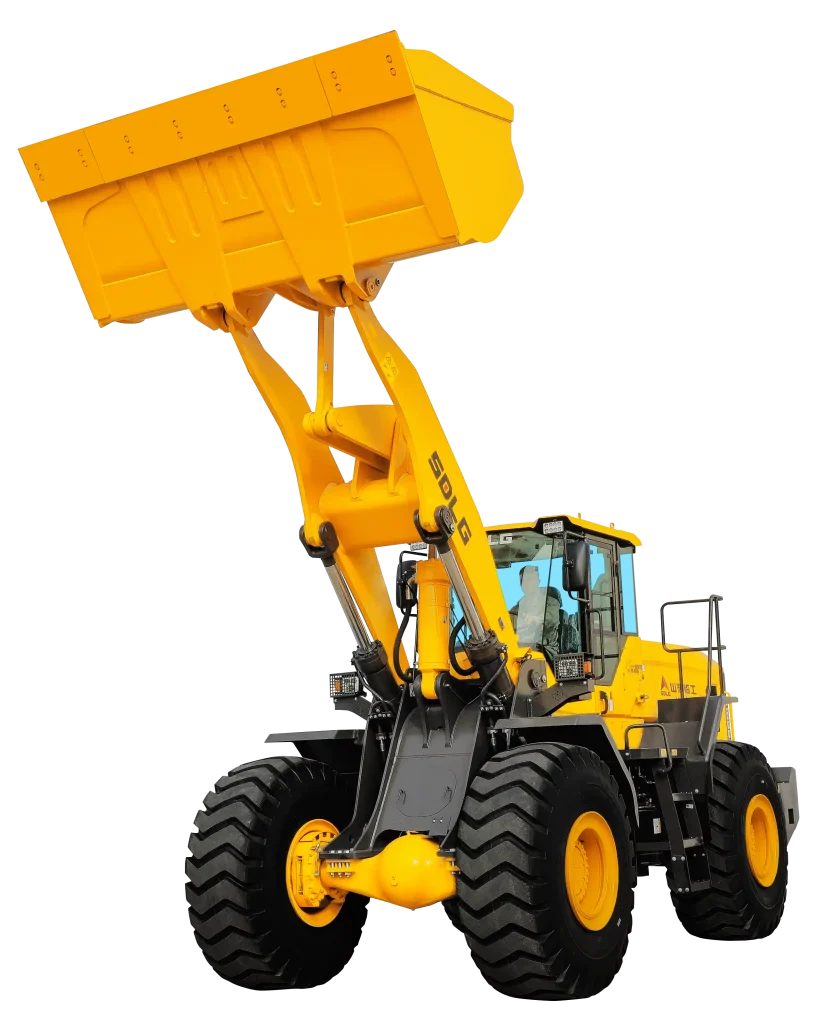

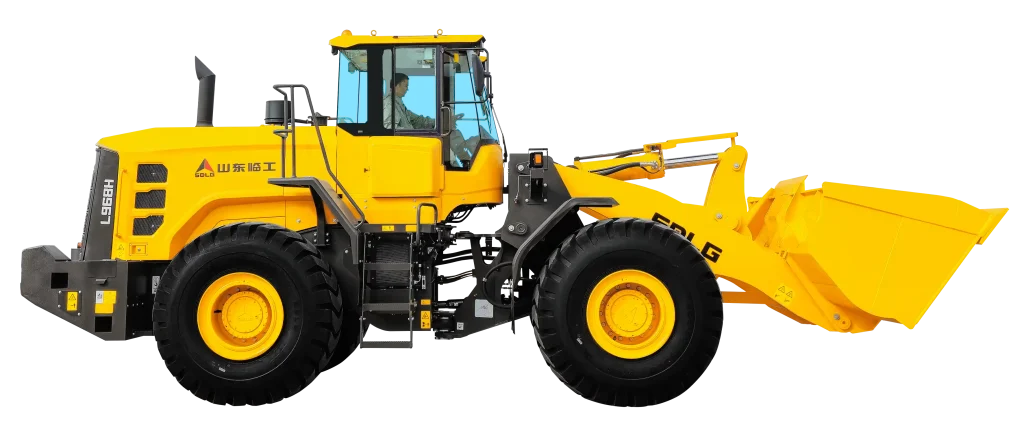

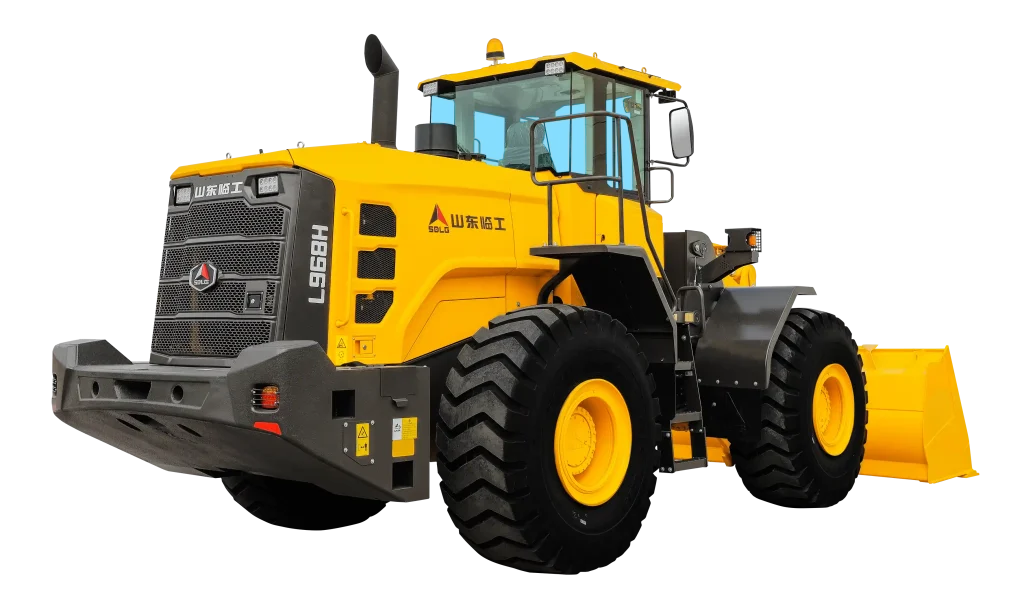

Wheel Loader
L968H
Standard bucket capacity,m³ (yd³)
3.0～6.0
Rated load,kg (lbs)
6300
Operating weight,kg (lbs)
20850
Rated power,kW (hp)/r/min
178
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- The L968H is a long-wheelbase loader with a brand-new appearance.
- This product features a long wheelbase and strong lifting force, capable of excavating materials such as metal ores, metal ore powder, and large stones.
- It is widely applied in working conditions such as mining, ports, docks, steel mills, and large-scale projects.
Technical Parameter
| Rated Load (kg) | 6300 |
| Length×Width×Height (mm) | 8870ⅹ2925ⅹ3510 |
| Wheel Base (mm) | 3500(1750|1750) |
| Max.Dumping Height (mm) | 3170 |
| Dumping Distance (mm) | 1230 |
| Steering Angel (°) | 38 |
| Emission Standard | GB 20891-2014 (stage Ⅲ) |
| Max.Tractive Force (kN) | 180 |
| Max.Breakout Force (kN) | ≥215 |
| Fuel Tank Capacity (L) | 350 |
| Standard Bucket Capacity (m³) | 3.0～6.0 |
| Operating Weight (kg) | 20850 |
| Rated Power (kW) | 178 |
| Engine Model | Weichai WP10G240E342 |
