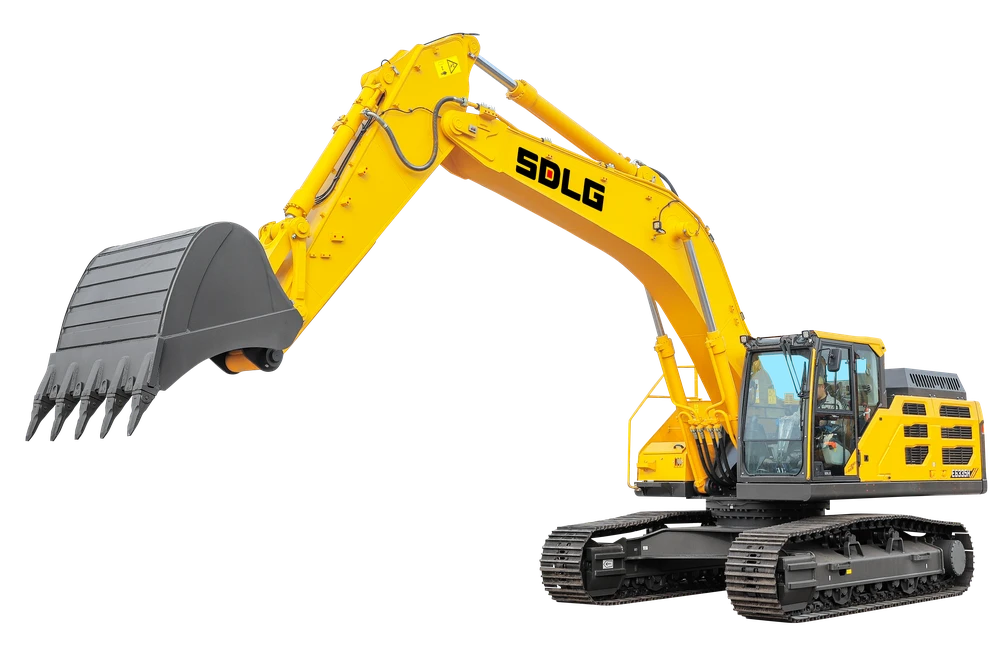

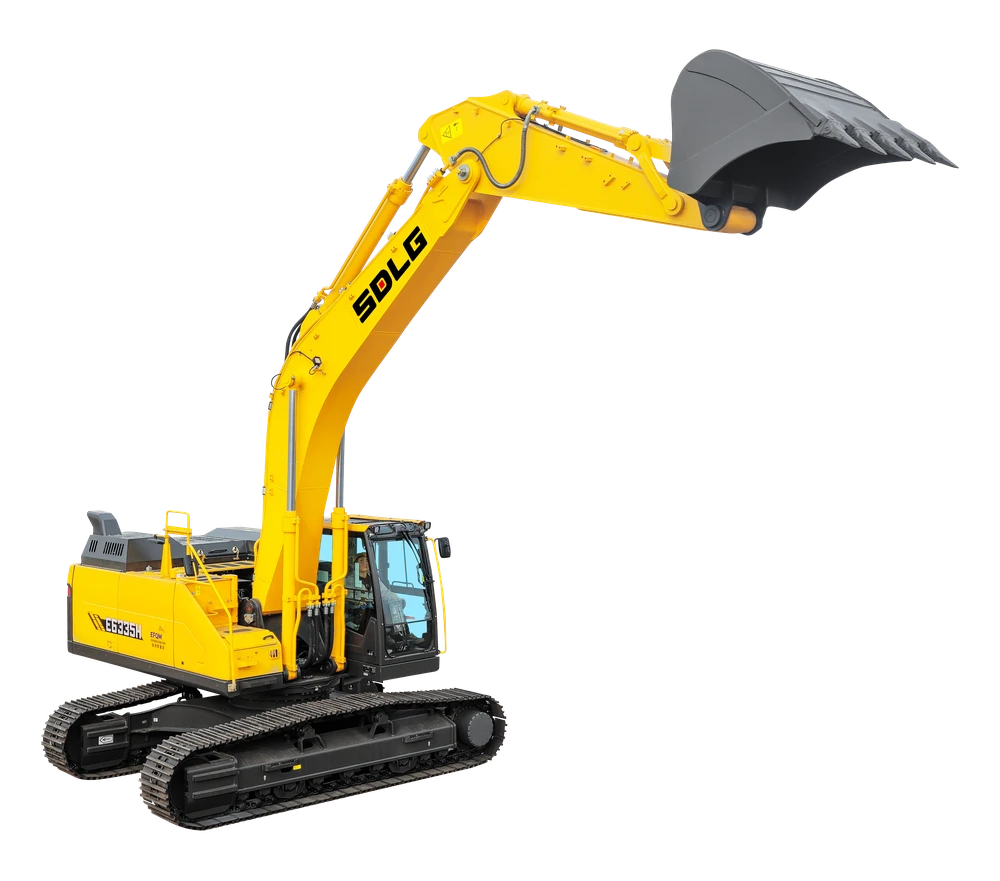

Excavator
E6335H
Operating weight,kg (lbs)
34800kg
Bucket capacity (m³)
1.9m³
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- ENGINE
- DDE BFM8 Tier 2 engine with Deutz technology.
- Electronic unit pump as injector.
- Fuel consumption is as low as common rail type but fuel quality tolerance is as good as mechanical injection pump.
- 3-stage fuel filters as default.
- CABIN
- New generation H series excavator with new generation cabin
- 8-inch LCD screen
- ROPS cabin
- Air suspension seat
- PUMP
- Hengli Main pump
- VALVE
- Hengli main
- control valve
- SWING MOTOR
- Hengli swing motor
- DRIVING MOTOR
- Eddie driving motor
- ELECTRICAL CONTROL SYSTEM
- Electric-Hydraulic control system
- Intelligence control mode
- Remote failure shoot and software OTA(with T-box)
- High efficiency，low fuel consumption
Technical Parameter
| Operating Weight (kg) | 34800kg |
| Bucket capacity (m³) | 1.9m³ |
| Bucket capacity range | 1.6~2.0 |
| Average ground pressure | 63.8mm |
| Slewing speed | 10.7r/min |
| Traveling speed (low/high) | 3.0/5.0km/h |
| Maximum digging force | 222.6kN |
| Altitude | 2000m |
| Wading depth | 815mm |
| Engine model/Drive Motor Model | BFM8-29T2 |
| Engine power | 215KW |
| Maximum flow rate | 2×290+25.5L/min |
| Fuel specifications and filling amount | 590L |
| Overall length | 11000mm |
| Overall width | 3190mm |
| Overall height | 3450mm |
| Boom length | 6200mm |
| Wheel track | 2590 |
| Arm length | 3200mm |
| wheelbase | 4130mm |
| Crawler wheelbase/Wheelbase | 4130mm |
| Maximum digging radius | 10860mm |
| Maximum digging depth | 7220mm |
| Maximum discharge height | 7090mm |
| Overall length during transfer | 11000mm |
| Shovel width (with band edge) | 1670mm |
| Maximum digging depth under length of bottom surface of 2.5m | 7025mm |
| Maximum digging height | 10045mm |
| Contour dimension of complete machine (transfer position) | 11000×3190×3450mm |
| Overall width of upper assembly | 2950 |
| Overall width of chassis | 3190mm |
| Overall height to cab top | 3150mm |
| Rear slewing radius | 3530mm |
| Overall height to hood top | 2885mm |
| Ground clearance of upper assembly | 1215mm |
| Overall length of crawler | 5070mm |
| Wheel track of crawler/Wheel track | 2590mm |
| Track shoe width | 600mm |
| Minimum ground clearance | 520mm |
| Overall height of working mechanism during transfer | 3450mm |
| Maximum digging radius of reference ground | 10650mm |
| Maximum vertical digging depth | 5420mm |
| Minimum front turning radius | 4180mm |
