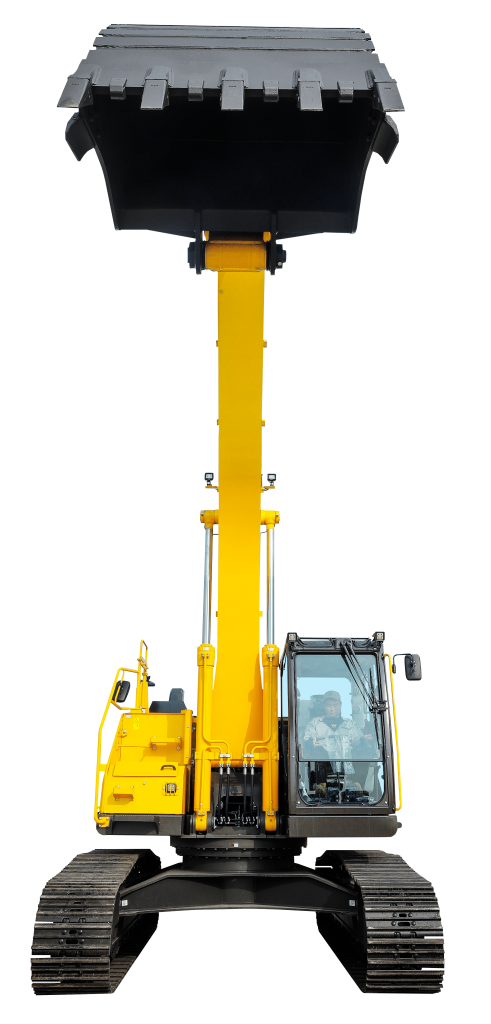

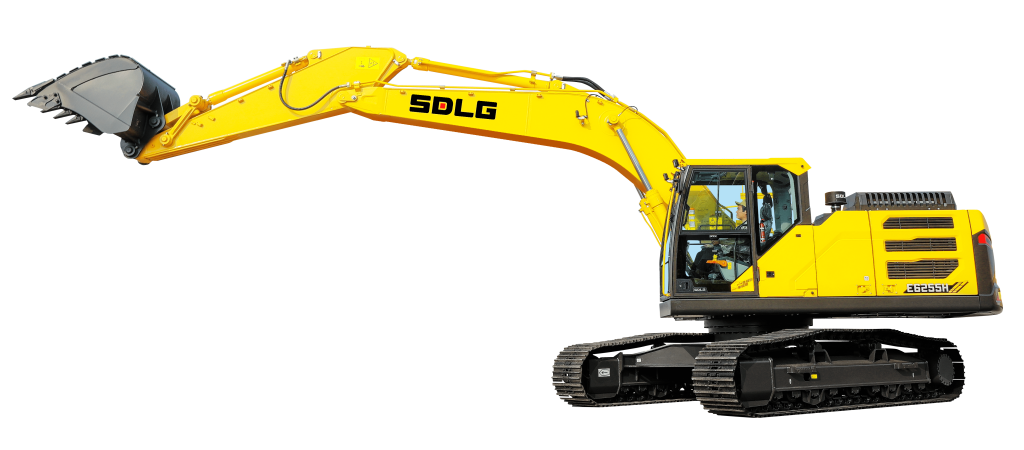

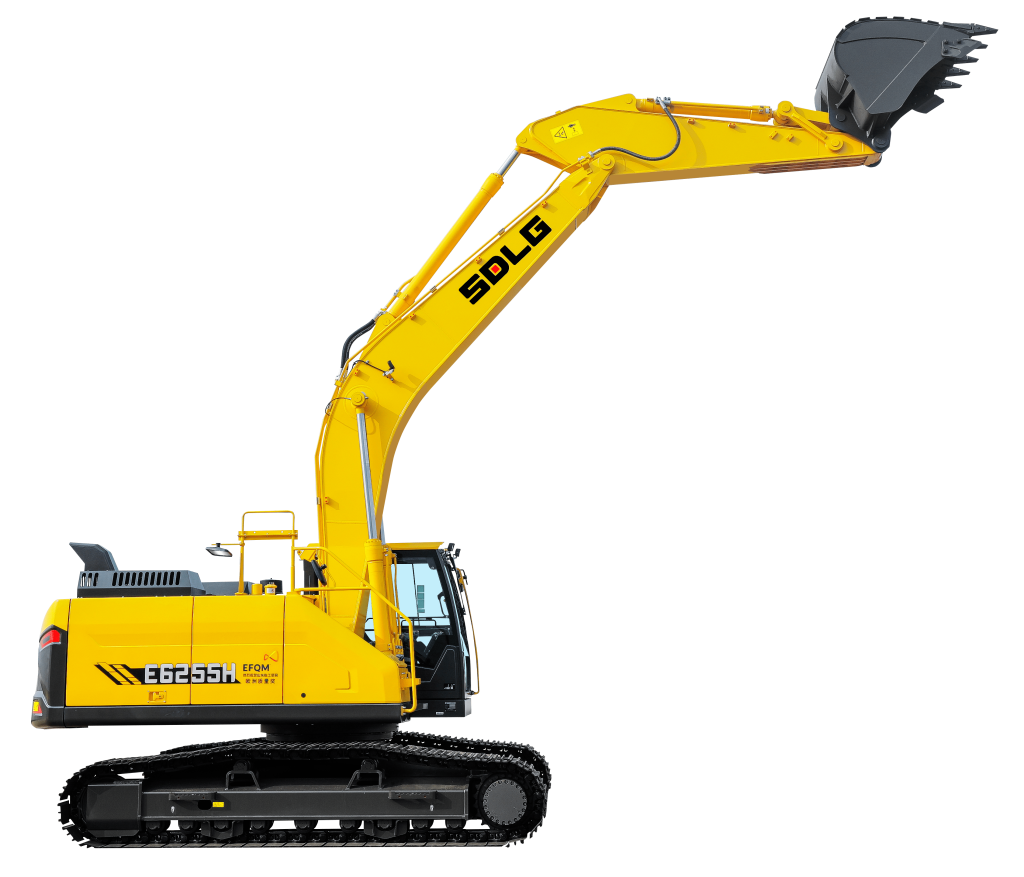

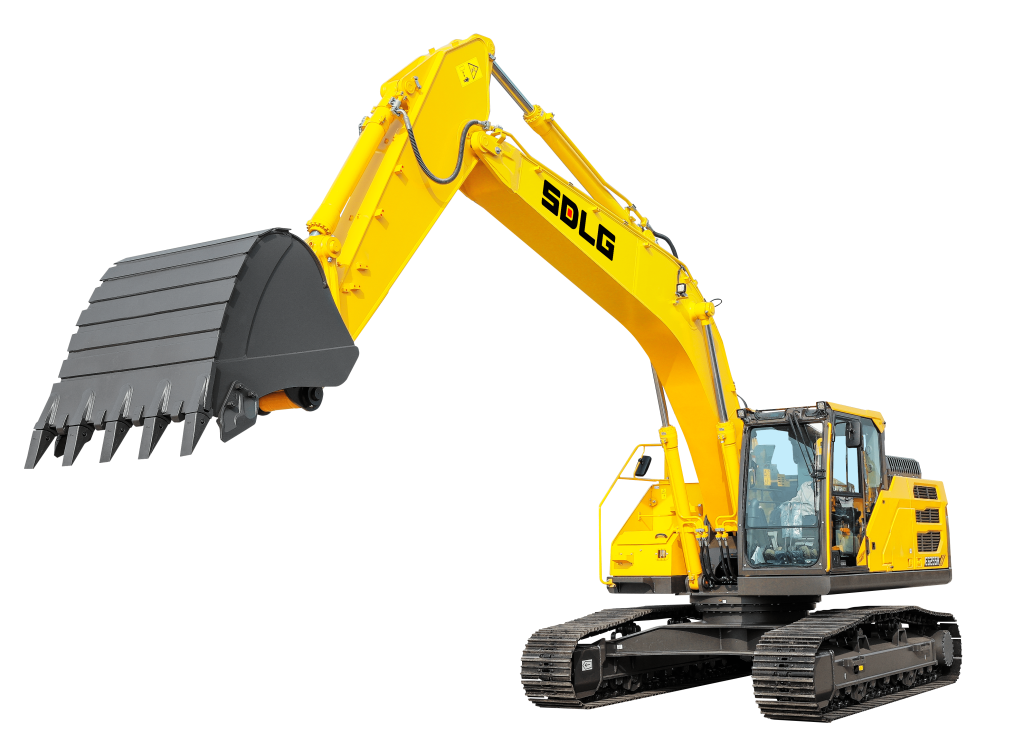

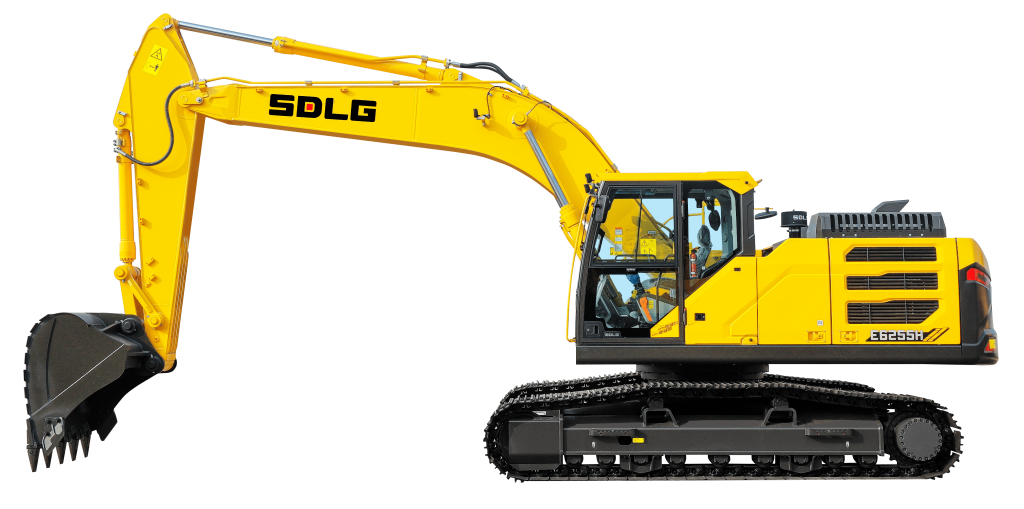

Excavator
E6255H（T4）
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
E6255H is a newly developed H series comprehensive working condition product of SDLG on 25T product platform, the whole machine power system is fuel-efficient and durable, equipped with advanced all-electronic control hydraulic system, with fast response speed, coordinated composite action, and high working efficiency; New H series high-end cab, with wide field of vision, and comfortable ride, which makes it have an excellent working performance in the working conditions of earthmoving, crushed stone, and urban construction.
Technical Parameter
| Operating Weight (kg) | 25800 |
| Engine Model | Cummins B6.7CS4 204C |
| Rated Power (kW) | 150 |
| Bucket capacity (m³) | 1.5 |
| Length×Width×Height (mm) | 10280×3190×2990 |
| Emission Standard | GB 20891-2014(stage Ⅳ) |
| Swing Speed (r/min) | 11.3 |
| Traveling Speed (km/h) | 3.3/5.5 |
| Max. Digging Radius (mm) | 10260 |
| Max. Digging Depth (mm) | 6980 |
| Max. Digging Height (mm) | 5970 |
| Fuel Tank Capacity (L) | 520 |
