Excavator

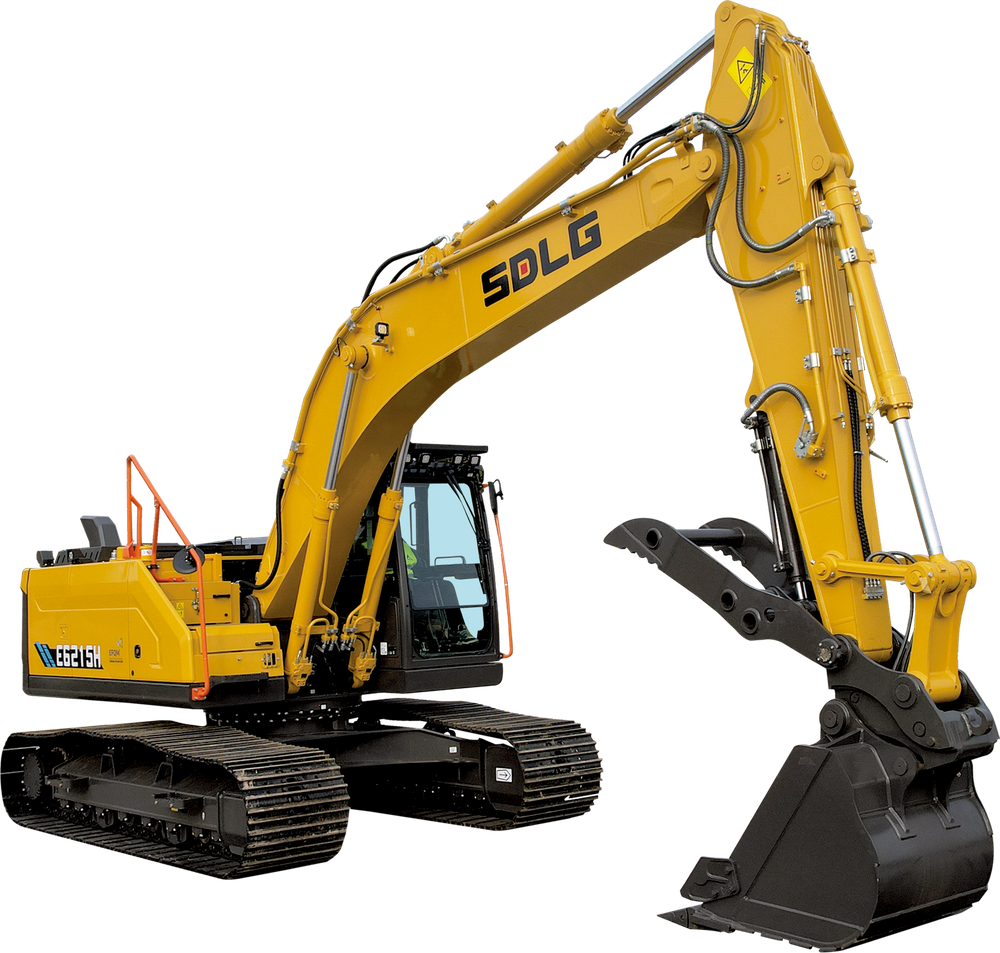

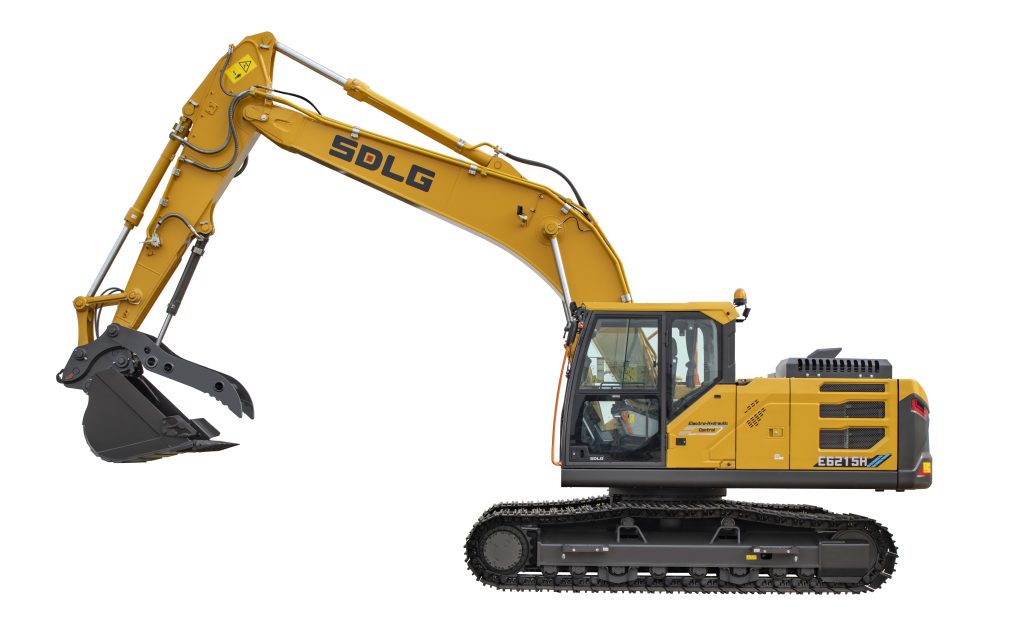

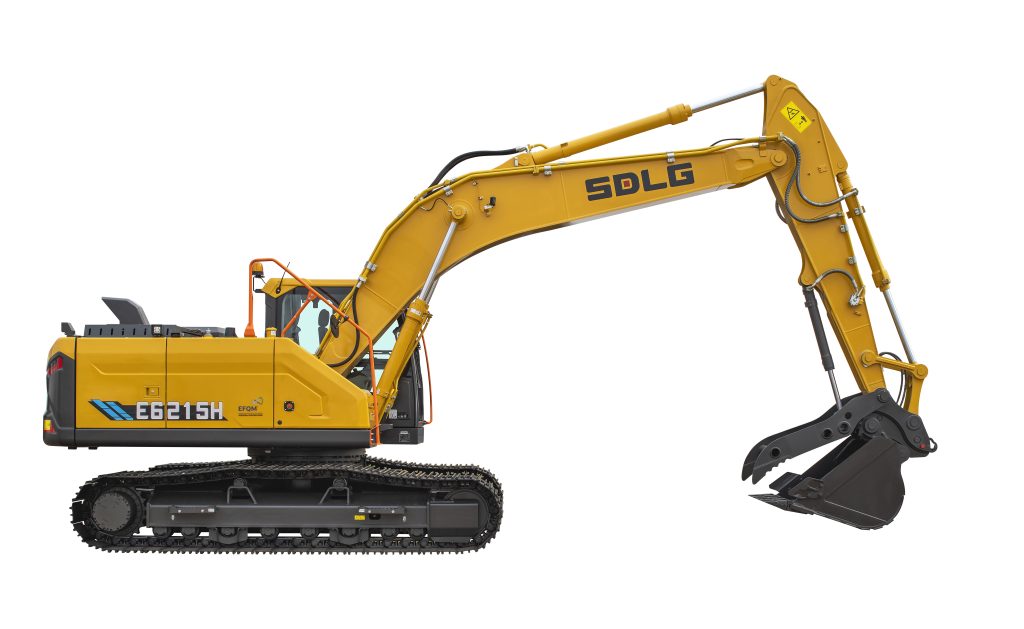

E6215H（Stage V）
Operating weight,kg (lbs)
23,200(51,147)
Rated power,kW (hp)/r/min
129.4(173.5)
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- The E6215H offers SDLG’s exclusive electronic control system, which is easily customized t accommodate different applications and operating habits; offering various working modes for improving productivity and reducing fuel consumption.
- Perkins engine features passive regeneration technology, automatically removing the diesel particulates without unnecessary downtime.
- A double-pump hydraulic system ensures ample flow to meet all attachment needs, the 8-inch touch screen provides complete operator control to adjust auxiliary pressures and flow.
- Cab is equipped with optimized air conditioning and air suspension seat with heating and ventilation.
- Safety features include rear and right side cameras, ROPS certified cab, beacon, audible travel alarm, and dual emergency shut-off switches.
- The reinforced chassis, thickened track shoes, and double support structure drag sprockets mitigate downtime and extend lifespan.
Technical Parameter
| Operating weight,kg (lbs) | 23,200(51,147) |
| Engine Model | Perkins 1204J |
| Rated power,kw (hp) | 129.4(173.5) |
| Rated engine speed,rpm | 2200 |
| Displacement,ml (in³) | 4,400(268.5) |
| Pump capacity,L/min (gal/min) | 2*230+18(2*60.8+4.8) |
| Main relief set pressure,bar (psi) | 340(4,930)/355(5,148) |
| Max. digging force of bucket,kN (lbf) | 138.5(31,136) |
| Max. digging force of arm,kN (lbf) | 99.9(22,458) |
| Travel low speed,km/h (mi/h) | 3.5(2.2) |
| Travel high speed,km/h (mi/h) | 5.7(3.5) |
| Gradeability,° | 35 |
| Swing speed,r/min | 12.1 |
| Ground pressure,kPa (psi) | 35.1(5.1) |
| Fuel tank,L (gal) | 390(103) |
| Boom length,mm (ft in) | 5,700(18’8.4″) |
| Arm length,mm (ft in) | 2,900(9’6.2″) |
| Bucket capacity,m³ (yd³) | 1.0(1.31) |
| A Max. digging reach,mm (ft in) | 9,940(32’7.3″) |
| B Max. digging reach on ground,mm (ft in) | 9,750(31’11.9″) |
| C Max. cutting height,mm (ft in) | 9,450(31′) |
| D Max. dumping height,mm (ft in) | 6,650(21’9.8″) |
| E Max. digging depth,mm (ft in) | 6,730(22’1″) |
| F Max. digging depth (horizontal 8ft),mm (ft in) | 6,510(21’4.3″) |
| G Max. vertical wall digging depth,mm (ft in) | 5,830(19’1.5″) |
| H Overall shipping height,mm (ft in) | 2,940(9’7.7″) |
| I Tail swing radius,mm (ft in) | 2,880(9’5.4″) |
| J Min. front swing radius,mm (ft in) | 3,650(11’11.7″) |
| K Undercarriage length,mm (ft in) | 4460(14’7.6″) |
| L Overall shipping length,mm (ft in) | 9,720(31’10.6″) |
| M Track width,mm (ft in) | 800(31.5″) |
| W Overall shipping width,mm (ft in) | 3,190(10’5.6″) |
