Excavator
E6215F
Operating weight,kg (lbs)
21700
Rated power,kW (hp)/r/min
123
Bucket capacity (m³)
1.05
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features

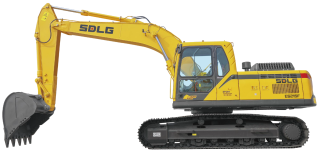

- SDLG E6215F is a medium-sized excavator with compound working conditions and negative flow control. Equipped with high strength chassis, heavy working device, optimized matching power hydraulic system, suitable for a variety of tough conditions. Widely used in construction site, municipal working, pipeline laying and earthwork work condition.
Technical Parameter
| Operating Weight (kg) | 21700 |
| Engine Model | FAW BF6M2012-17T2-PTO |
| Rated Power (kW) | 123 |
| Bucket capacity (m³) | 1.05 |
| Length×Width×Height (mm) | 9720×2990×2940 |
| Emission Standard | GB 20891-2007(stage II) |
| Swing Speed (r/min) | 12.1 |
| Traveling Speed (km/h) | 3.5/5.7 |
| Max. Digging Radius (mm) | 9940 |
| Max. Digging Depth (mm) | 6730 |
| Max. Digging Height (mm) | 5830 |
| Fuel Tank Capacity (L) | 350 |
