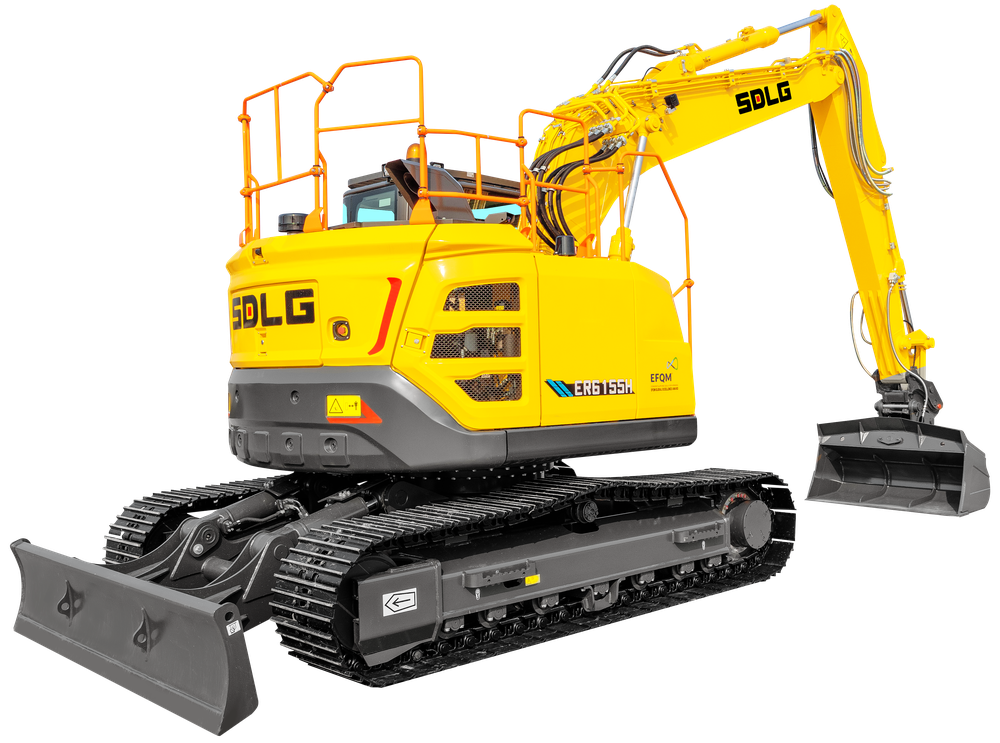

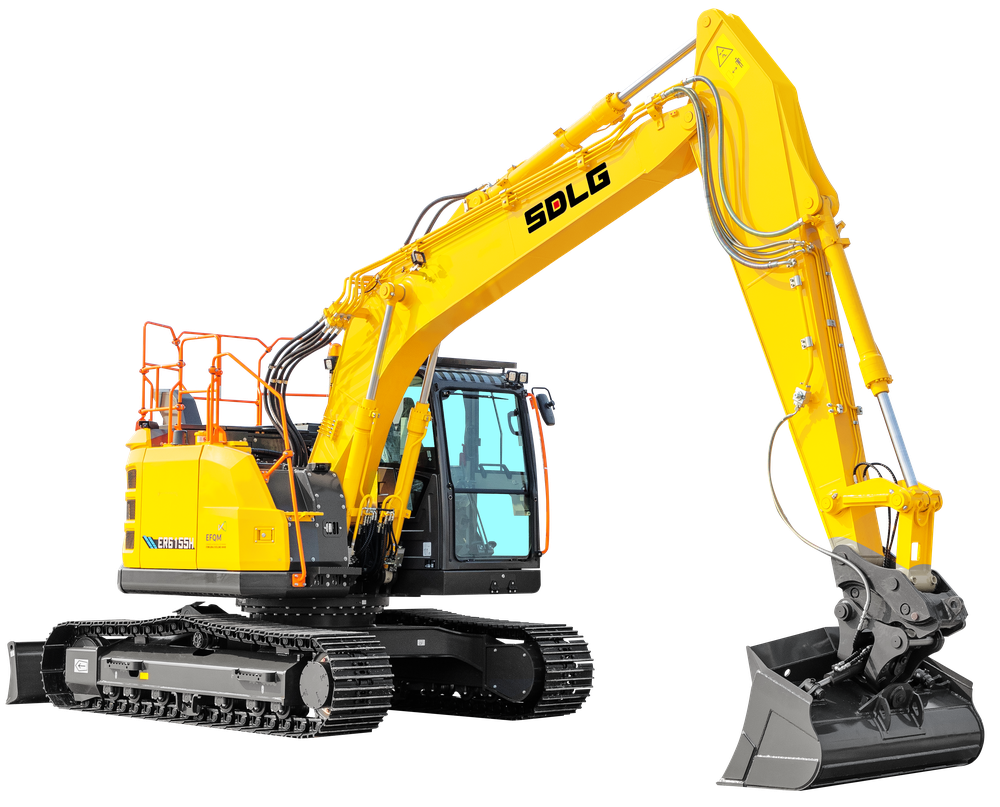

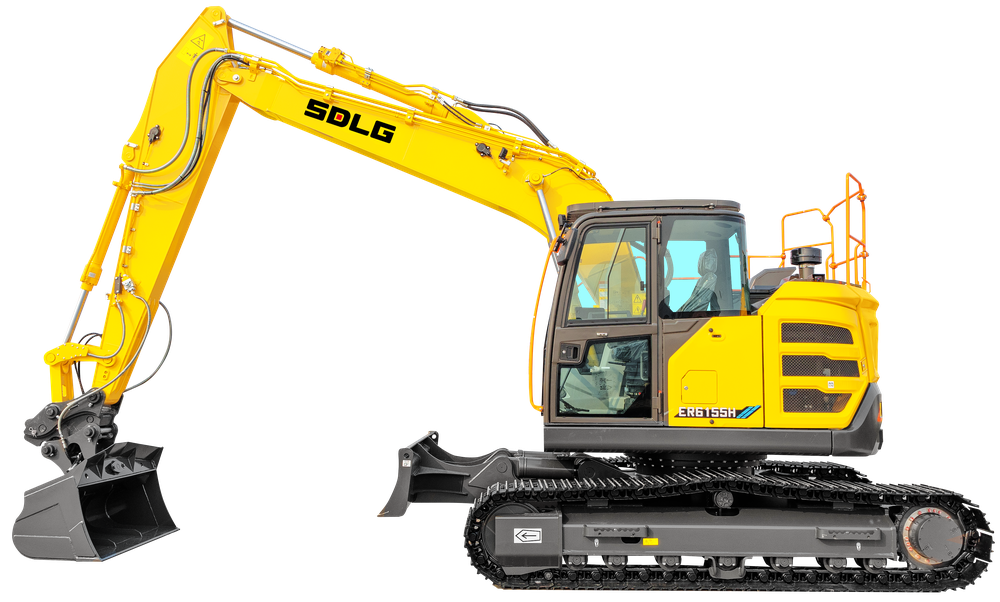

Excavator
ER6155H
Operating weight,kg (lbs)
15,200(33,510)
Rated power,kW (hp)/r/min
90(122)
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- The ER6155H offers SDLG’s exclusive electronic control system, which is easily customized to accommodate different applications and operating habits; offering various working modes for improving productivity and reducing fuel consumption.
- Equipped with an anti-digging cab function and a boom tilt back speed limit function to prevent materials from spilling into the cab and ensure the cleanliness of the cab and the safety of the driver.
- Perkins engine features passive regeneration technology, automatically removing the diesel particulates without unnecessary downtime.
- The short swing radius allows safe and concise operation in narrow spaces.
- Counterweight equipped with a rear side door, which is convenient for engine maintenance; DEF tank is located at a low position, and it can be filled while standing on the ground; Fuel pump is standard for easy refueling.
Technical Parameter
| Operating weight,kg (lbs) | 15,200(33,510) |
| Engine Model | Perkins 904J |
| Rated power,kw (hp) | 90(122) |
| Rated engine speed,rpm | 2400 |
| Displacement,ml (in³) | 3600(219.7) |
| Pump capacity,L/min (gal/min) | 2*130(2*34.3) |
| Main relief set pressure,bar (psi) | 355(5,148) |
| Max. digging force of bucket,kN (lbf) | 93.9(21,109) |
| Max. digging force of arm,kN (lbf) | 65(14,612) |
| Travel low speed,km/h (mi/h) | 3.5(2.2) |
| Travel high speed,km/h (mi/h) | 4.7(2.9) |
| Gradeability,° | 35 |
| Swing speed,r/min | 11 |
| Ground pressure,kPa (psi) | 45.3(6.6) |
| Fuel tank,L (gal) | 240(63.4) |
| Boom length,mm (ft in) | 4,600(15’1.1″) |
| Arm length,mm (ft in) | 2,500(8’2.4″) |
| Bucket capacity,m³ (yd³) | 0.55(0.72) |
| Overall shipping size,mm (ft in) | 7,480(24’6.5″)*2,500(8’2.4″)*2,745(9′) |
| A Max. digging reach,mm (ft in) | 8,430(27’7.9″) |
| B Max. digging reach on ground,mm (ft in) | 8,280(27’2″) |
| C Max. cutting height,mm (ft in) | 9,055(29’8.5″) |
| D Max. dumping height,mm (ft in) | 6,585(21’7.3″) |
| E Max. digging depth,mm (ft in) | 5,190(17’0.3″) |
| F Max. digging depth (horizontal 8ft),mm (ft in) | 4,970(16’3.7″) |
| G Max. vertical wall digging depth,mm (ft in) | 4,610(15’1.5″) |
| I Tail swing radius,mm (ft in) | 1,490(4’20.7″) |
| J Min. front swing radius,mm (ft in) | 2,240(7’4.2″) |
| K Undercarriage length,mm (ft in) | 3,740(12’3.2″) |
| M Track width,mm (ft in) | 500(1’7.7″) |
