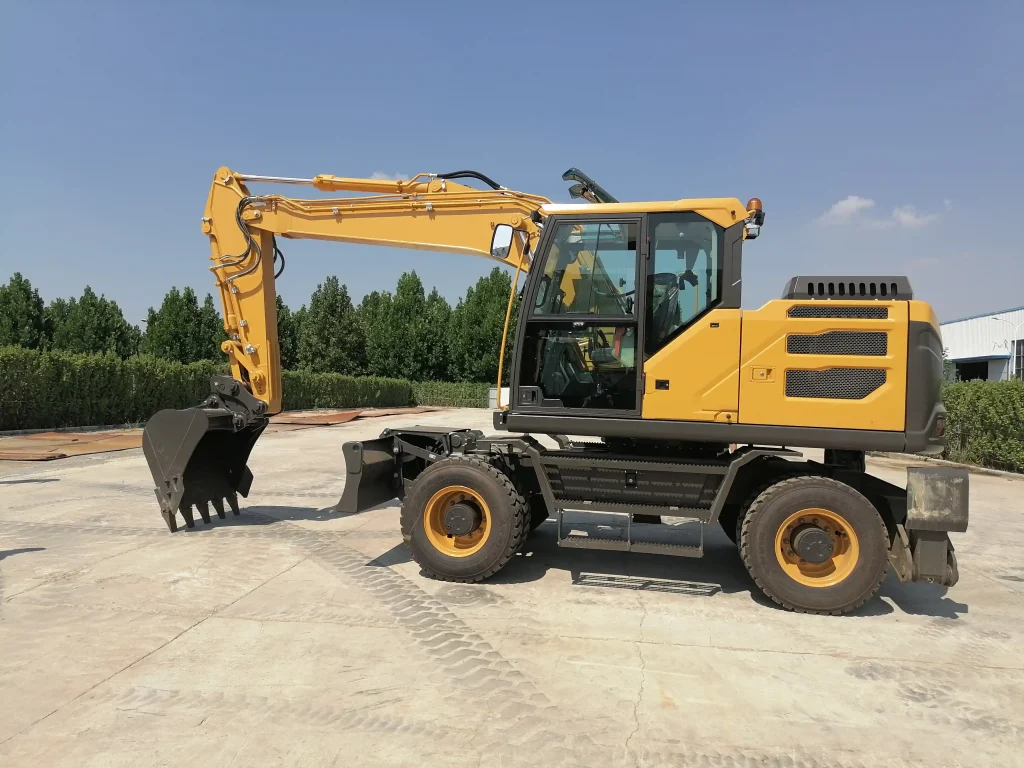

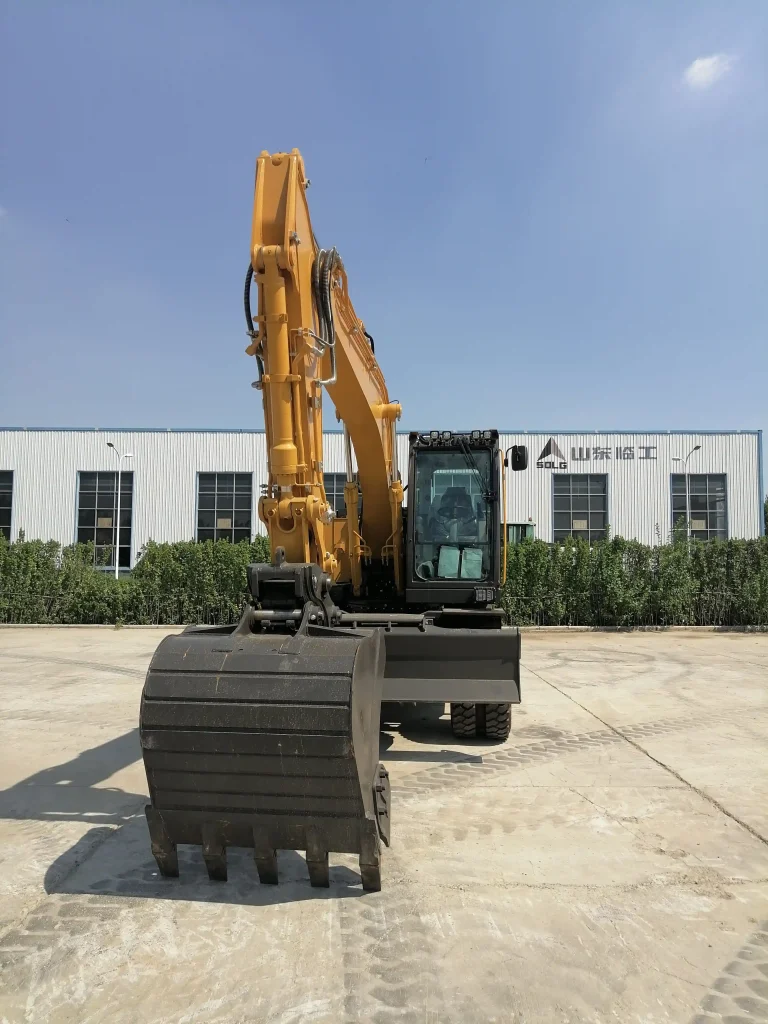

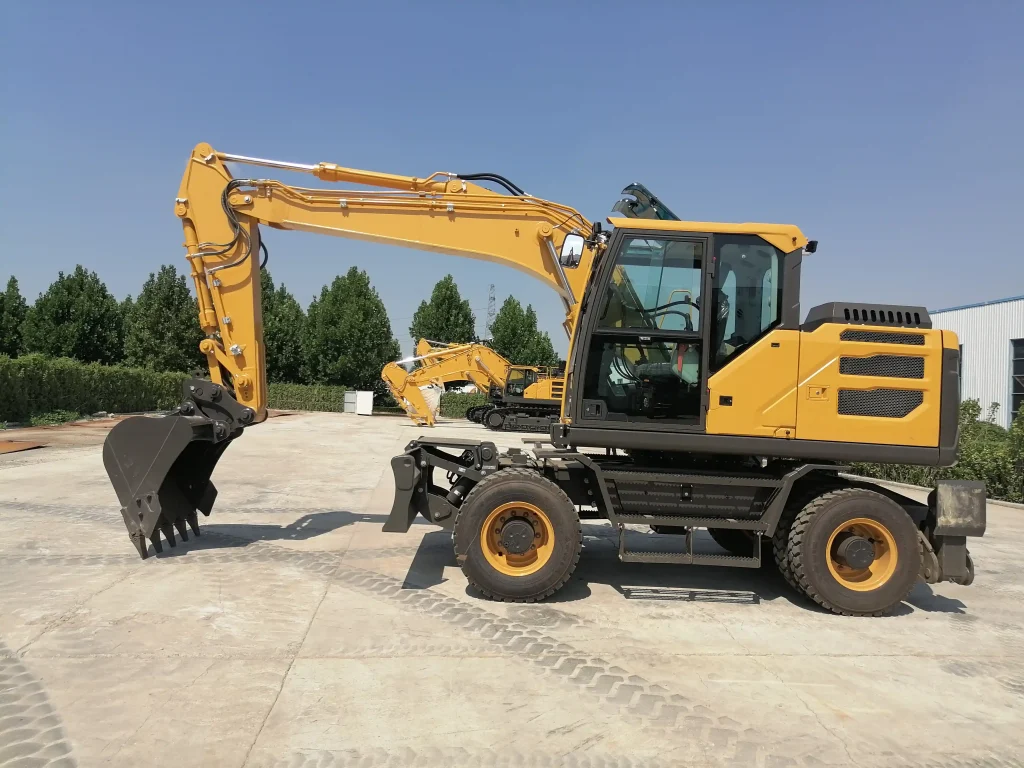

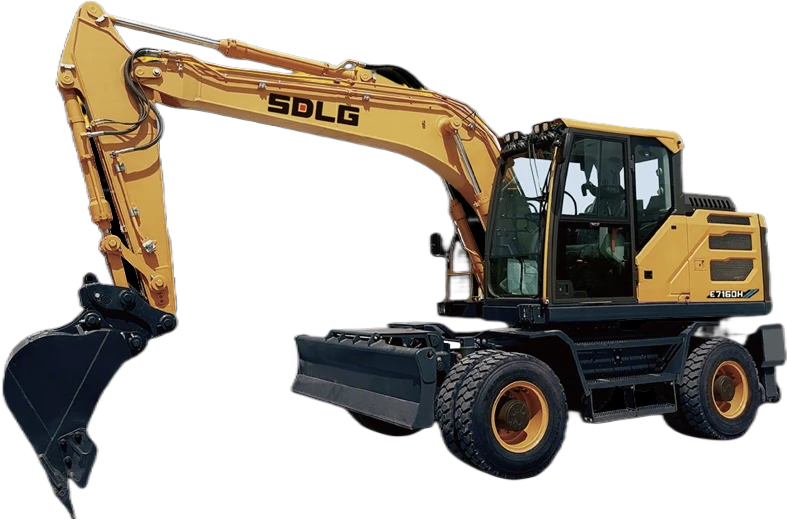

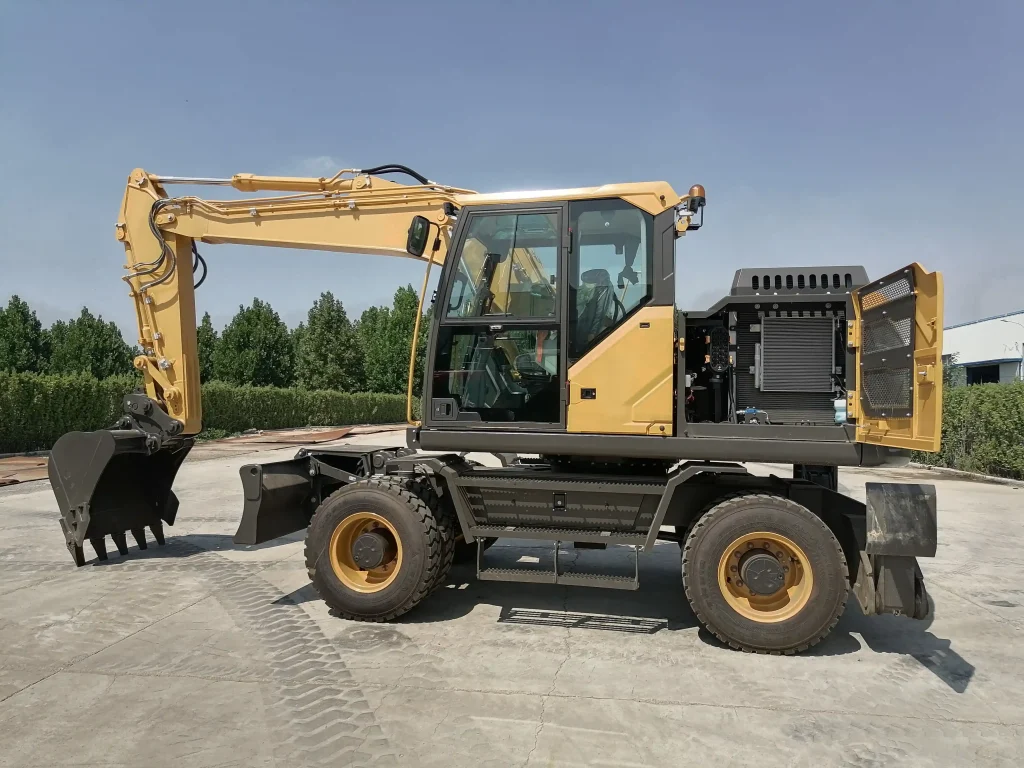

Excavator
E7160H
Operating weight,kg (lbs)
16400
Rated power,kW (hp)/r/min
123
Bucket capacity (m³)
0.6
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- Powerful and Adaptable: 123kW electronic control unit pump 6-cylinder engine, fuel-efficient and high-performance, with good fuel adaptability.
- Reliability and Durability: Fully electronic controlled positive flow hydraulic system with rich functions; core components of reliable quality, solid structural parts; equipped with outriggers and dozer blade; standard multi-functional auxiliary pipeline.
- Safety and Comfort: Spacious-vision and comfortable cab, high-end comfortable seat, smooth operation, and maintenance parts centrally arranged.
Technical Parameter
| Operating Weight (kg) | 16400 |
| Engine Model | BF6M2012-17T2 |
| Rated Power (kW) | 123 |
| Bucket capacity (m³) | 0.6 |
| Length×Width×Height (mm) | 7770×2520×3150 |
| Emission Standard | GB 20891-2007(stage II) |
| Swing Speed (r/min) | 12.2 |
| Traveling Speed (km/h) | 3.6/37.5 |
| Max. Digging Radius (mm) | 8210 |
| Max. Digging Depth (mm) | 4995 |
| Max. Digging Height (mm) | 4190 |
| Fuel Tank Capacity (L) | 290 |
