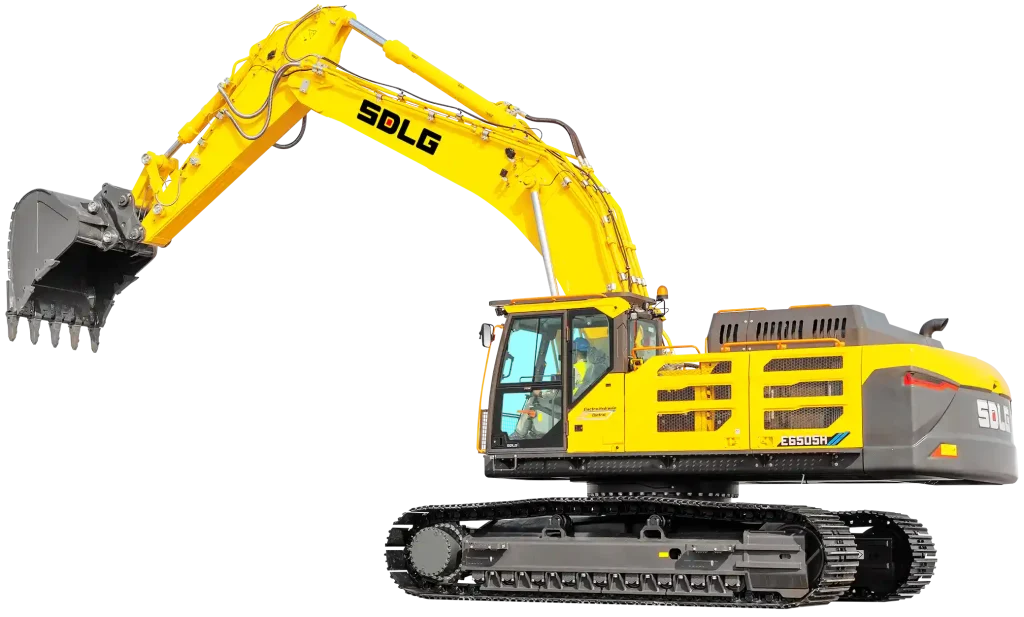

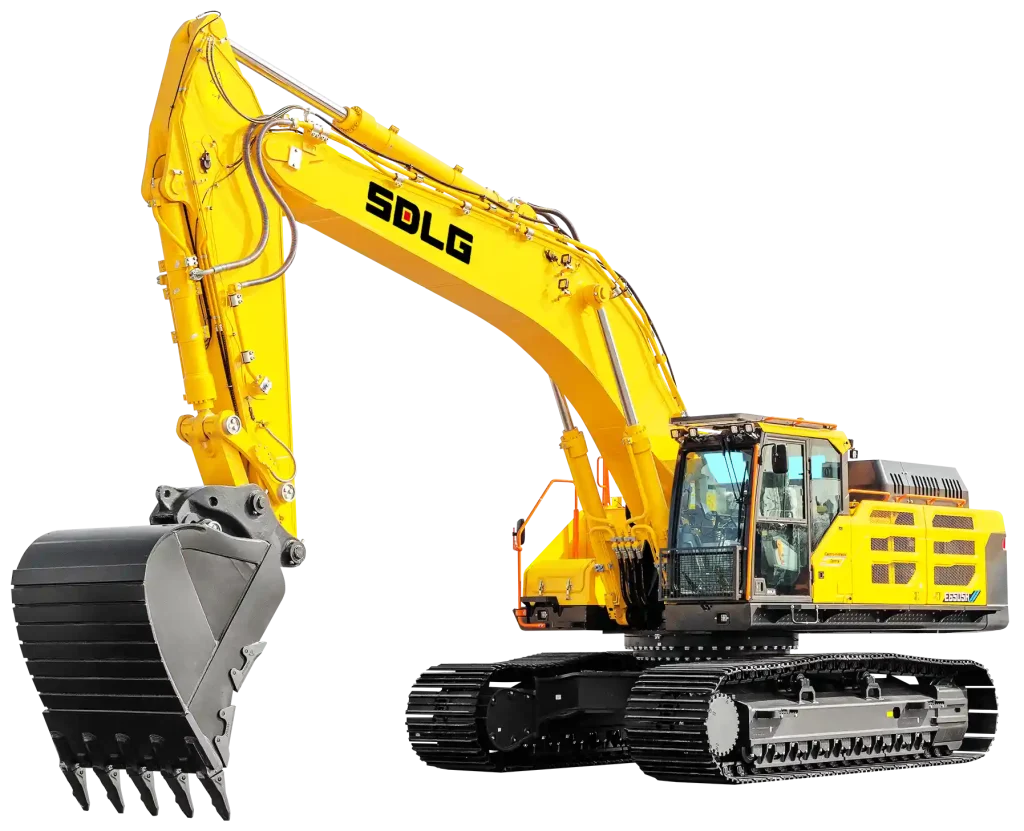

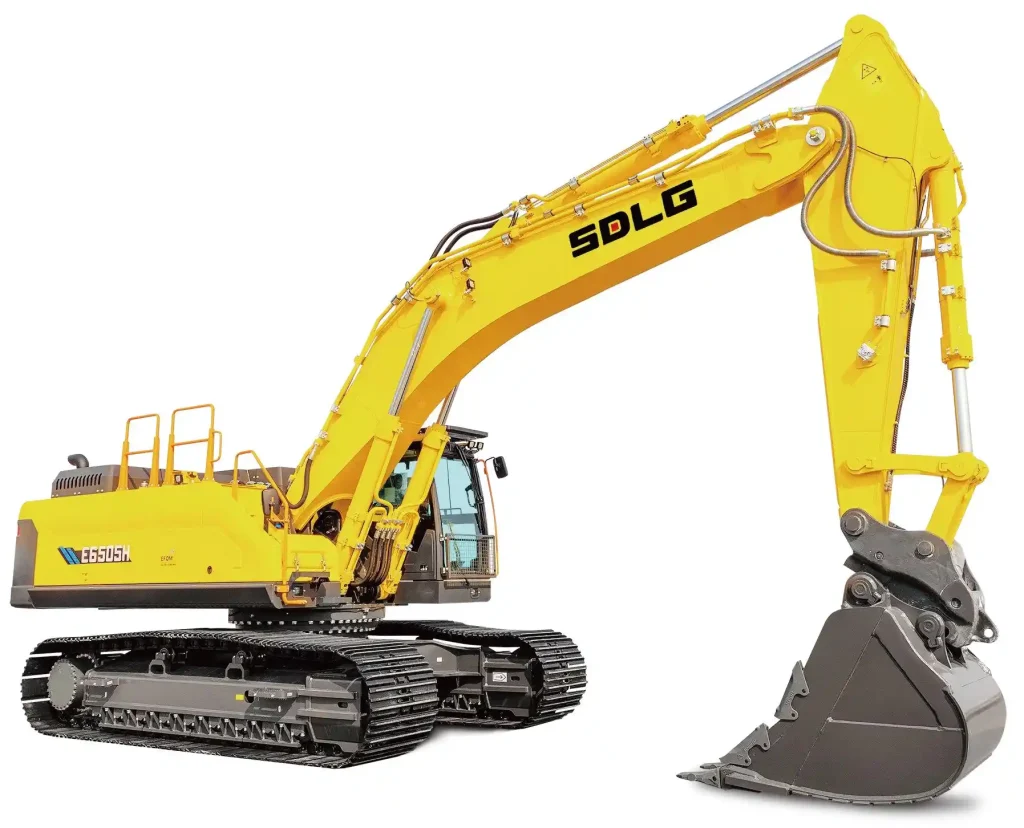

Excavator
E6505H
Operating weight,kg (lbs)
52000
Rated power,kW (hp)/r/min
300
Bucket capacity (m³)
3.2
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- Powerful And High Efficient
- High-power and large-displacement engine with low speed and high torque, a high-pressure common rail injection system, and multiple working modes.
- Reliable And Stable
- Fully electronically controlled hydraulic system, an independent large hydraulic oil cooler, a large chassis, sturdy structural components and frame, and multiple levels of filtration.
- Safe And Comfort
- Comfortable cab with safety protection features, an air-suspended seat, a touchscreen IECU, seat heating, centralized lubrication and maintenance layout, and a rear camera.
Technical Parameter
| Operating Weight (kg) | 52000 |
| Engine Model | 6WG1 |
| Rated Power (kW) | 300 |
| Bucket capacity (m³) | 3.2 |
| Length×Width×Height (mm) | 11850×3565×3757 |
| Emission Standard | GB/T20891-2014(China III) |
| Swing Speed (r/min) | 8.5 |
| Traveling Speed (km/h) | 3.4/5.2 |
| Max. Digging Radius (mm) | 11290 |
| Max. Digging Depth (mm) | 7030 |
| Max. Digging Height (mm) | 10590 |
| Fuel Tank Capacity (L) | 760 |
