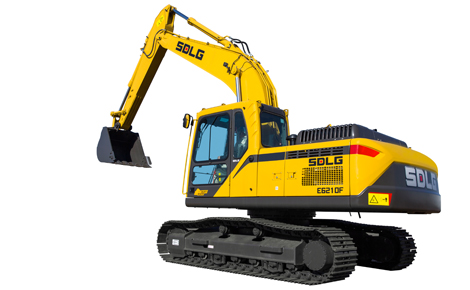

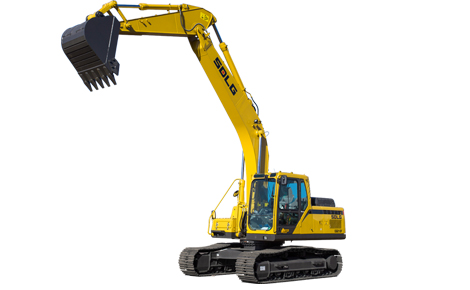

Excavator
E6210F
Operating weight,kg (lbs)
21250
Bucket capacity (m³)
0.90
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- E6210F is the core product developed by SDLG after fully investigating the Chinese market. The product has high strength chassis, heavy working device, optimized matching power hydraulic system, suitable for a variety of harsh conditions.
- The engine has the advantages of environmental protection, low-speed engine, high efficiency, low fuel consumption and high efficiency.
- Double pump constant power negative flow hydraulic system, automatic sensing control.
- The reinforced lower frame with lengthened crawler and widened chassis has good trafficability and higher operation stability.
- Equipped with EECU, VECU, IECU, keypad and GPS electronic control system.
- The cab is spacious and has good sound insulation effect. It is equipped with three sunshade nets. Silicone oil rubber shock absorber is used to reduce vibration and impact.
- It can be equipped with various working devices and accessories such as crushing hammer.
Technical Parameter
| Operating Weight (kg) | 21250 |
| Bucket capacity (m³) | 0.90 |
| Rated power (kW) | 123 |
| Overall width (mm) | 2800 |
| Overall height (mm) | 2940 |
| Overall length (mm) | 9700 |
| Engine model | SDLG-BF6M2012 |
| Emission Standard | China Phase III |
| Max. excavation force (kN) | 147.1 |
| Swing speed (r/min) | 12.1 |
| Traveling speed (km/h) | 3.5/5.7 |
| Max. digging radius (mm) | 9940 |
| Max. digging depth (mm) | 6730 |
| Max. digging height (mm) | 9450 |
| Fuel tank capacity (L) | 350 |
