Wheel Loader
LFT30F
Rated load,kg (lbs)
30000
Operating weight,kg (lbs)
32000
Rated power,kW (hp)/r/min
178
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features

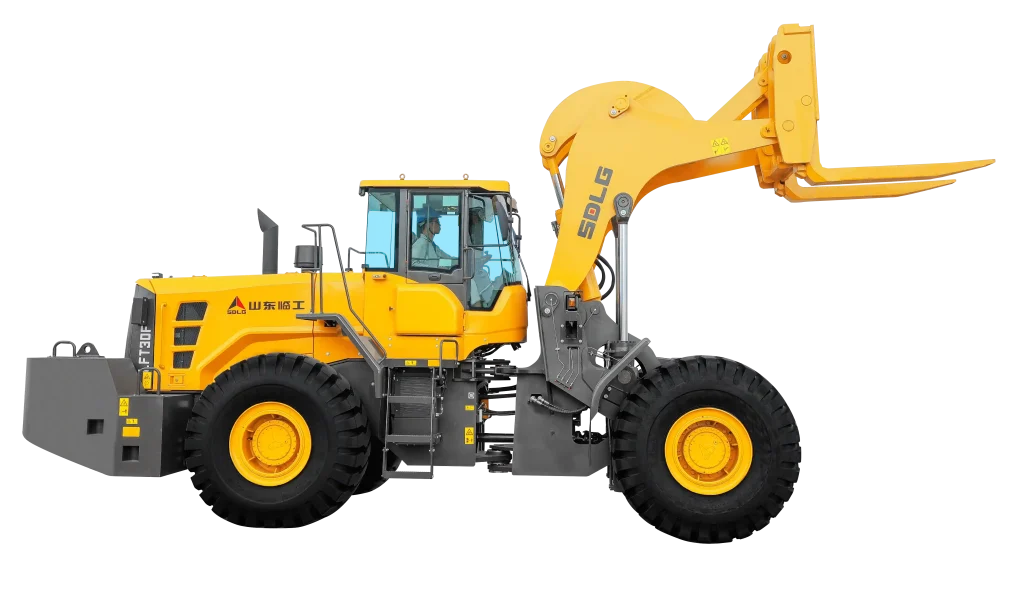

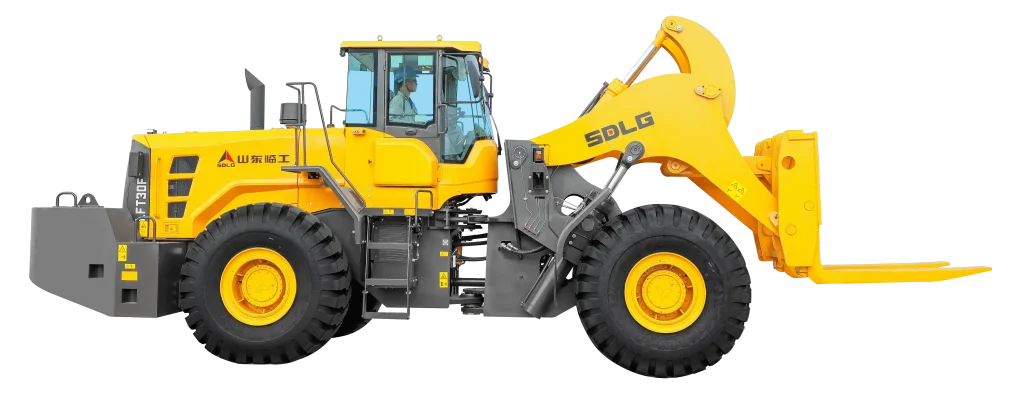

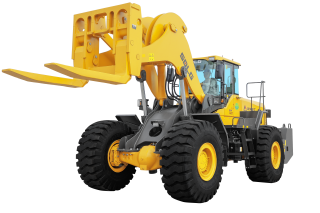

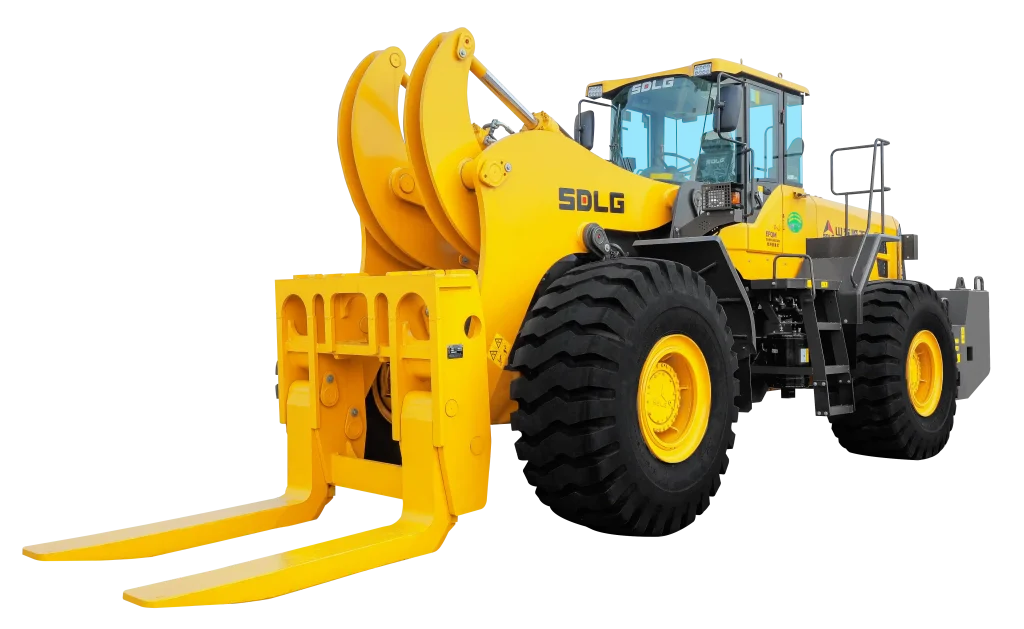

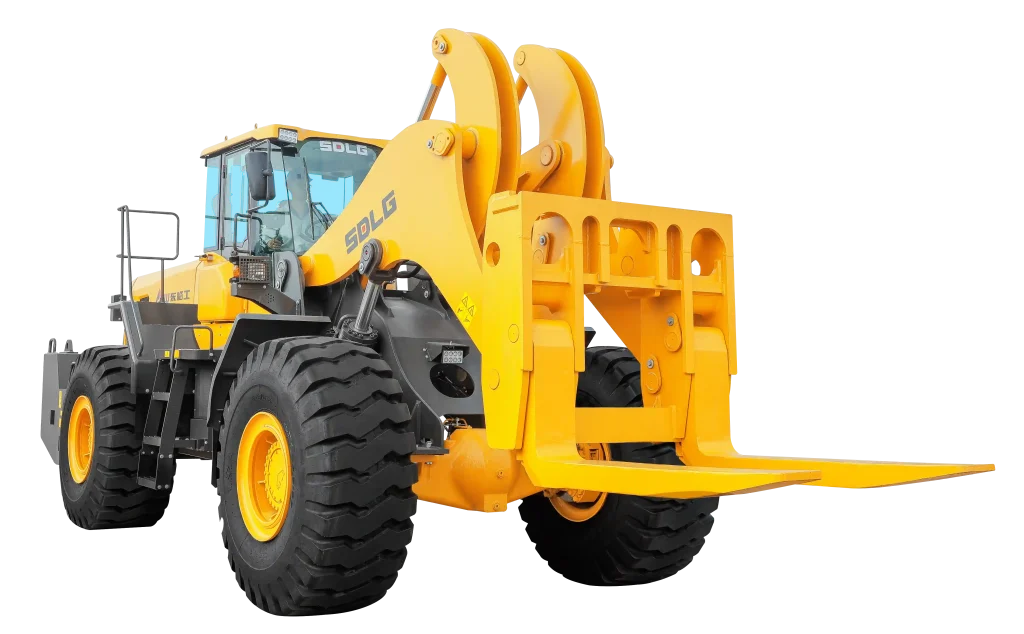

- LFT30 fork loader is the special machine specially designed for large-tonnage stone (e.g. marble) quarrying conditions, its 1.5m lifting capacity reaches 30t, and it has large overall breakout force, high working efficiency, good stability and comfortable operation; it is widely used in the marble loading, transferring, stacking and various conditions in the mine, stock ground and other sites.
Technical Parameter
| Rated Load (kg) | 30000 |
| Length×Width×Height (mm) | 9460×3115×3480 |
| Wheel Base (mm) | 4050 |
| Max.Dumping Height (mm) | 3150 |
| Steering Angel (°) | 35 |
| Emission Standard | GB20891-2014（China Phase Ⅲ） |
| Max.Tractive Force (kN) | ≥235 |
| Fuel Tank Capacity (L) | 350 |
| Operating Weight (kg) | 32000 |
| Rated Power (kW) | 178 |
| Engine Model | WP10G240E342 |
