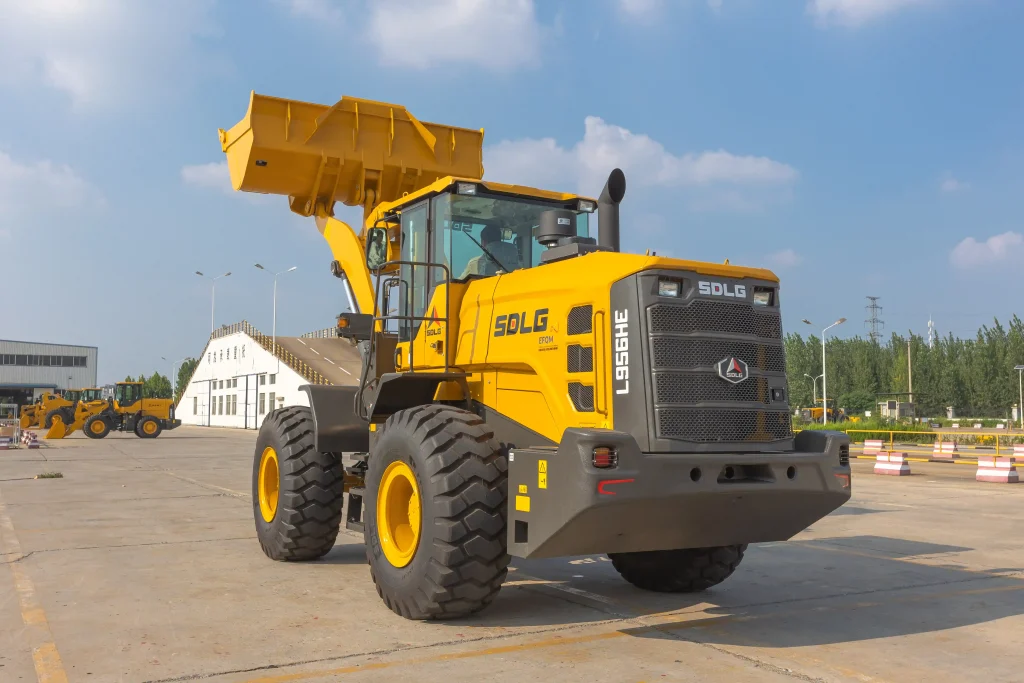

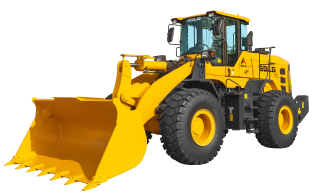

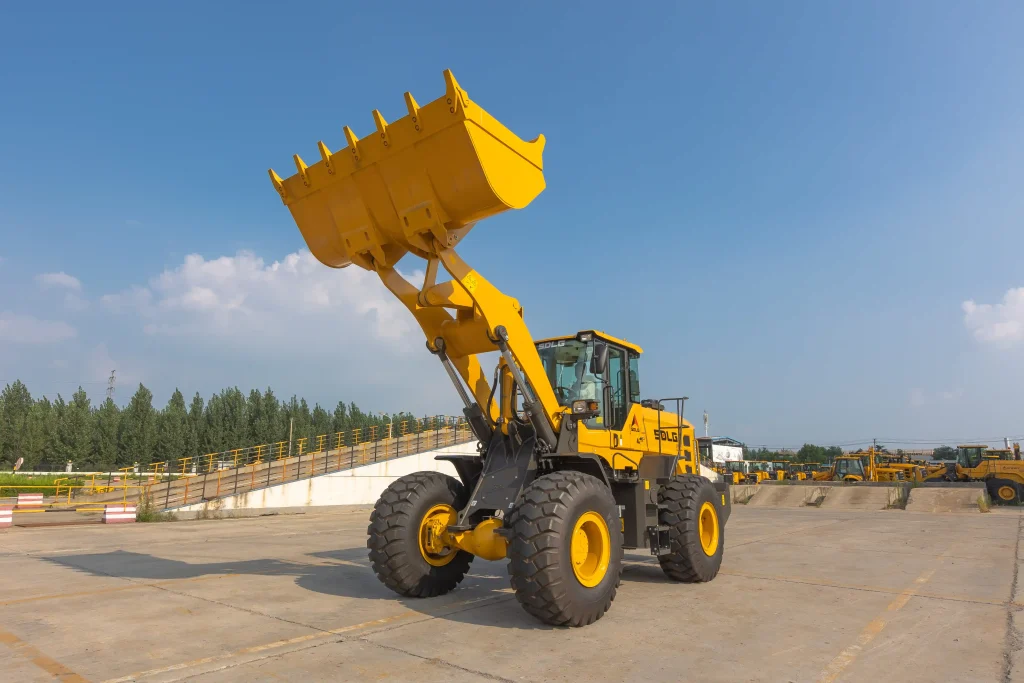

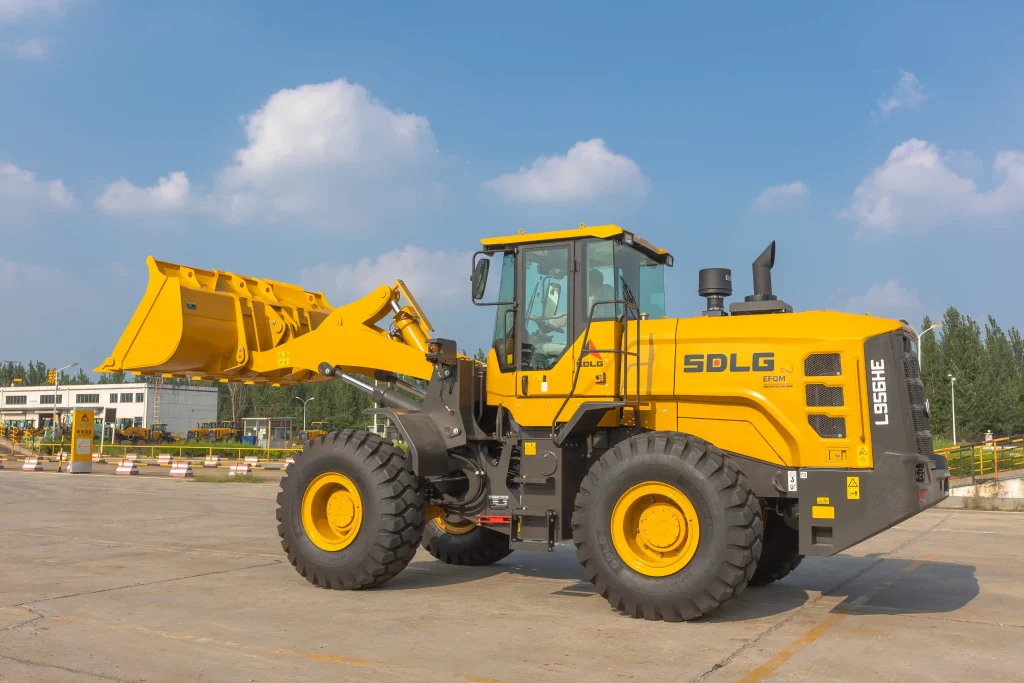

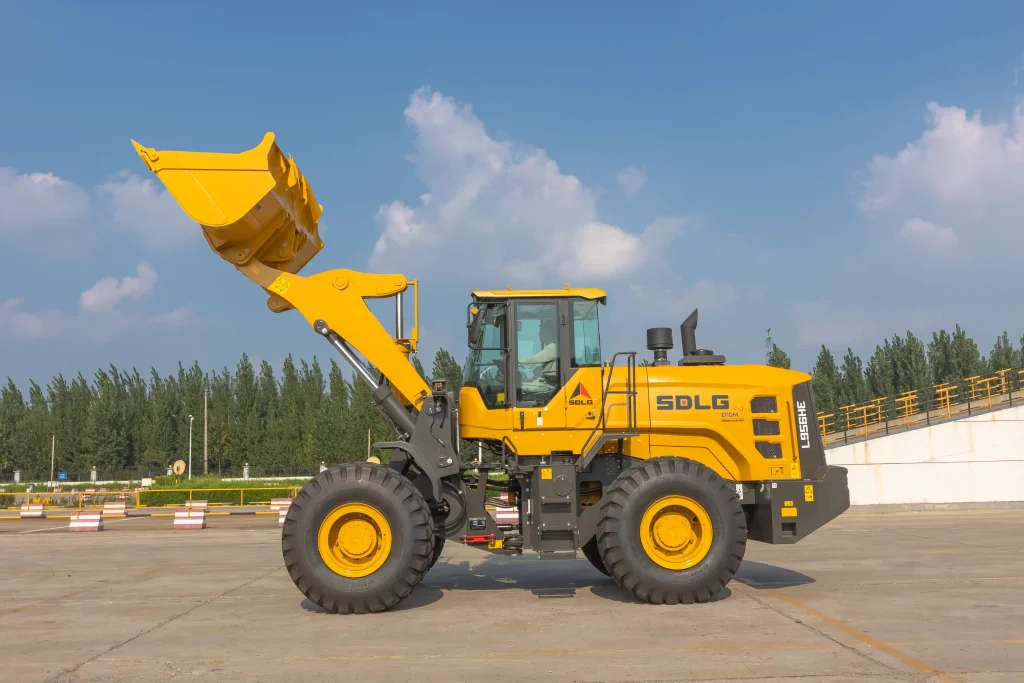

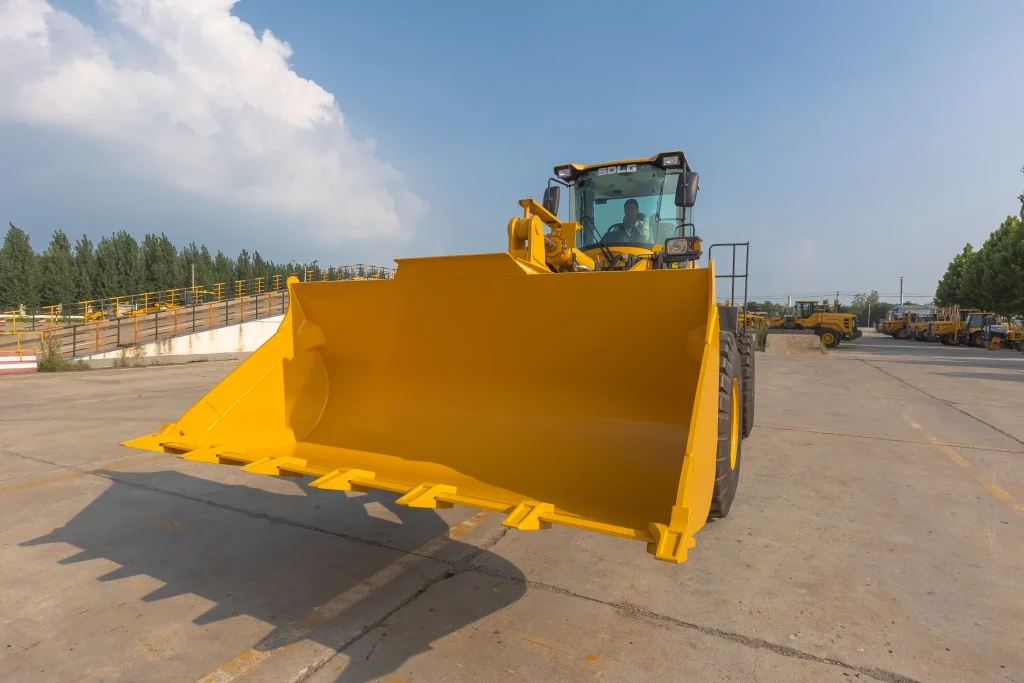

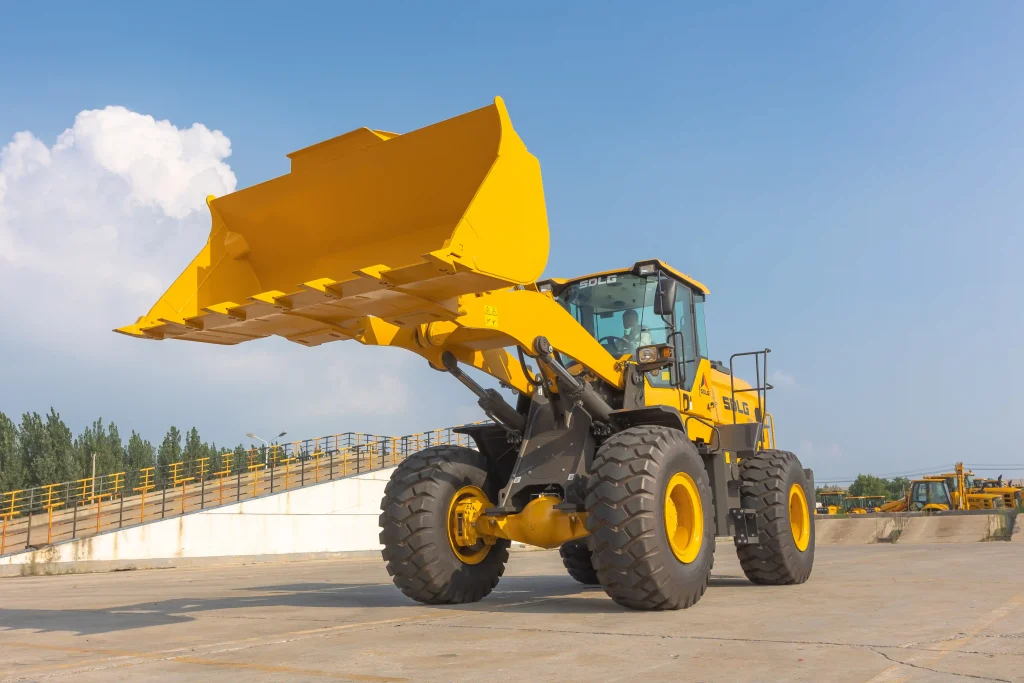

Wheel Loader
L956HE
Standard bucket capacity,m³ (yd³)
3
Rated load,kg (lbs)
5300
Operating weight,kg (lbs)
17080
Rated power,kW (hp)/r/min
162
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- Engine and torque converter match well，vehicle accelerate quickly，high working efficiency.
- Tipping load, breakout force, traction, lifting force are ahead of competitor, the vehicle is stable with high working ability.
- Low fuel consumption per unit time, short cycle time, high comprehensive efficiency .
- Large cab, good vision, low noise, low vibration, AC refrigeration fast, good driving experience, low fatigue strength
- Beautiful appearance, the old machine is easy to deal with, second-hand salvage value is high.
Technical Parameter
| Rated Load (kg) | 5300 |
| Length×Width×Height (mm) | 8250*3024*3466 |
| Wheel Base (mm) | 3300 |
| Max.Dumping Height (mm) | 3100 |
| Dumping Distance (mm) | 1210 |
| Steering Angel (°) | 36 |
| Emission Standard | Tier II (GB20891-2007) |
| Max.Tractive Force (kN) | 155 |
| Max.Breakout Force (kN) | ≥175 |
| Fuel Tank Capacity (L) | 280 |
| Standard Bucket Capacity (m³) | 3 |
| Operating Weight (kg) | 17080 |
| Rated Power (kW) | 162 |
| Engine Model | Wechai WD10G220E23 |
