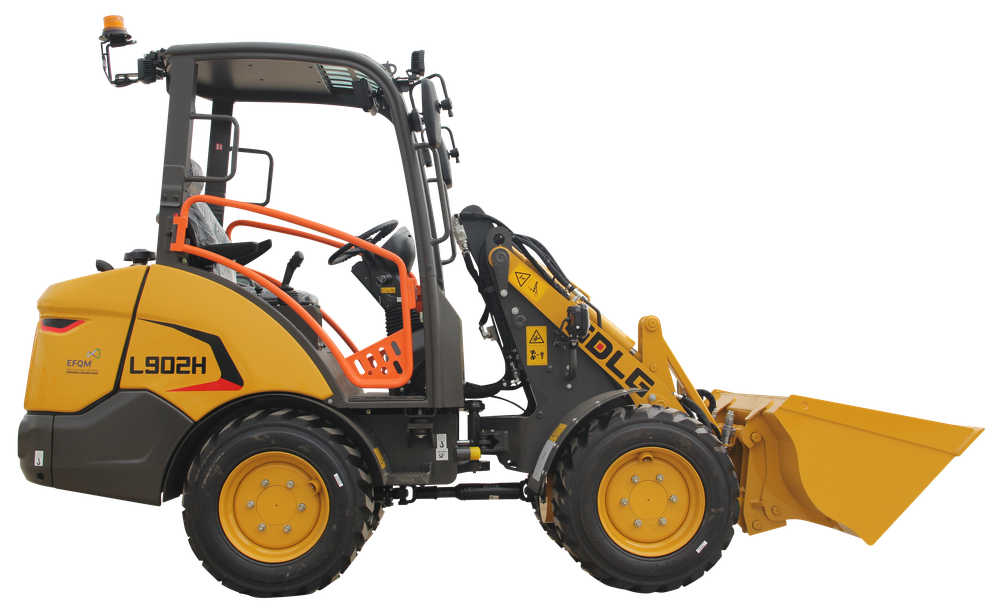

Wheel Loader

L902H

Standard bucket capacity,m³ (yd³) 0.35(0.46)

Rated load,kg (lbs) 600 (882)

Operating weight,kg (lbs) 2,200(4,850)

Rated power,kW (hp)/r/min 17.4 (23.7）

Talk to sales directly — Anthony 086 223 7039 or Ronald 087 915 3459 .
Demos arranged nationwide.

Features

The L902H is equipped with a Kubota engine providing adequate power for all situations.
Utilizing a large displacement engine allows the unit to operate at lower RPM, reducing vibration, noise, and fuel consumption, and improving reliability.
Access to the engine is granted from both the rear of the unit and an access hatch beneath the operator’s seat.
The operator can easily adjust the engine speed at any time by simply pulling the throttle lever to accommodate any working condition.
ROPS & FOPS certified canopy.

Rated load,kg (lbs)	600 (882)
Operating weight,kg (lbs)	2,200(4,850)
Engine	Kubota D1703
Rated power,kW (hp)	17.4 (23.7）
Rated engine speed,rpm	2200
Engine displacement,ml (in³）	1,674 (102)
Transmission type	HST
Speed at Fl/Rl,km/h (mph)	0~10 (0-6.2}
Speed at F2/R2,km/h (mph)	0~20 (0-12.4)
Tire size	10-16.5
Fuel tank,L (gal)	35 (9.2)
Overall shipping size (L • W • H)，mm (ft in)	4,010(13’2″)1,338(4’7″)2,282(7’5.8″)
A Wheelbase,mm (ft in)	1,470(4’9.9″)
B Ground clearance,mm (ft in)	220 (8. 7″)
C Reach at Max height,mm (ft in)	365（l’2.4″)
D Dumping angle,°	40
E Height at bucket pin,mm (ft in)	2,728 (8’11.4″)
F Dumping height,mm (ft in)	2,010(6’7.1″)
G Bucket rollback at ground level,°	48
I Wheel tread,mm (ft in)	946(3’1.2″)
J Articulation angle,°	43
K Turning radius at over bucket,mm (ft in)	3,280(10’9.1″)
M Turning radius at inside of tires,mm (ft in)	1,300(4’2″)
Standard bucket capacity,m³ (yd³)	0.35(0.46)
