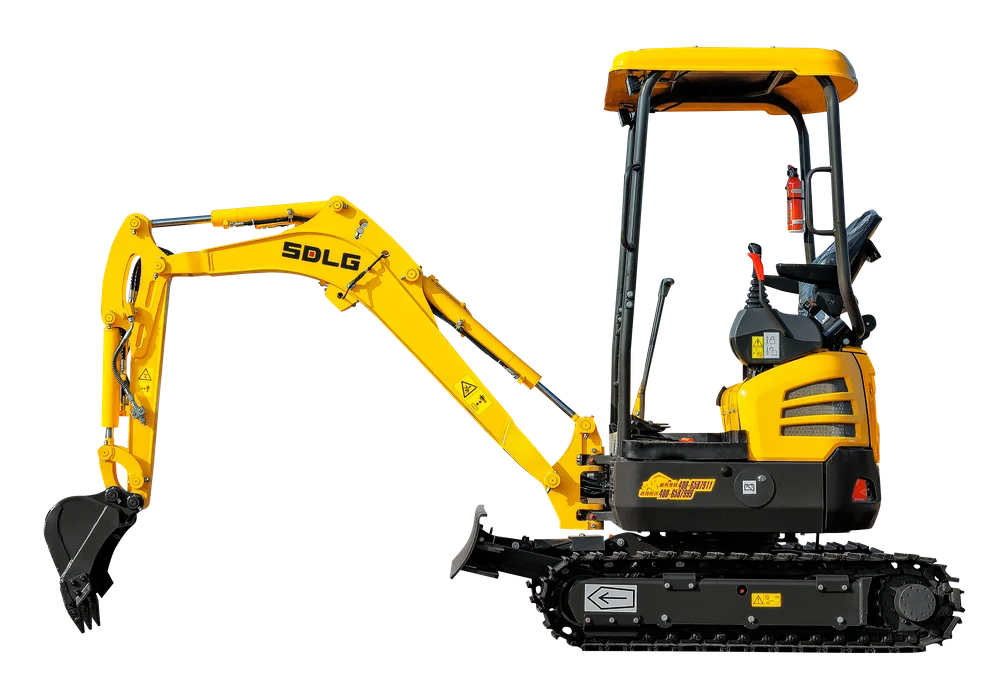

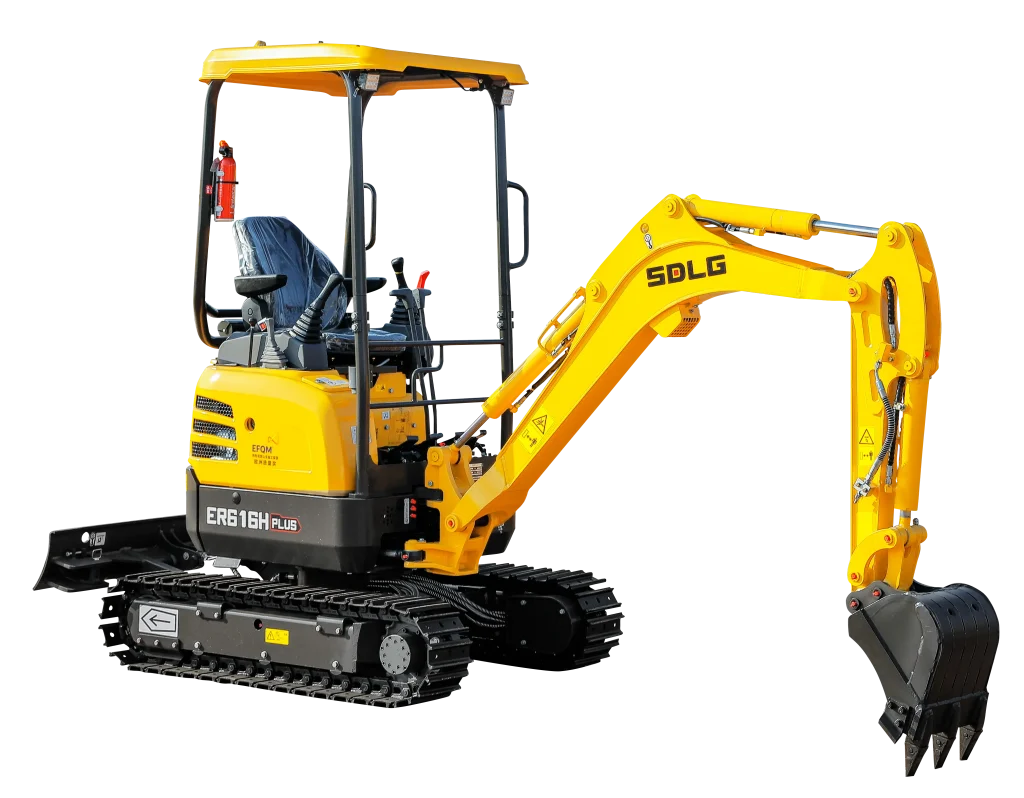

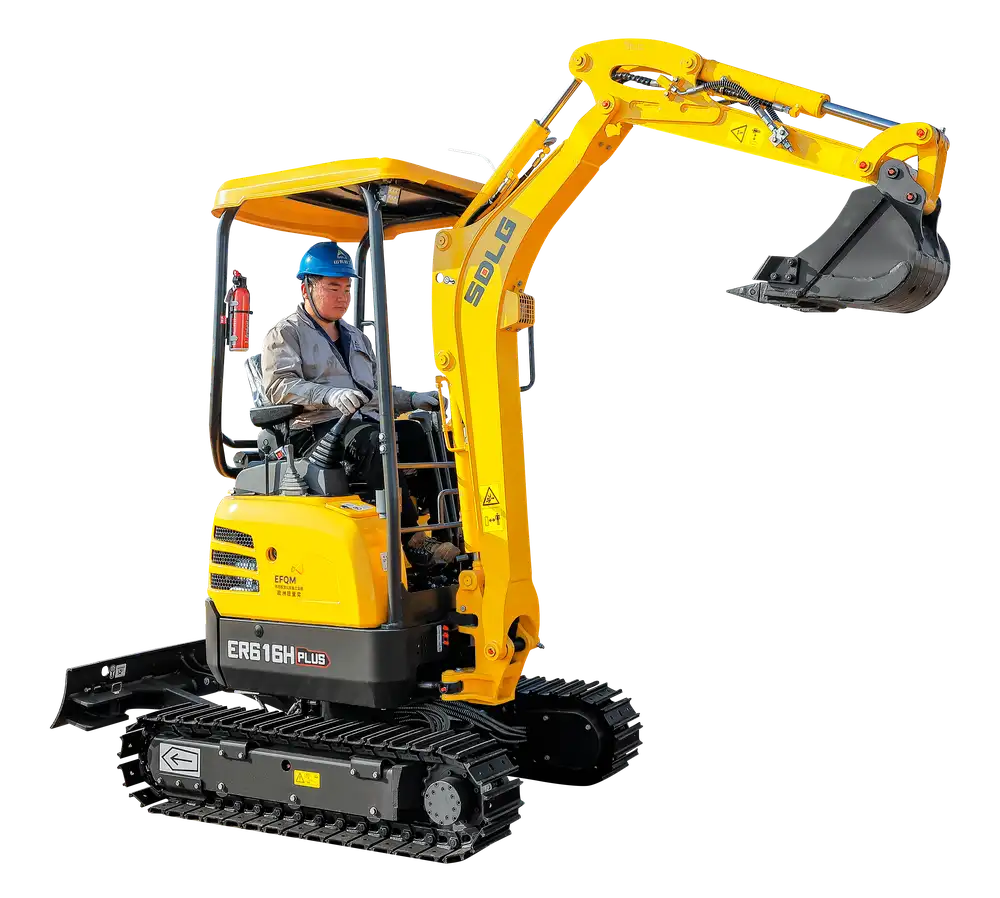

Excavator
ER616H
Operating weight,kg (lbs)
1880kg
Bucket capacity (m³)
0.04m³
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- ER616H is a mini excavator product launched by SDLG, it uses the imported Kubota engine, load sensing hydraulic system, high efficiency, low fuel consumption; With tailless rotation, boom swing and chassis telescopic function, suitable for narrow working conditions; Pilot control, easy to operate. It is mainly used in garden maintenance, road maintenance, farmland construction, ditch construction and crushing operation.
- Kubota engine, energy saving, load sensing hydraulic system, high efficiency, reliable working device.
- Tailless rotation, boom swing, chassis telescopic, high speed travel, pilot control, X1 pipe.
Technical Parameter
| Operating Weight (kg) | 1880kg |
| Bucket capacity (m³) | 0.04m³ |
| Bucket capacity range | 0.03～0.06 |
| Average ground pressure | 30mm |
| Slewing speed | 9.2r/min |
| Traveling speed (low/high) | 2/4km/h |
| Maximum digging force | 15kN |
| Altitude | 1400m |
| Wading depth | 400mm |
| Engine model/Drive Motor Model | D782-ET05_CN4 |
| Engine power | 9.8KW |
| Maximum flow rate | 52L/min |
| Fuel specifications and filling amount | 18L |
| Overall length | 3608mm |
| Overall width | 970(1240)mm |
| Overall height | 2375mm |
| Boom length | 1830mm |
| Wheel track | 730/1010(Track shoe center distance) |
| Arm length | 965mm |
| wheelbase | 1230mm |
| Crawler wheelbase/Wheelbase | 1230mm |
| Maximum digging radius | 3910mm |
| Maximum digging depth | 2290mm |
| Maximum discharge height | 2490mm |
| Overall length during transfer | 3608mm |
| Shovel width (with band edge) | 480mm |
| Maximum digging depth under length of bottom surface of 2.5m | 1540mm |
| Maximum digging height | 3505mm |
| Contour dimension of complete machine (transfer position) | 3608×970(1240)×2375mm |
| Overall width of upper assembly | 960 |
| Overall width of chassis | 970(1240)mm |
| Overall height to cab top | 2375mm |
| Rear slewing radius | 620mm |
| Overall height to hood top | 1150mm |
| Ground clearance of upper assembly | 470mm |
| Overall length of crawler | 1585mm |
| Wheel track of crawler/Wheel track | 730/1010mm |
| Track shoe width | 230mm |
| Minimum ground clearance | 145mm |
| Overall height of working mechanism during transfer | 1190mm |
| Maximum digging radius of reference ground | 3850mm |
| Maximum vertical digging depth | 2050mm |
| Minimum front turning radius | 1490mm |
