Features

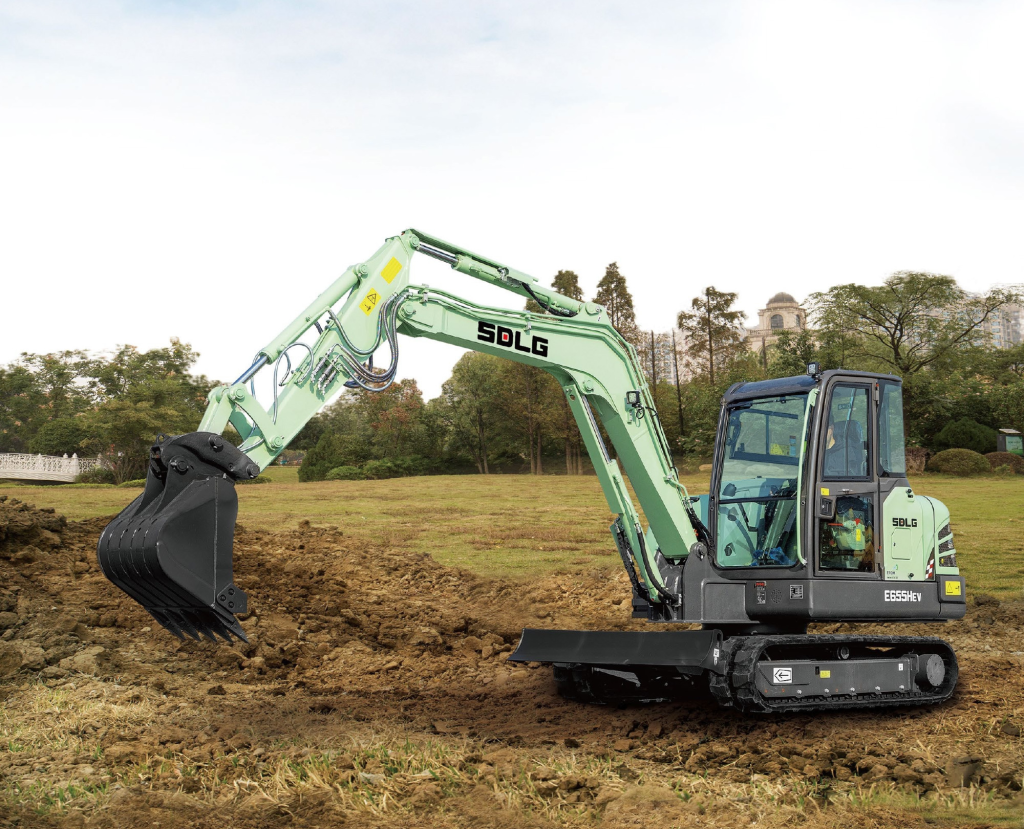

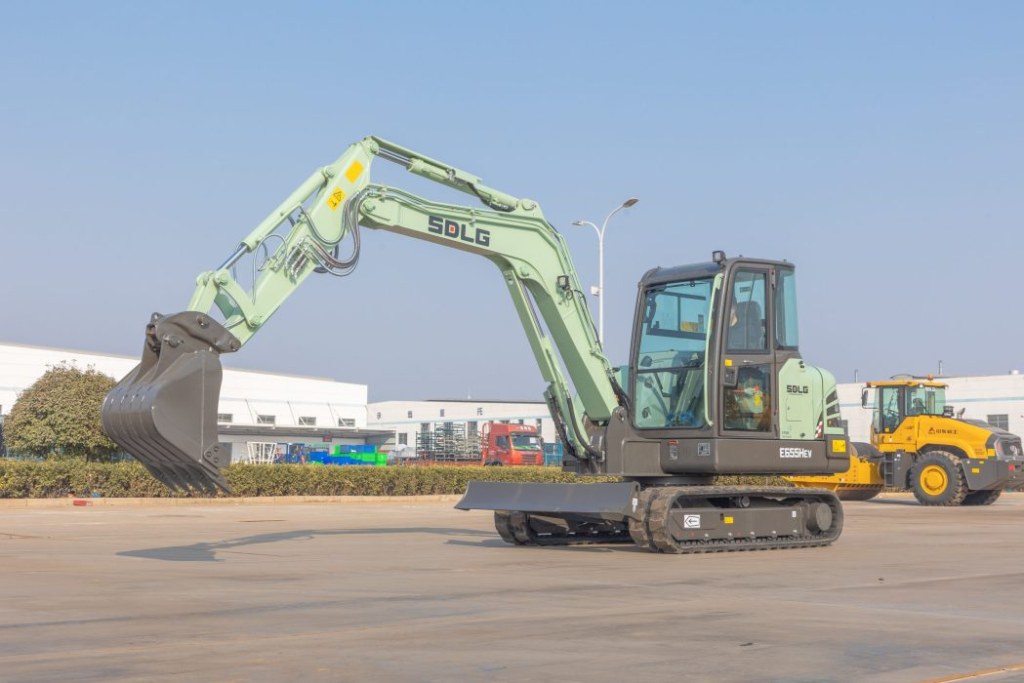

The compact mini excavator for precise tasks
The SDLG E655HEV is a compact mini excavator developed by leading construction equipment manufacturer SDLG (Shandong Lingong Construction Machinery Co., Ltd.). It combines high productivity, reliability and cost-effectiveness, making it ideal for working in confined spaces and performing complex tasks — the ideal partner for crews tackling new projects.
Ideal for work on small construction sites and in places with limited space. The ability to install various attachments expands the range of use. Effective in construction, agriculture, utilities and road works.
The lithium iron phosphate battery with high safety performance and DC fast charging allows 1 hour charging for 4-6 hours run time. The ergonomic cabin with improved visibility and modern control systems creates comfortable conditions for the operator. This helps to increase productivity and safety in the workplace.
Compactness
Multifunctionality
Economy
Operator comfort

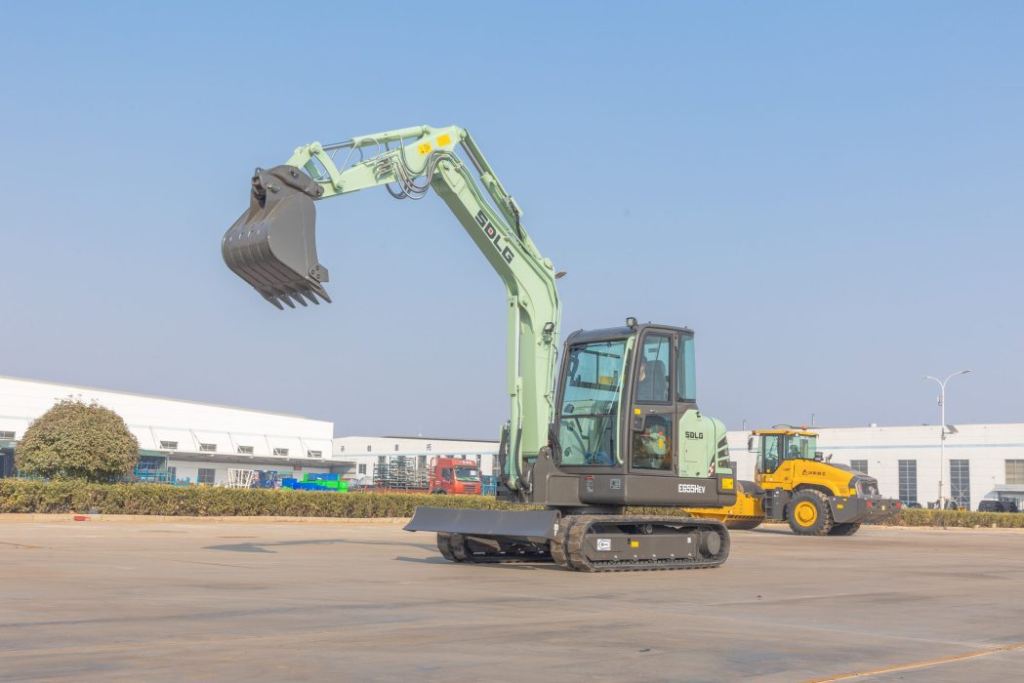

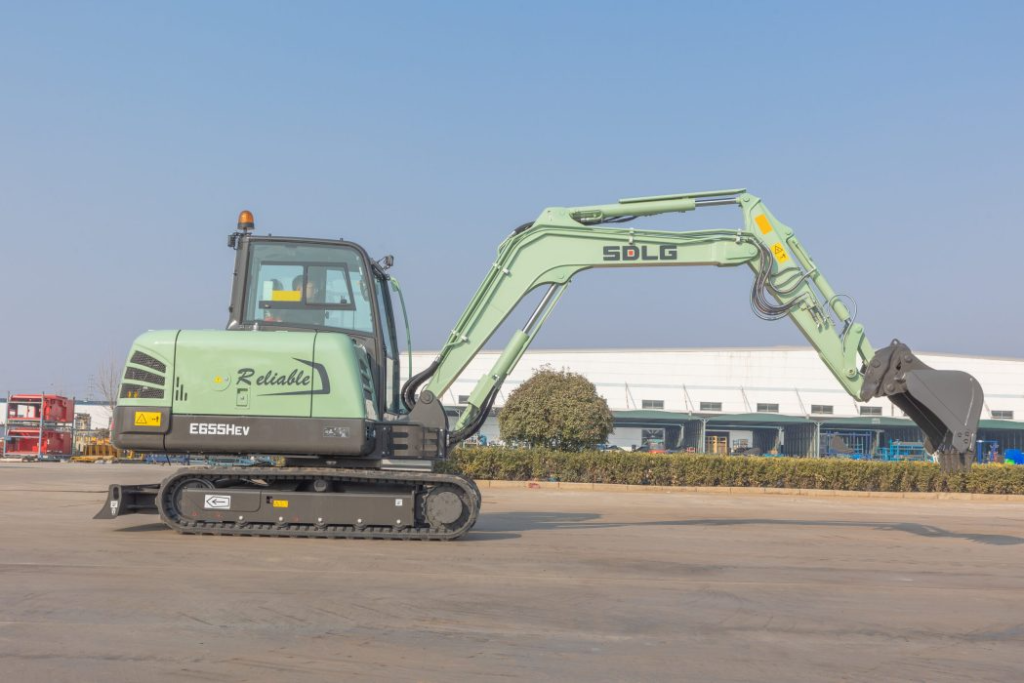

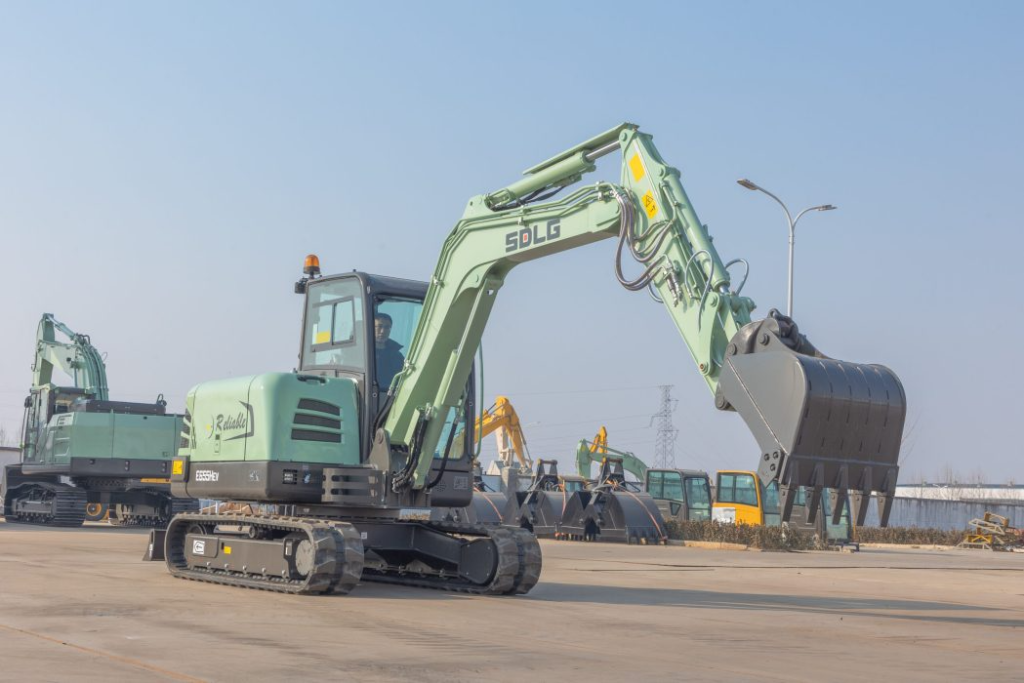

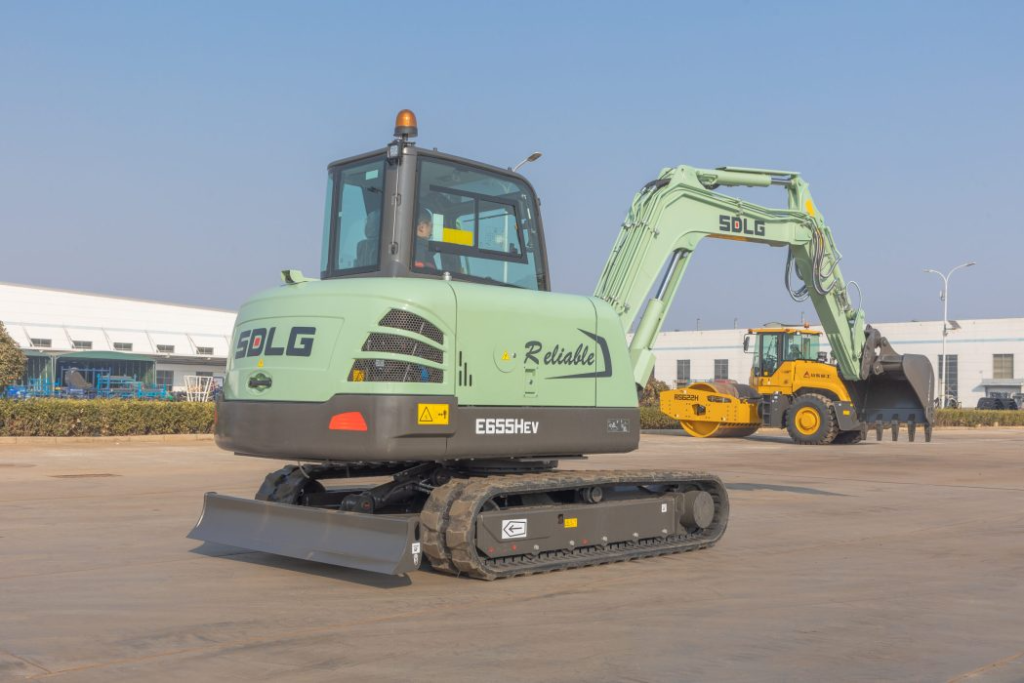

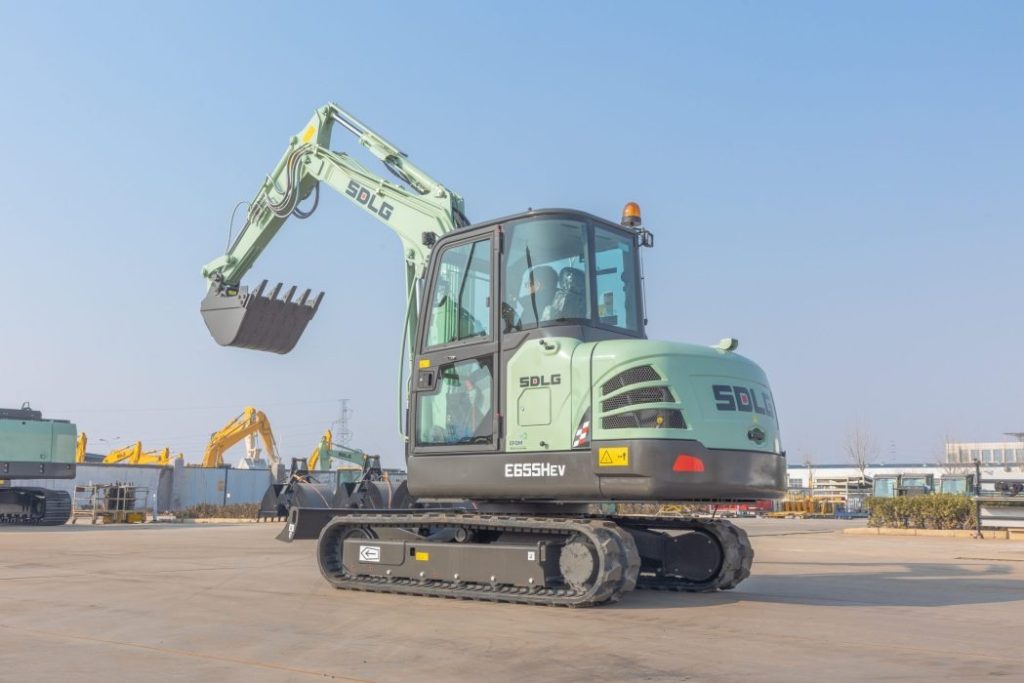

Exterior
Reliability in every detail

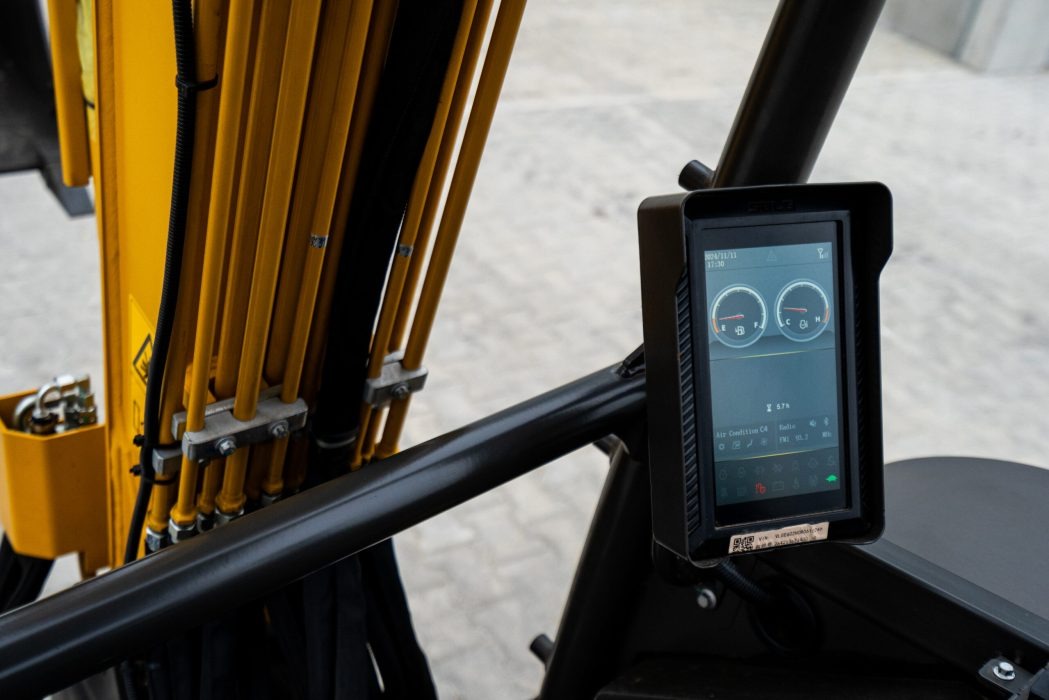

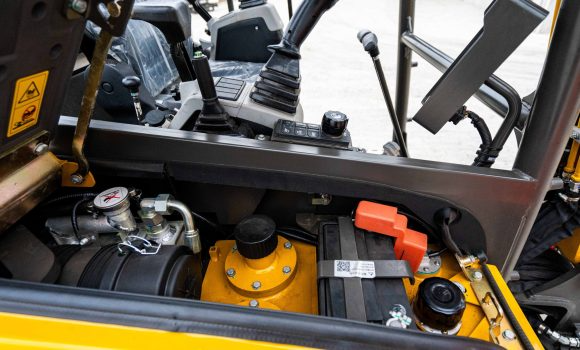

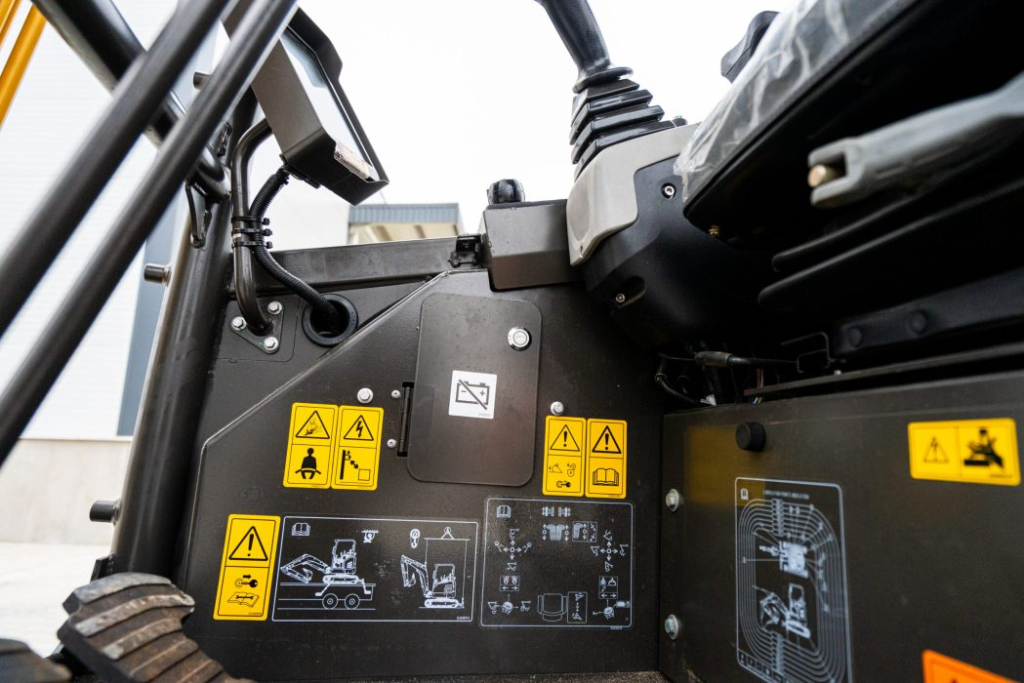

Interior & Drivetrain
Comfort and functionality
Technical parameters
| Weight & performance | |
|---|---|
| Operating weight | 6,050 kg (13,338 lbs) |
| Rated power | 34 kW (46 hp) |
| Ground pressure | 34 kPa (4.9 psi) |
| Gradeability | 20° |
| Swing speed | 11 r/min |
| Travel speed (low / high) | 2.4 km/h (1.5 mi/h) / 4.8 km/h (3 mi/h) |
| Electric powertrain | |
| Rated voltage | 521.64 V |
| Battery rated capacity | 90 kWh |
| Average runtime | 4–6 h |
| Charging time | 1 h |
| Hydraulics & digging force | |
| Pump capacity | 126 L/min (33.3 gal/min) |
| Main relief set pressure | 215 bar (3,118 psi) |
| Max. digging force — bucket | 45 kN (10,116 lbf) |
| Max. digging force — arm | 27.5 kN |
| Dimensions | |
| Overall shipping size (L × W × H) | 6,165 × 1,980 × 2,557 mm (20′ 2.7″ × 6′ 6″ × 8′ 4.7″) |
| Boom length | 3,030 mm (9′ 11.3″) |
| Arm length | 1,540 mm (5′ 0.6″) |
| Bucket capacity | 0.21 m³ (0.28 yd³) |
| Undercarriage length | 2,500 mm (8′ 2.4″) |
| Track width | 400 mm (15.7″) |
| Tail swing radius | 1,820 mm (5′ 11.7″) |
| Min. front swing radius | 2,340 mm (7′ 8.1″) |
| Working ranges | |
| Max. digging reach | 6,125 mm (20′ 1.1″) |
| Max. digging reach on ground | 6,000 mm (19′ 8.2″) |
| Max. cutting height | 5,818 mm (19′ 1.1″) |
| Max. dumping height | 4,095 mm (13′ 5.2″) |
| Max. digging depth | 3,862 mm (12′ 8″) |
| Max. digging depth (horizontal 8 ft) | 3,423 mm (11′ 2.3″) |
| Max. vertical wall digging depth | 2,725 mm (8′ 11.3″) |
