Features
23.4 t (51,588 lbs) | 423 kWh Powerful and Reliable for Heavy Duty Work

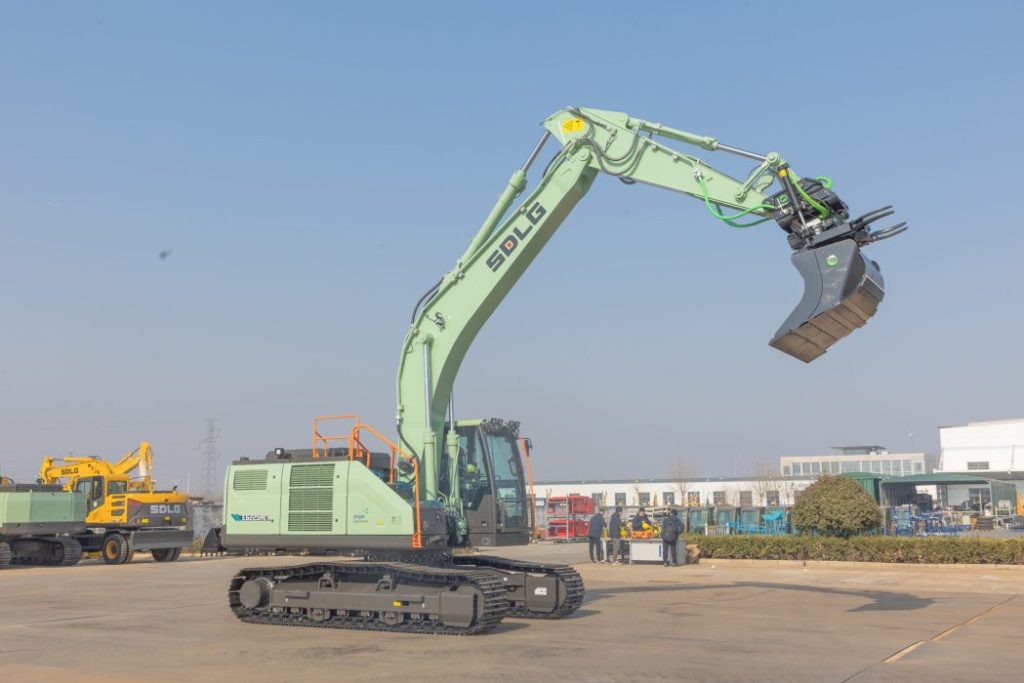

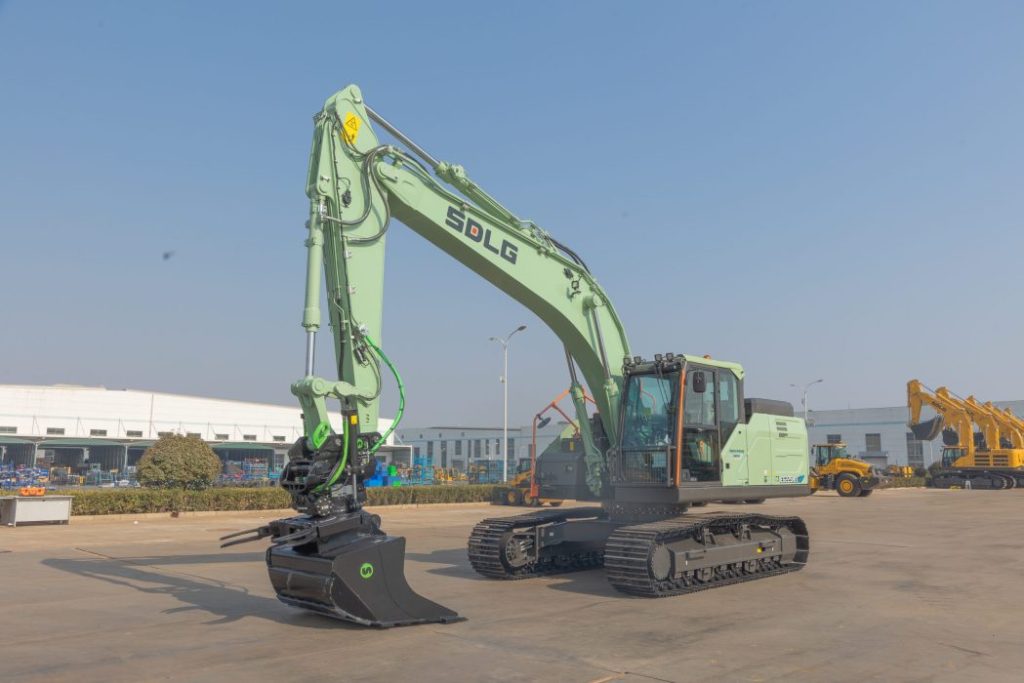

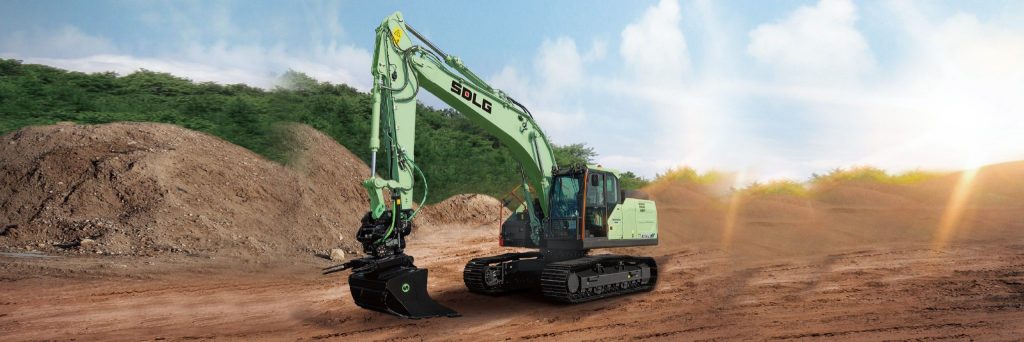

The powerful and highly productive SDLG E6225HEV Electric Excavator can be considered a benchmark model in terms of fuel efficiency and effective performance in any conditions. On our website, you can order and purchase modern equipment at favorable prices directly from the manufacturer.
The compactness of the SDLG E6225HEV Electric excavator allows it to work efficiently in confined construction sites and large-scale projects where maneuverability is crucial. The SDLG E6225HEV Electric excavator stands out for its versatility, allowing it to be used in various industries: from building foundations and highways to mining, landscape design, and building demolition.

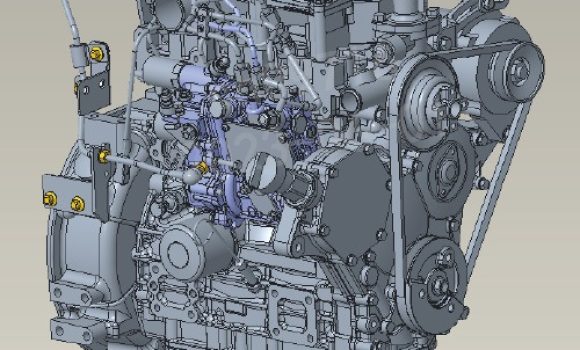

The diesel engine provides low fuel consumption, which makes the operation of the equipment economical. Easy maintenance reduces the cost of maintenance and repair.

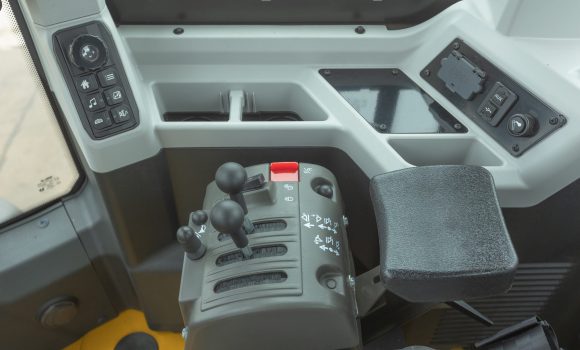

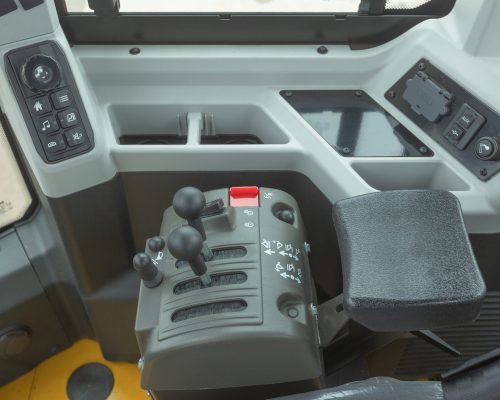

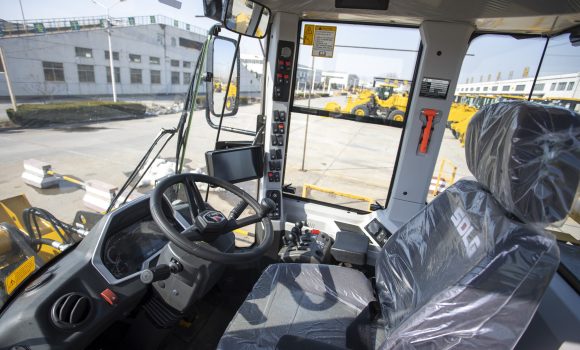

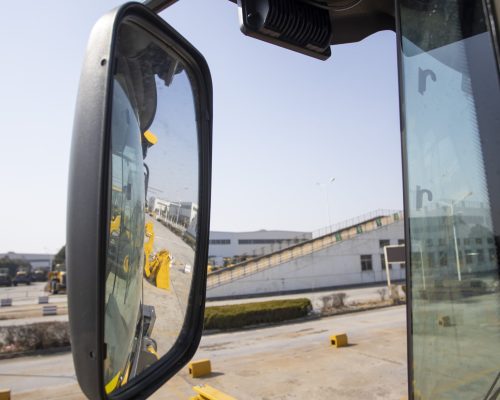

The cab of the E6225HEV Electric excavator is designed with the operator’s needs in mind, providing maximum comfort and convenience during operation. The spacious cab features a modern sound insulation system that minimizes external noise, allowing the operator to stay focused on tasks. Ergonomic adjustable seats, intuitive control layout, and an effective air conditioning system create a comfortable environment even during long shifts. With a wide field of view, the operator has full control over the surroundings, enhancing both safety and productivity.

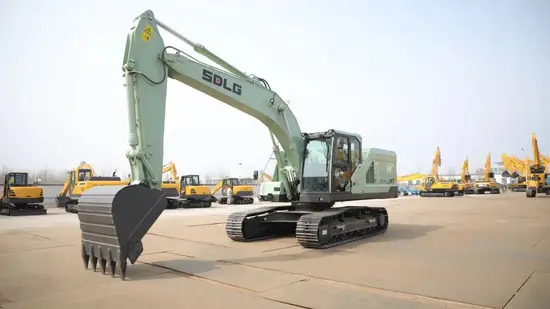

Compactness

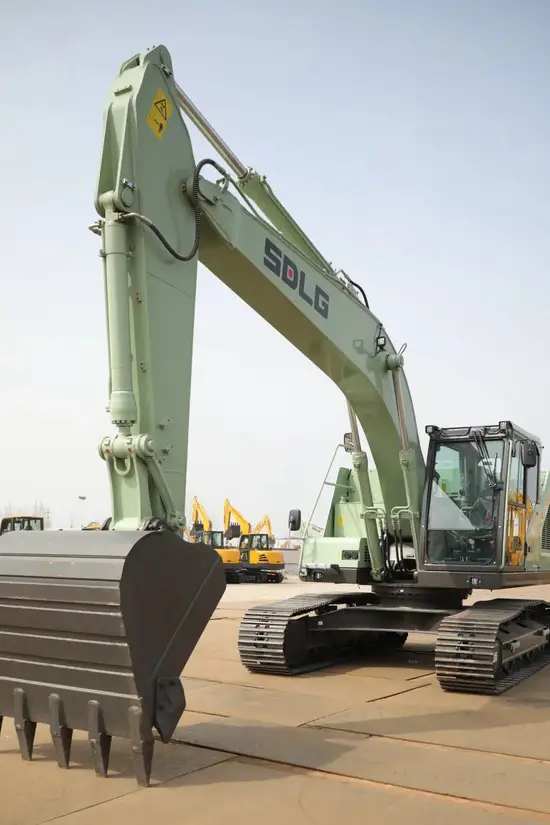

Multifunctionality

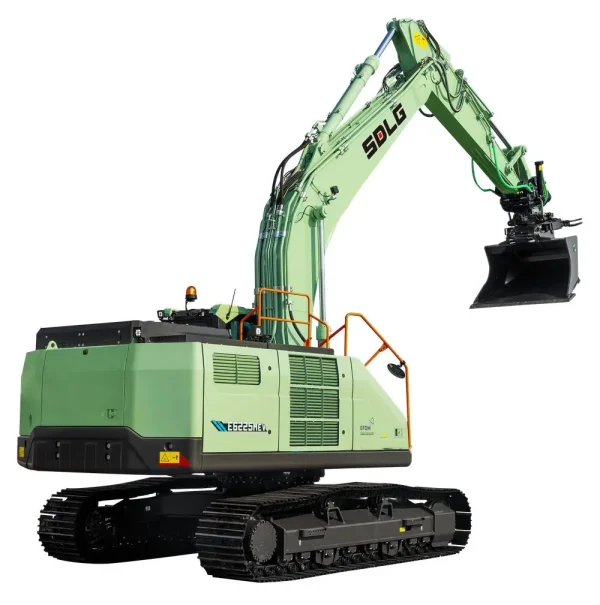

Economy

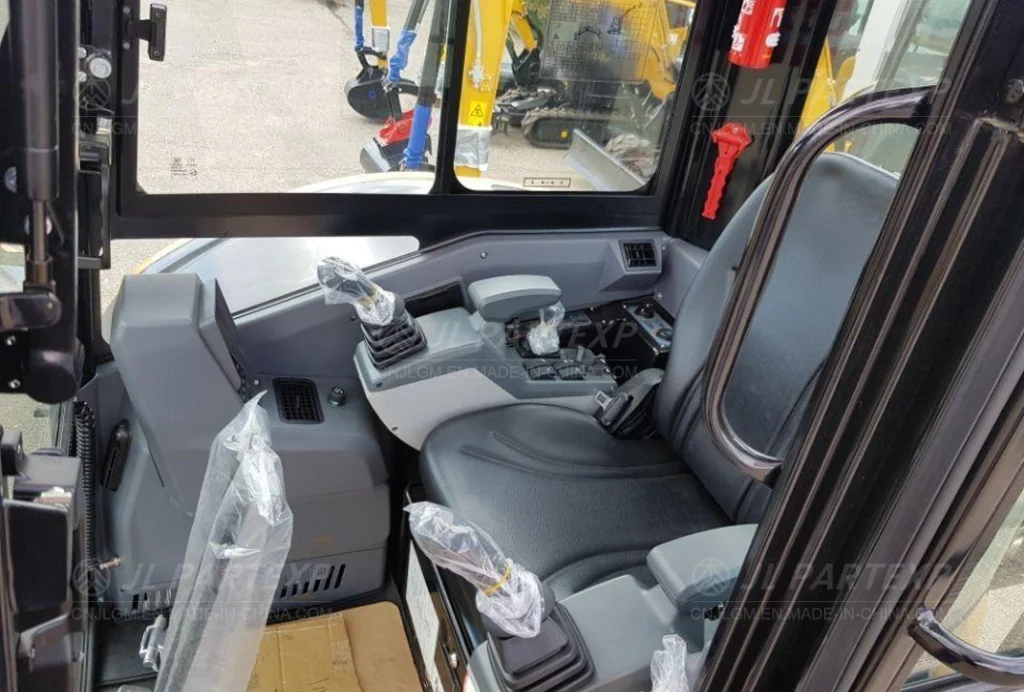

Operator comfort

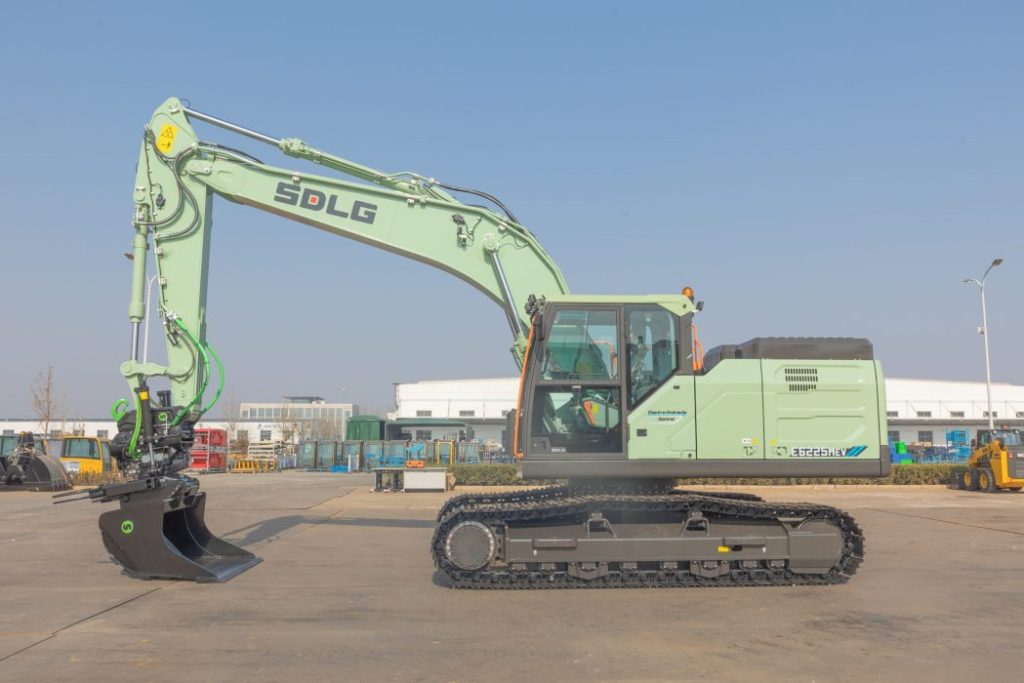

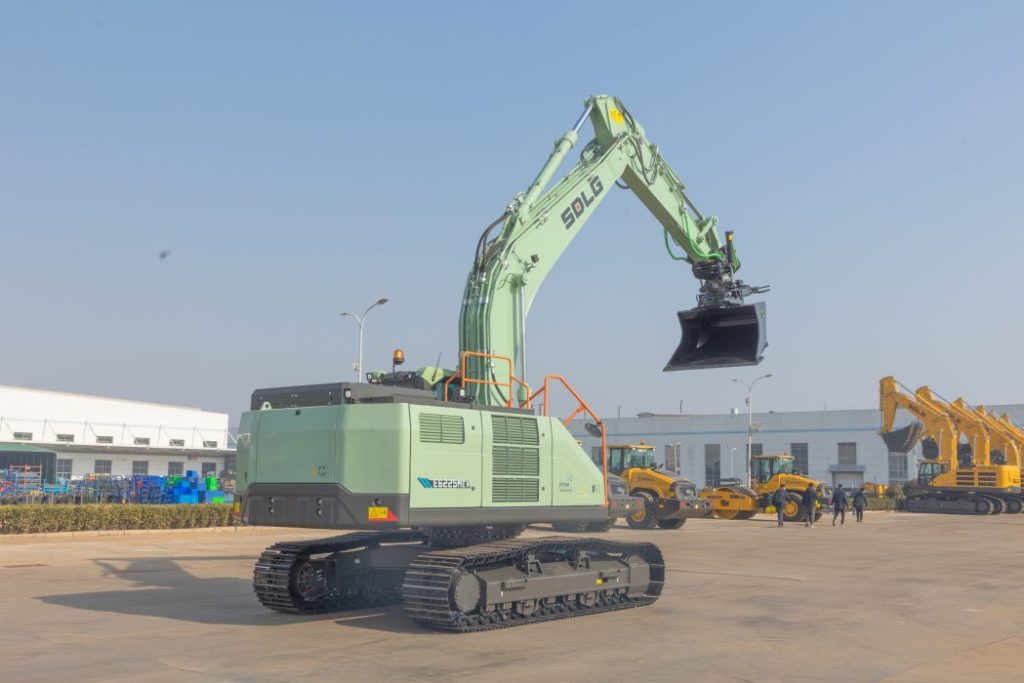

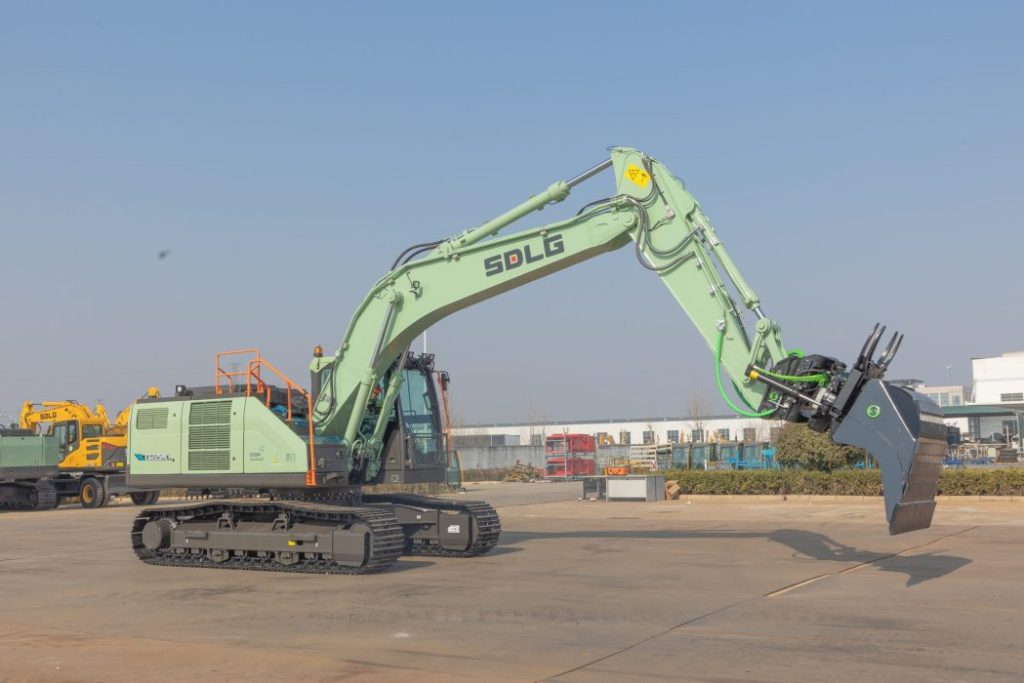

Exterior
Reliability in every detail

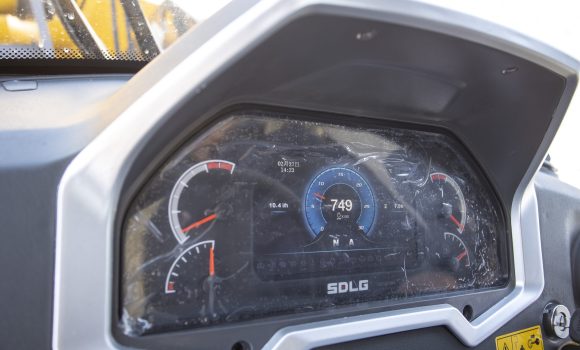

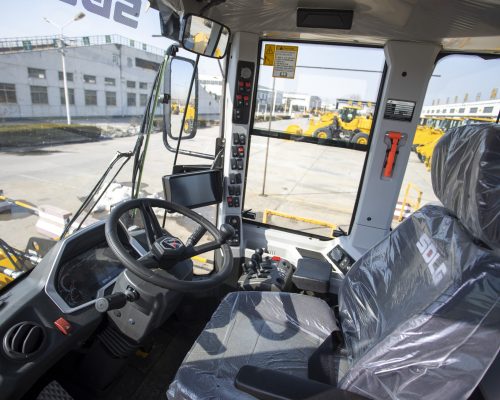

Interior
Experience comfort and functionality
Technical parameters
| Specification | Value | Unit |
|---|---|---|
| Operating Weight | 23,400 (51,588) | kg (lbs) |
| Rated Voltage | 618 | V |
| Battery Rated Capacity | 423 | kWh |
| Rated Power | 150 (204) | kW (hp) |
| Average Runtime | 6–10 | h |
| Charging Hour | 1.5 | h |

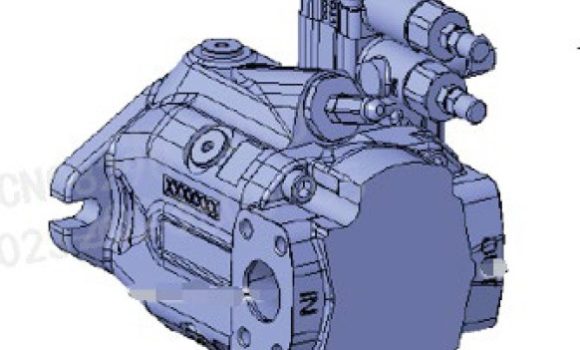

| Pumps Capacity | 2 × 230 + 18 (2 × 60.8 + 4.8) | L/min (gal/min) |
| Main Relief Set Pressure | 340 (4,930) / 355 (5,148) | bar (psi) |
| Max. Digging Force of Bucket | 147.1 (33,069) | kN (lbf) |
| Max. Digging Force of Arm | 105.3 (23,672) | kN (lbf) |
| Travel Low Speed | 3.5 (2.2) | km/h (mi/h) |
| Travel High Speed | 5.7 (3.5) | km/h (mi/h) |
| Gradeability | 35 | ° |
| Swing Speed | 12.1 | r/min |
| Ground Pressure | 35.1 (5.1) | kPa (psi) |
