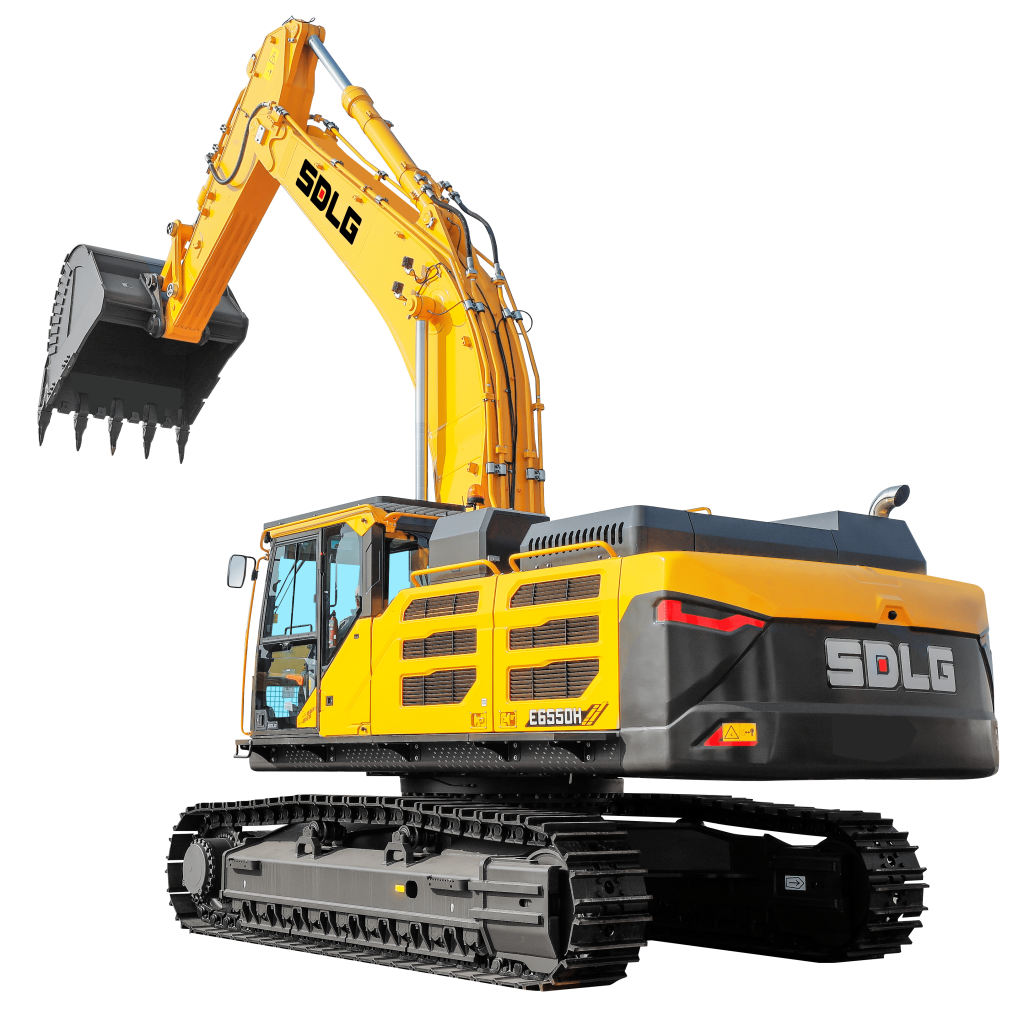

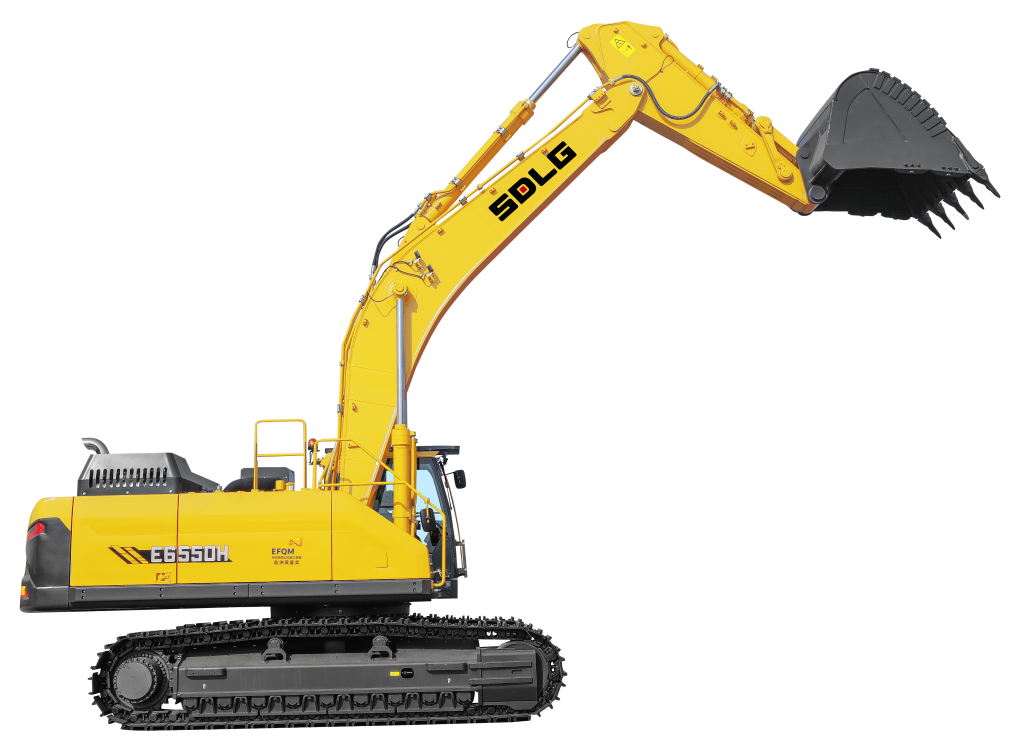

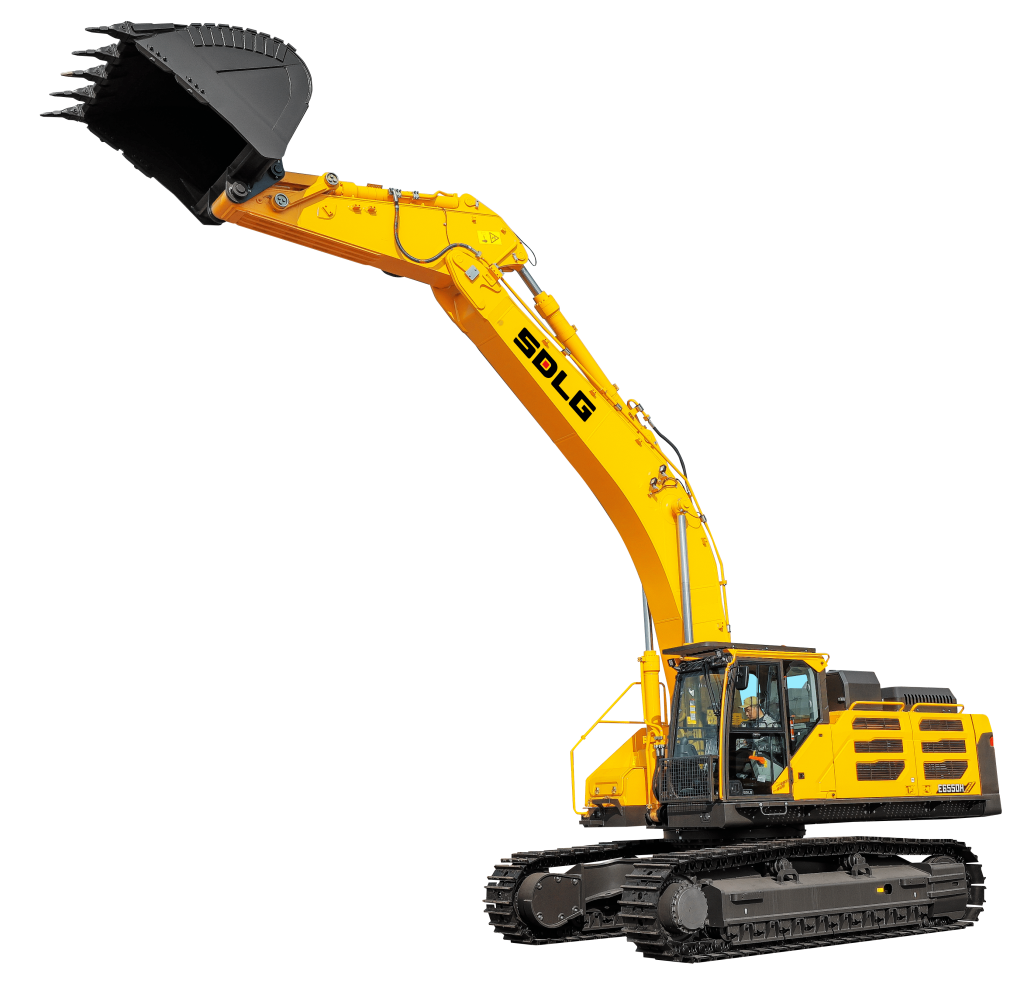

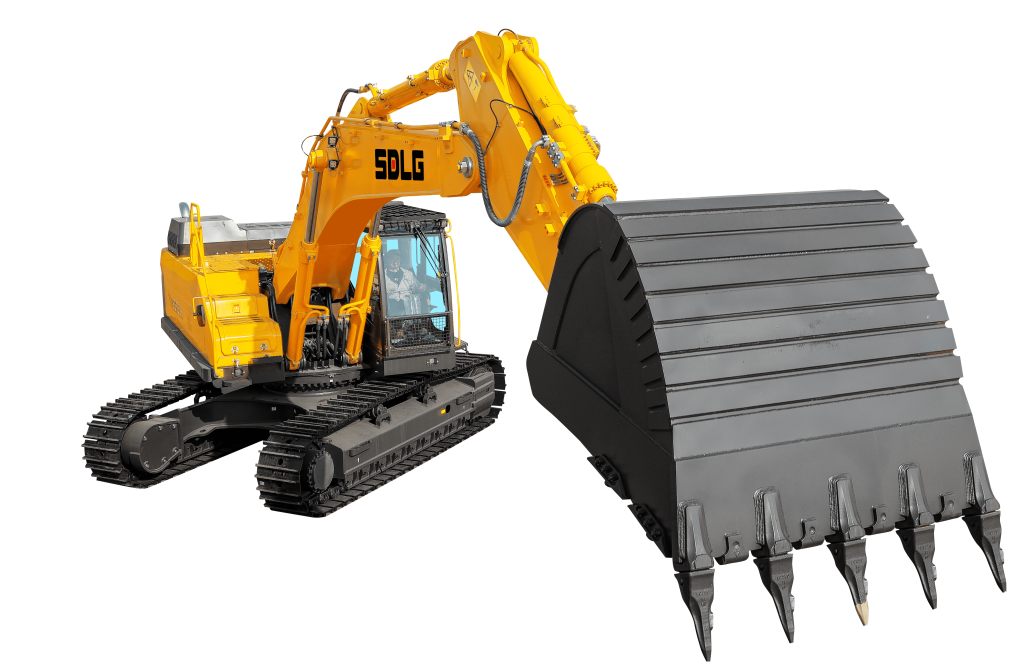

Excavator
E6550HE
Operating weight,kg (lbs)
53500
Rated power,kW (hp)/r/min
300
Bucket capacity (m³)
3.4
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- The E6550HE is two brand-new large-scale controlled roadheader products launched by SDLG.
- It adopts the H series platform and features a brand-new power configuration, which is powerful and efficient.
- Equipped with an advanced fully electronically controlled hydraulic system, it operates smoothly, has a large digging force and high working efficiency.
- The reinforced chassis and frame design ensures a large load-bearing capacity and is firm and reliable. In addition, the brand-new H series high-protection cabs provide operators with a safe and comfortable driving and riding environment.
- The E6550HE is mainly used in open-pit mine stripping and loading, rock crushing and loading, large-scale earthwork operations and other projects.
Technical Parameter
| Operating Weight (kg) | 53500 |
| Engine Model | 6WG1 |
| Rated Power (kW) | 300 |
| Bucket capacity (m³) | 3.4 |
| Length×Width×Height (mm) | 11850ⅹ3565ⅹ3757 |
| Emission Standard | GB/T20891-2014(stage Ⅲ) |
| Swing Speed (r/min) | 9.1 |
| Traveling Speed (km/h) | 3.4/5.1 |
| Max. Digging Radius (mm) | 11290 |
| Max. Digging Depth (mm) | 7030 |
| Max. Digging Height (mm) | 10590 |
| Fuel Tank Capacity (L) | 760 |
