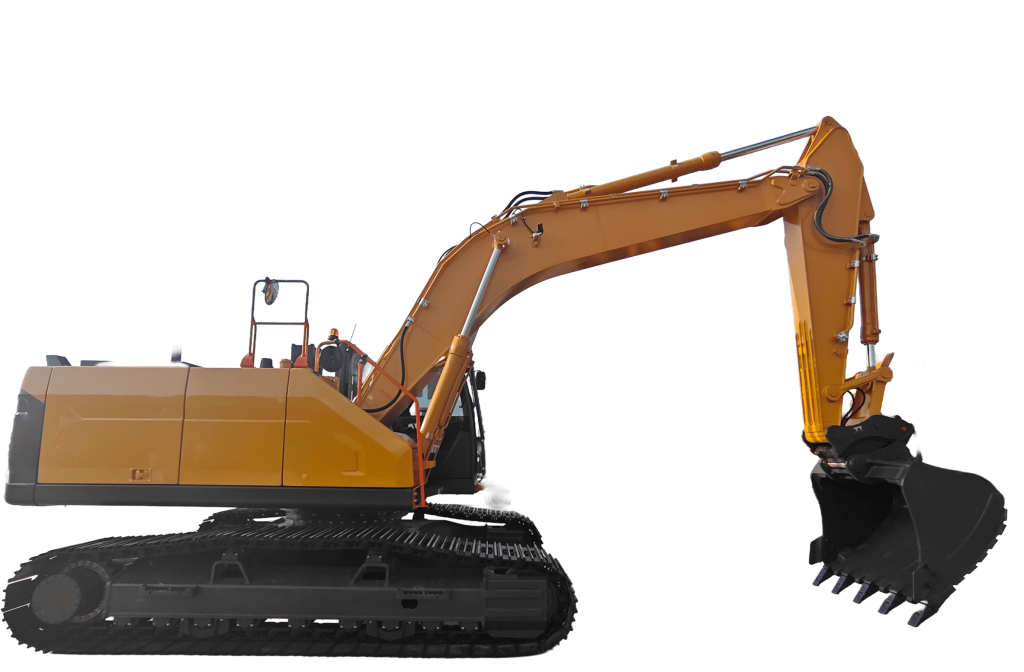

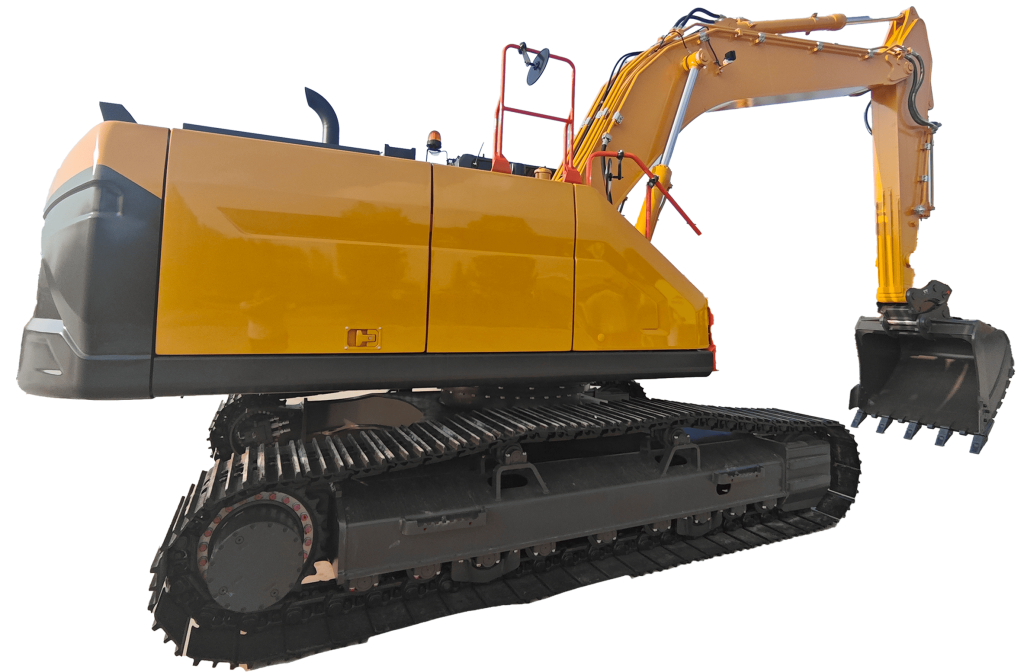

Excavator
E6275H
Operating weight,kg (lbs)
27200
Rated power,kW (hp)/r/min
183
Bucket capacity (m³)
1.6
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- E6275H is a new H series comprehensive working condition product developed by SDLG on the 30T product platform.
- The entire machine’s power system is fuel-efficient and durable, equipped with an advanced fully electronically controlled hydraulic system, featuring a fast response speed, coordinated compound actions, and high working efficiency.
- The new-style H series high-end cab offers a wide field of vision and comfortable driving and riding experience, which enables it to perform exceptionally well in earthwork, gravel, urban construction and other working conditions.
Technical Parameter
| Operating Weight (kg) | 27200 |
| Engine Model | BFM8-25T2-N598 |
| Rated Power (kW) | 183 |
| Bucket capacity (m³) | 1.6 |
| Length×Width×Height (mm) | 10280X3190X3210 |
| Emission Standard | GB 20891-2014(Stage II) |
| Swing Speed (r/min) | 11.3 |
| Traveling Speed (km/h) | 3.3/5.5 |
| Max. Digging Radius (mm) | 10260 |
| Max. Digging Depth (mm) | 6980 |
| Max. Digging Height (mm) | 9690 |
| Fuel Tank Capacity (L) | 520 |
