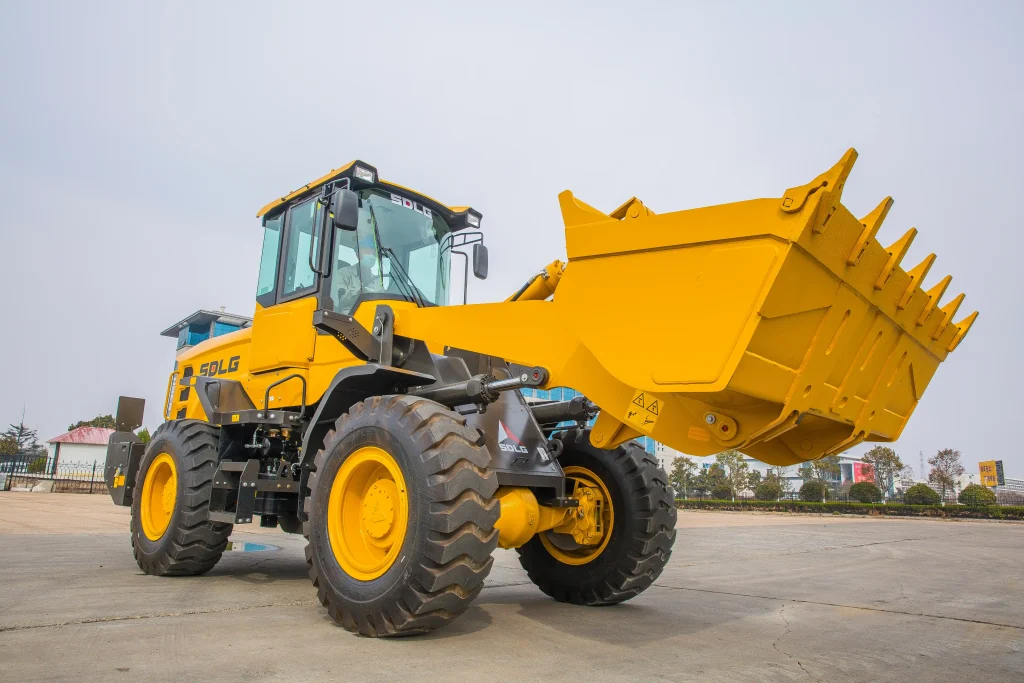

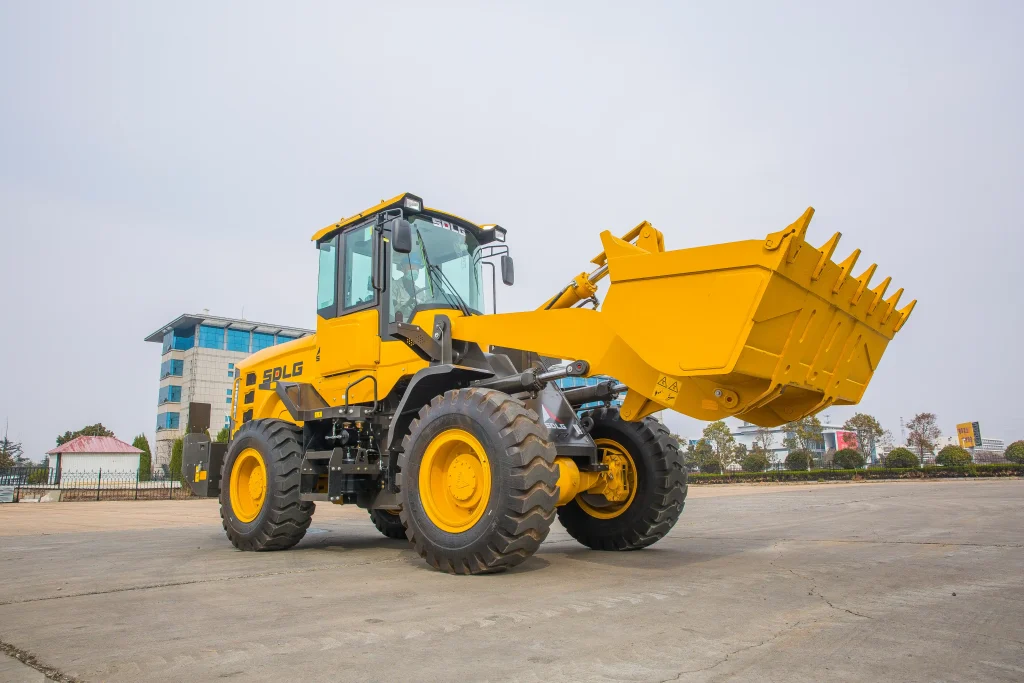

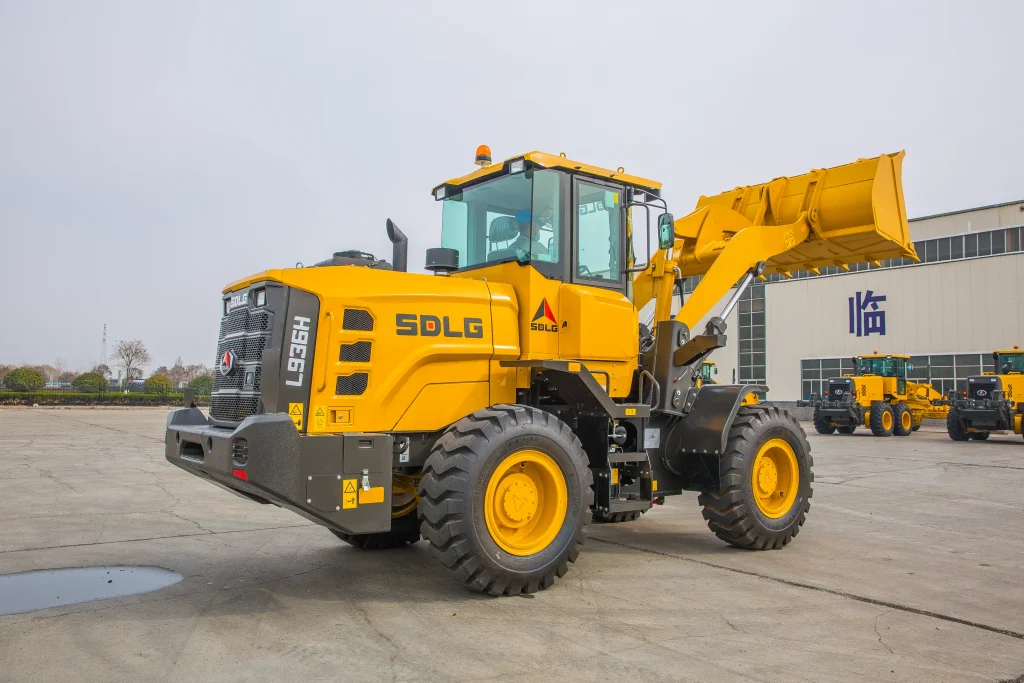

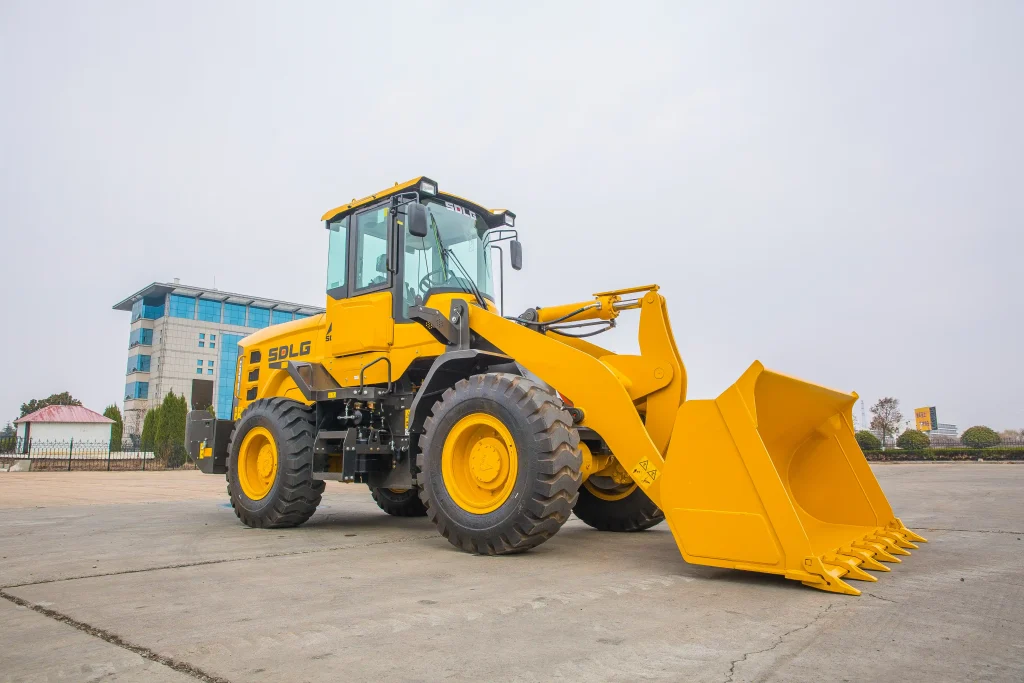

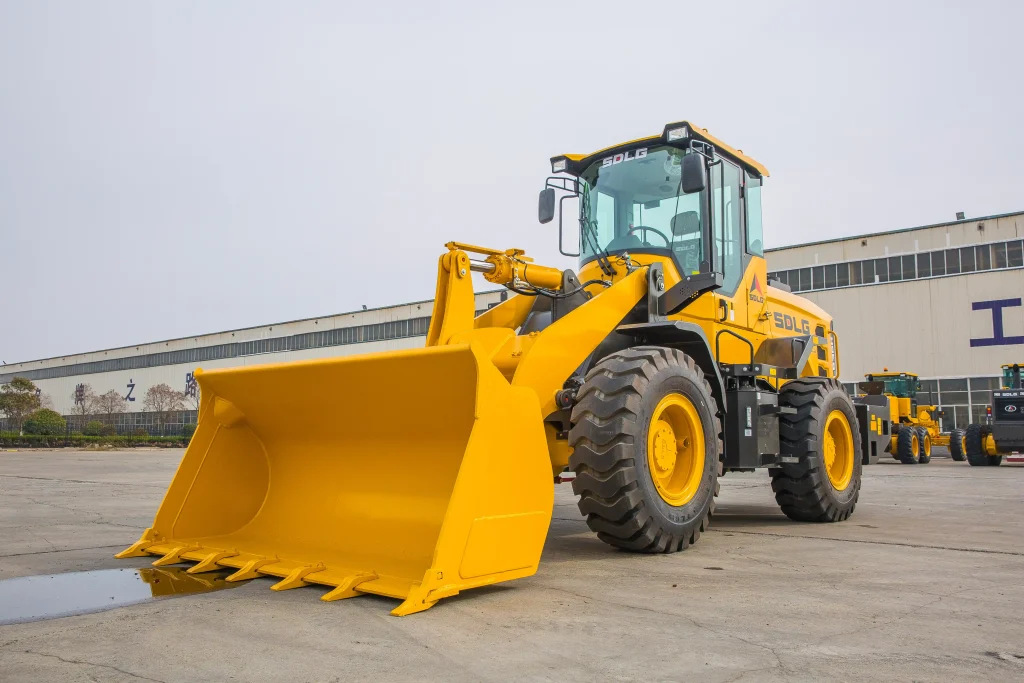

Wheel Loader
L936H (Stage V)
Standard bucket capacity,m³ (yd³)
2.1
Rated load,kg (lbs)
3500
Operating weight,kg (lbs)
11300/11550
Rated power,kW (hp)/r/min
99
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- Reliability: Weichai WP4.6N engine, compliant with Euro 5 emission standards, delivers powerful performance. Equipped with high-precision oil filters and air filters, it meets the operational requirements of harsh working conditions with high reliability.
- Energy-saving: Three-level power modes (heavy load P, medium load S, light load E) are set, enabling customers to choose according to working conditions for energy conservation and high efficiency.
- Comfort and Convenience: High-grade suspended seat, adjustable in multiple angles and dimensions; control buttons, arranged vertically on the right front for easy access; heating and cooling air conditioning for comfortable riding, with a heating and cooling storage box; color multifunctional instrument, luxurious and high-end.
Technical Parameter
| Rated Load (kg) | 3500 |
| Length×Width×Height (mm) | 7285×2520×3340 |
| Wheel Base (mm) | 1865 |
| Max.Dumping Height (mm) | 2930 |
| Dumping Distance (mm) | 1140 |
| Steering Angel (°) | 37 |
| Emission Standard | Stage V |
| Max.Tractive Force (kN) | ≥100 |
| Max.Breakout Force (kN) | ≥96 |
| Fuel Tank Capacity (L) | 160 |
| Standard Bucket Capacity (m³) | 2.1 |
| Operating Weight (kg) | 11300/11550 |
| Rated Power (kW) | 99 |
| Engine Model | Weichai WP4.6NG135E670 |
