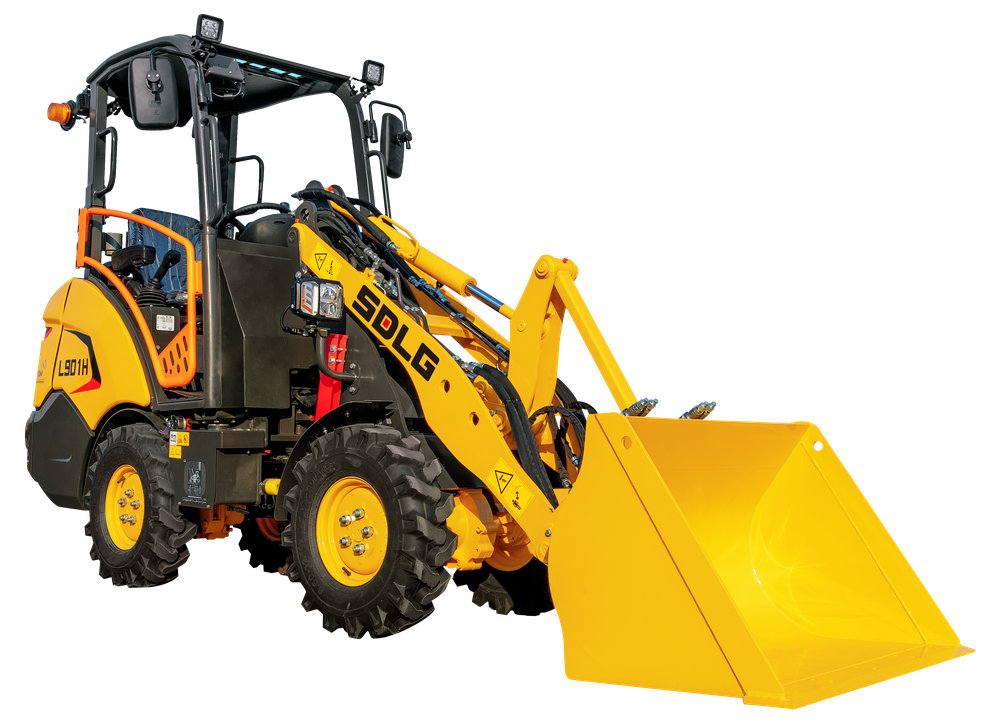

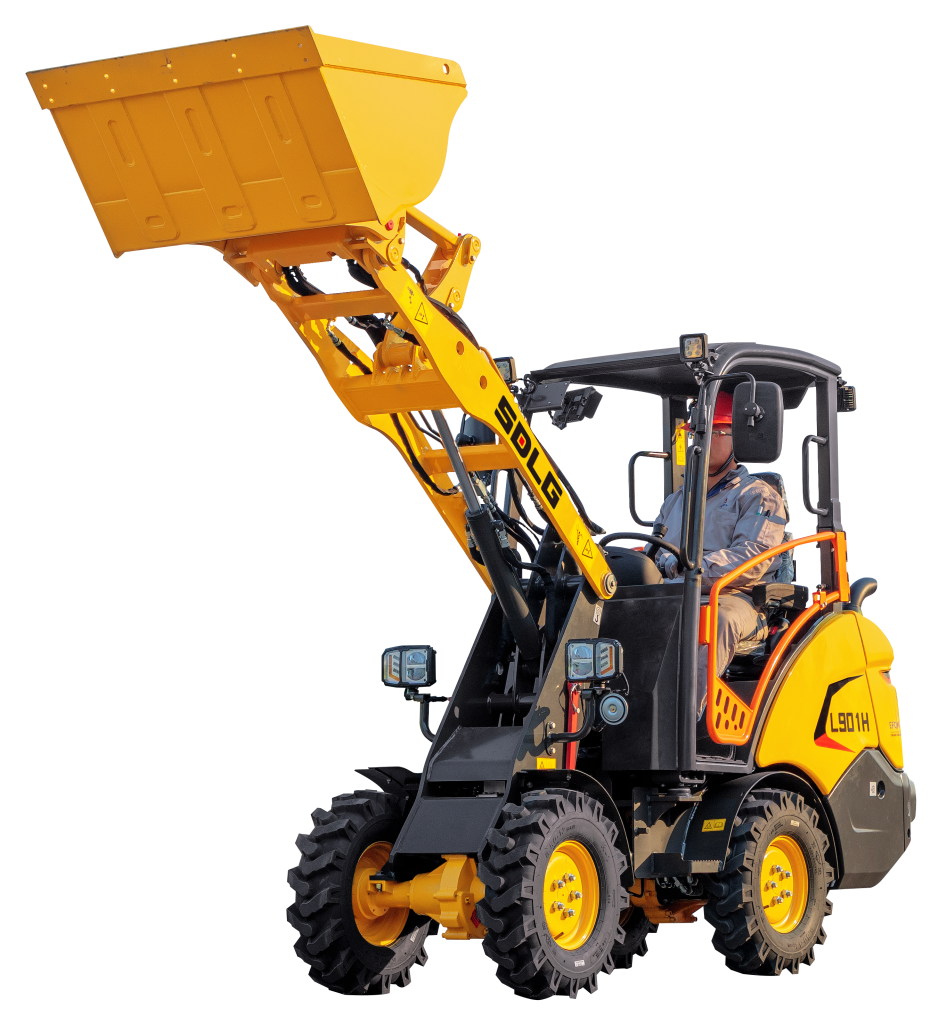

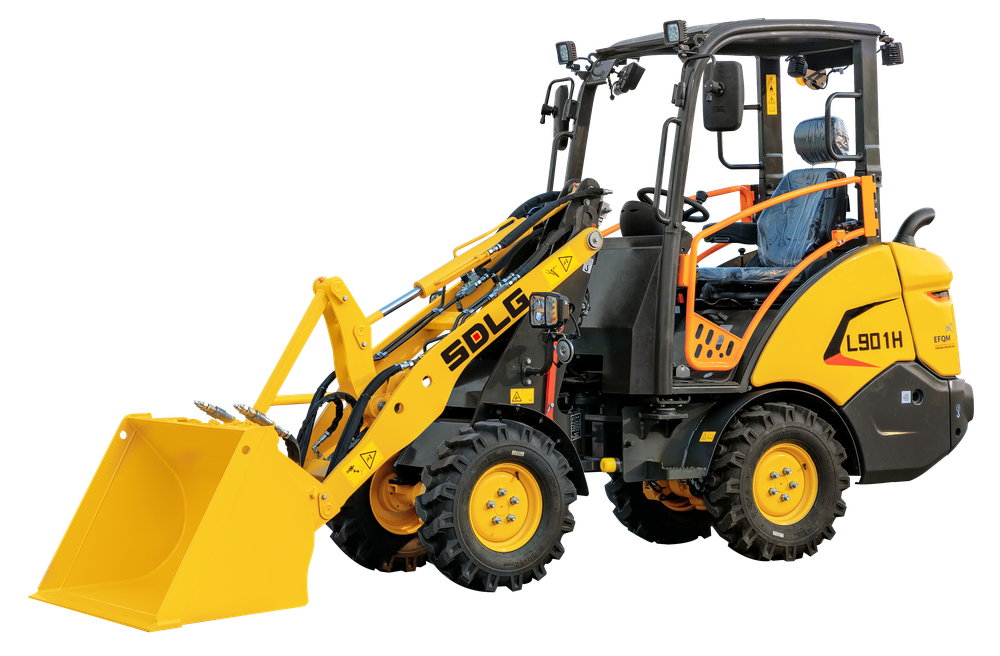

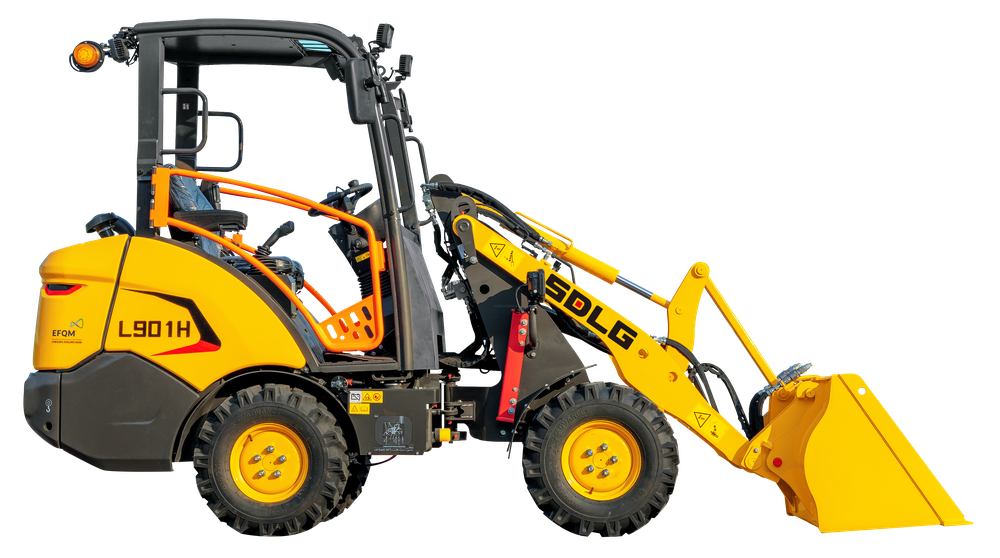

Wheel Loader
L901H
Standard bucket capacity,m³ (yd³)
0.28 (0.37)
Rated load,kg (lbs)
400 (882)
Operating weight,kg (lbs)
1,950(4,299)
Rated power,kW (hp)/r/min
18.2 (24.4)/2,200
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features

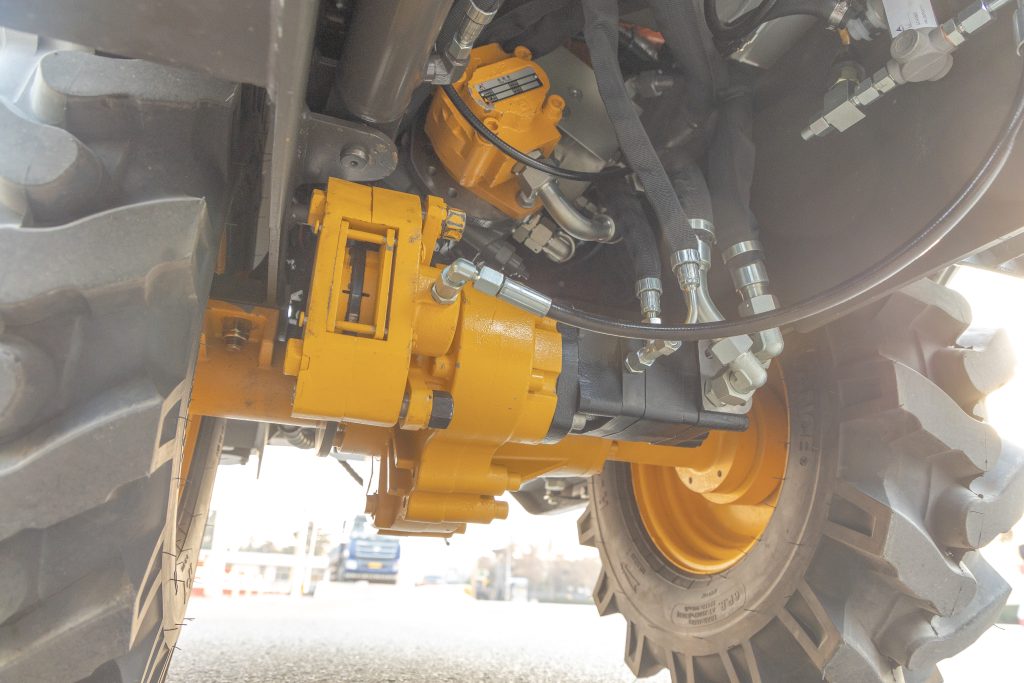

- The SDLG-exclusive technology for great traction, which drive form can be switched from series to parallel.

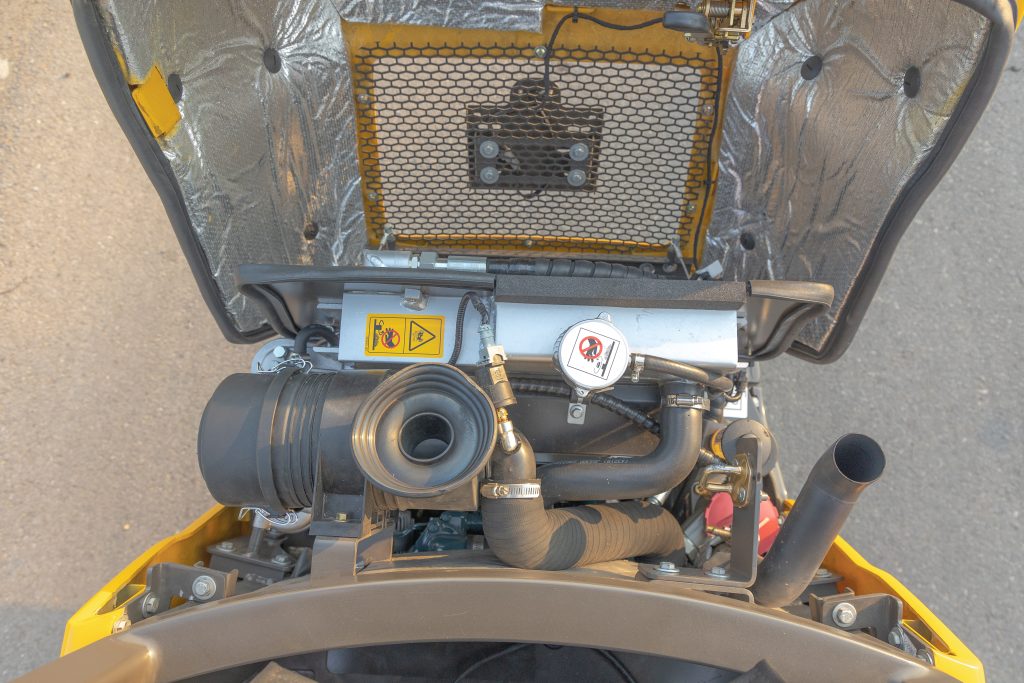

- Utilizing a large displacement engine allows the unit to operate at lower RPM, reducing vibration, noise, and fuel consumption, and improving reliability.

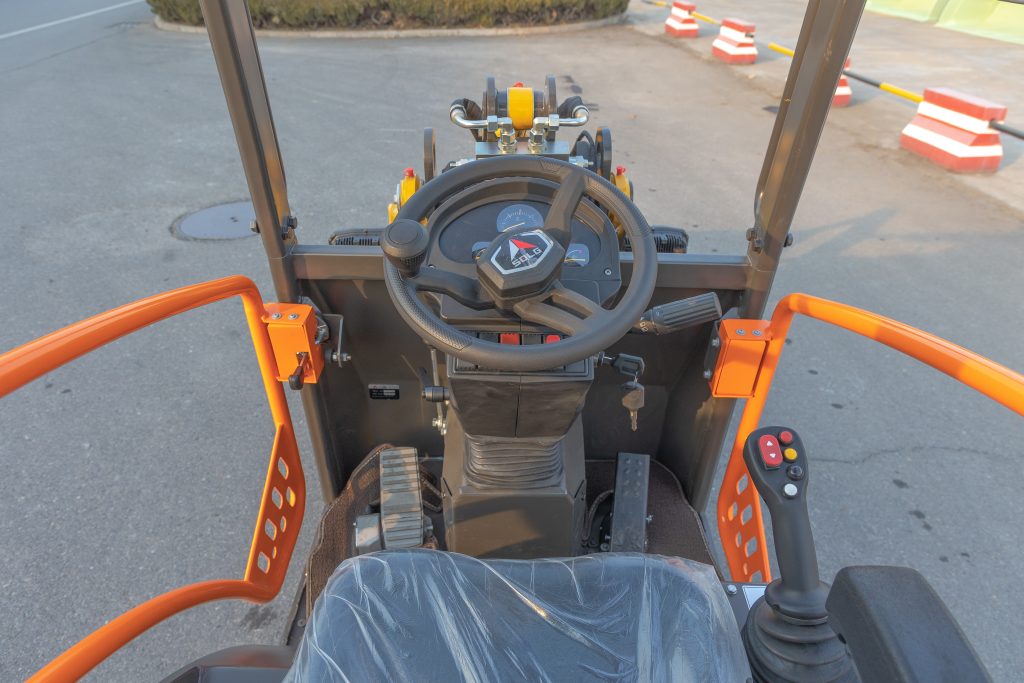

- The operator can easily adjust the engine speed at any time by simply pulling the throttle lever to accommodate any working condition.

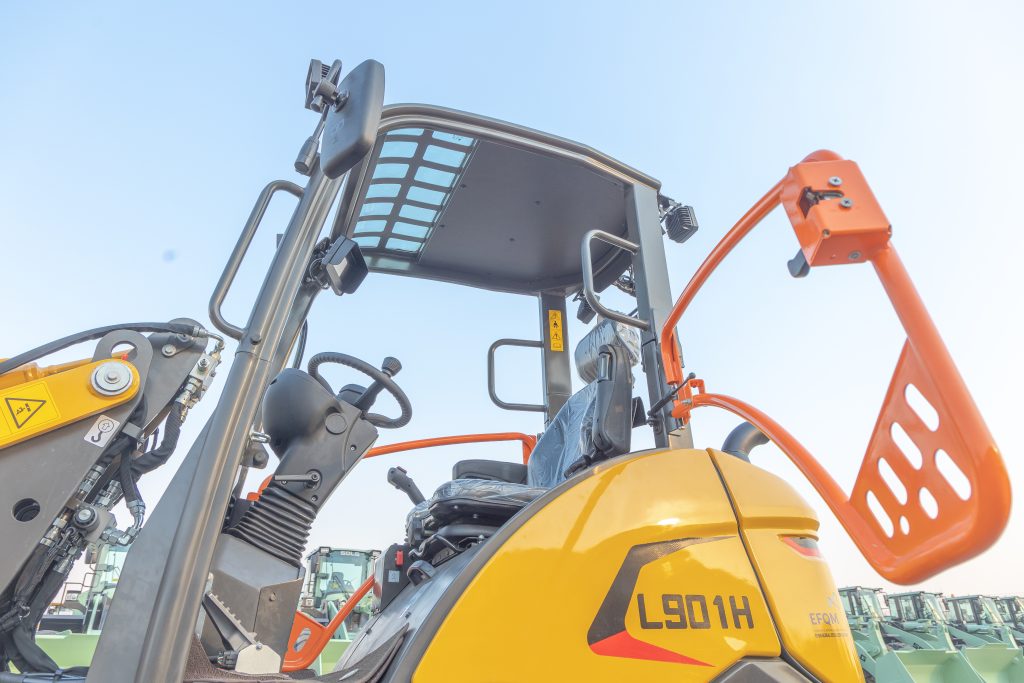

- ROPS & FOPS certified canopy.
Technical Parameter
| Standard bucket capacity,m³ (yd³) | 0.28 (0.37) |
| Rated load,kg (lbs) | 400 (882) |
| Operating weight ,kg (lbs) | 1,950(4,299) |
| Max.breakout force,kN (lbf ) | 12 (2,698) |
| Engine mode | Kubota D1703 |
| Rated power,kW (hp) | 18.2 (24.4)/2,200 |
| Engine displacement,ml (in³） | 1674 (102) |
| Transmission type | HST |
| Speed at Fl/Rl,km/h (mph) | 0~6 (0~3.7) |
| Speed at F2/R2,km/h (mph) | 0~12 (0~7.5) |
| Tire size | 6.5-12 |
| Fuel tank,L (gal) | 25 (6.6) |
| Overall shipping size (L•W•H)，mm (ft in) | 4015 (13’2″)*1,000(3’3.4″)*2203 (7’2.7″) |
| A Wheelbase,mm (ft in) | 1,370(4’5.9″) |
| B Ground clearance,mm (ft in) | 165 (6.5″) |
| C Reach at max.height,mm (ft in) | 468 (1’6.4″) |
| D Dumping angle,° | 45 |
| E Height at bucket pin,mm (ft in) | 2,592(8’6″) |
| F Dumping height,mm (ft in) | 1,820(5’11.7″) |
| G Bucket rollback at ground level,° | 50 |
| I Wheel tread,mm (ft in) | 685(2’3.0″) |
| J Articulation angle,° | 45 |
| K Turning radius at over bucket,mm (ft in) | 2,590(8’6″) |
| M Turning radius at inside of tires,mm (ft in) | 1247（4’1.1″) |
