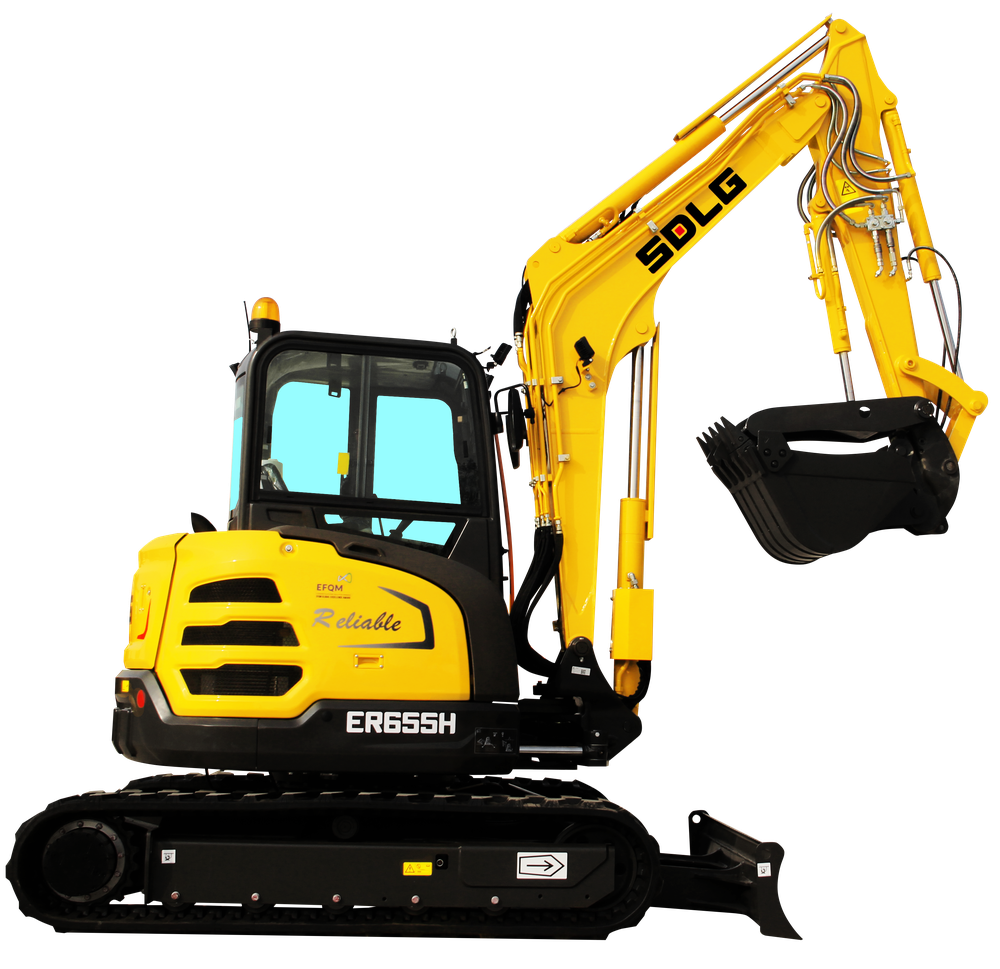

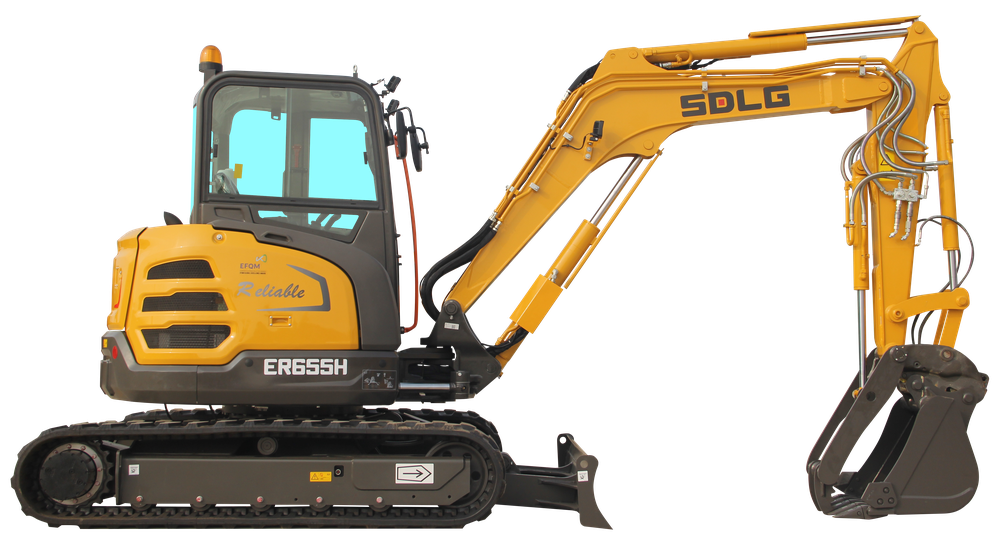

Excavator
ER655H
Operating weight,kg (lbs)
5,900(13,007)
Rated power,kW (hp)/r/min
35.5(48)
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
- Video
Features
- The ER655H is equipped with a Yanmar engine designed to work seamlessly with the hydraulic system, providing optimal break out force and lifting capacity.
- Enhanced stability created by a reinforced X frame and an oversized track gauge.
- New generation ROPS&TOP guard providing a comfortable and spacious operating environment, as well as an excellent field of view improving the operating experience.
- Standard unit offers a 12V outlet, USB port, radio, Bluetooth, and hands-free phone.
- Thumb and hydraulic quick coupler are standard offering on this model.
- Auxiliary pipelines with 5 quick connectors, allow attachments to be changed quickly and efficiently.
Technical Parameter
| Operating weight,kg (lbs) | 5,900(13,007) |
| Engine Model | Yanmar 4TNV86CT |
| Rated power,kw (hp) | 35.5(48) |
| Rated engine speed,rpm | 2400 |
| Displacement,ml (in³) | 2,091(127.6) |
| Pump capacity,L/min (gal/min) | 151.2(39.9) |
| Main relief set pressure,bar (psi) | 263(3814.5) |
| Travel low speed,km/h (mi/h) | 2.2(1.4) |
| Travel high speed,km/h (mi/h) | 4.4(2.7) |
| Gradeability,° | 30 |
| Max. digging force of bucket,kN (lbf) | 45(10,116) |
| Max. digging force of arm,kN (lbf) | 27.5(6,182) |
| Swing speed,r/min | 10 |
| Blade (width*height),mm (in) | 1,980(78″)*380(15″) |
| Ground pressure,kPa (psi) | 33.4(4.8) |
| Fuel tank,L (gal) | 65(17.2) |
| Boom length,mm (ft in) | 2,800(9’2″) |
| Arm length,mm (ft in) | 1,540(5’0.6″) |
| Bucket capacity,m³ (yd³) | 0.18(0.24) |
| A Max. digging reach,mm (ft in) | 6,043(19’10”) |
| B Max. digging reach on ground,mm (ft in) | 5,910(19’5″) |
| C Max. cutting height,mm (ft in) | 5,608(18’5″) |
| D Max. dumping height,mm (ft in) | 3,876(12’8″) |
| E Max. digging depth,mm (ft in) | 3,492(11’5″) |
| F Max. digging depth (horizontal 8ft),mm (ft in) | 3,090(10’2″) |
| G Max. vertical wall digging depth,mm (ft in) | 2,633(8’8″) |
| H Overall shipping height,mm (ft in) | 2,545(8’4″) |
| I Tail swing radius,mm (ft in) | 1,090(3’7″) |
| J Min. front swing radius,mm (ft in) | 2,637(8’8″) |
| K Undercarriage length,mm (ft in) | 2,500(8’2″) |
| L Overall shipping length,mm (ft in) | 5,485(18′) |
| M Track width,mm (ft in) | 400(1’4″) |
| W Overall shipping width,mm (ft in) | 1,980(6’6″) |
