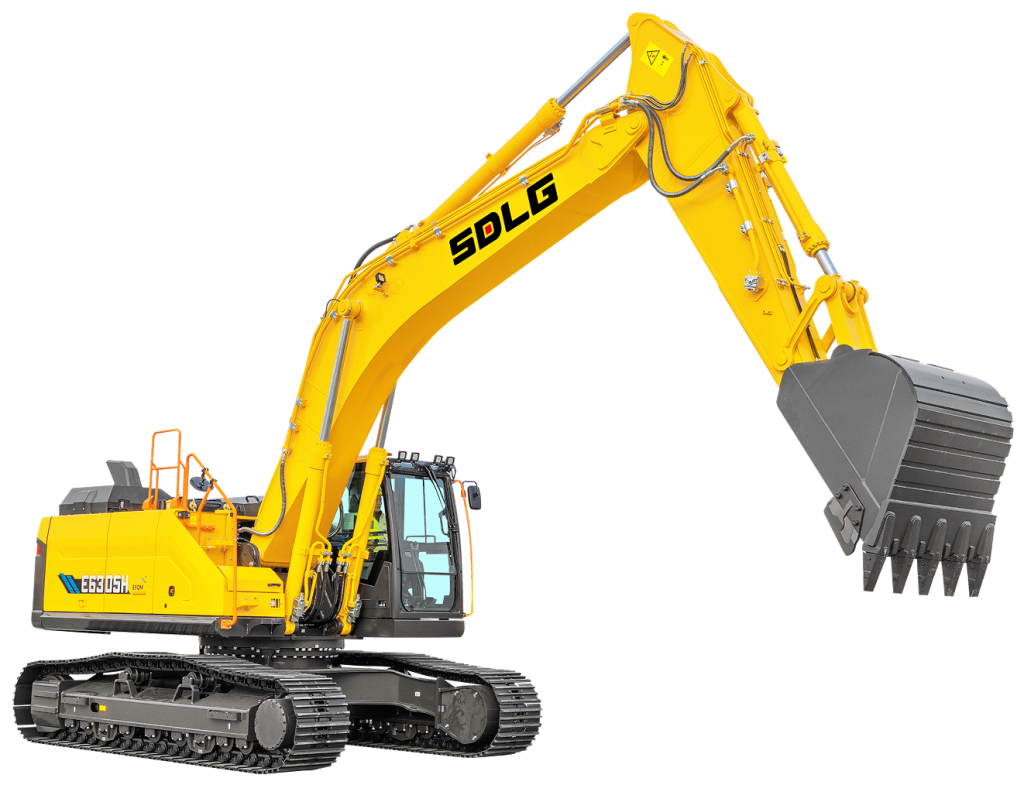

Excavator
E6305H
Operating weight,kg (lbs)
32200(70988)
Rated power,kW (hp)/r/min
225(301.7)
Talk to sales directly —
Anthony 086 223 7039
or Ronald 087 915 3459
.
Demos arranged nationwide.
- Features
- Technical Parameter
Features
- The E6305H offers SDLG’s exclusive electronic control system, which is easily customized to accommodatediferent applications and operating habits; offering various working modes for improving productivity andreducing fuel consumption.

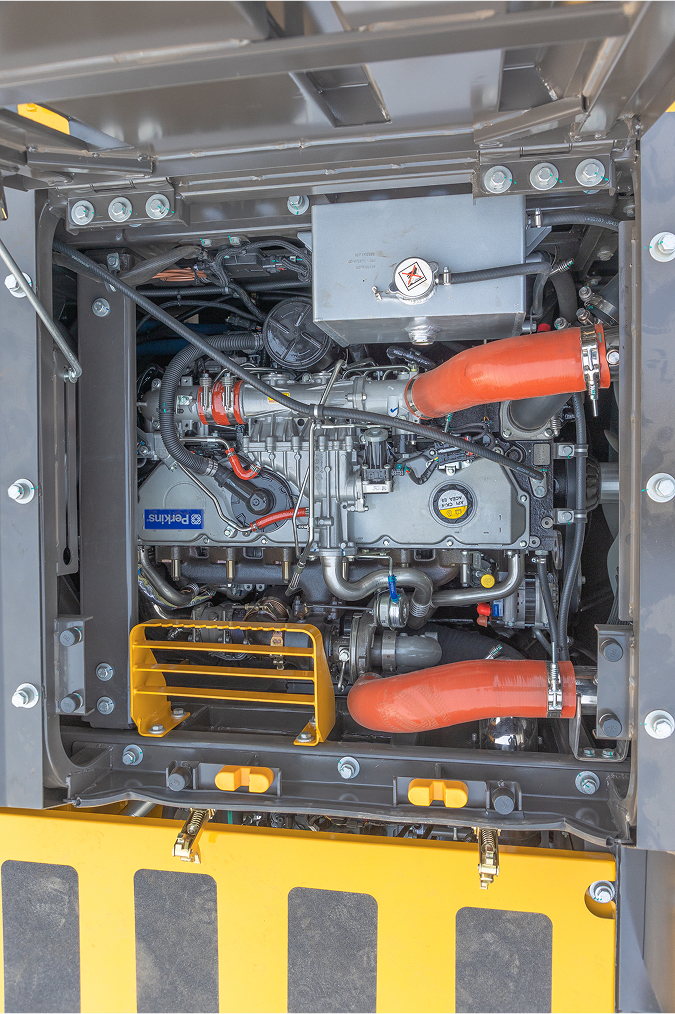

- Perkins engine features passive regeneration technology, automatically removing the diesel particulateswithout unnecessary downtime.

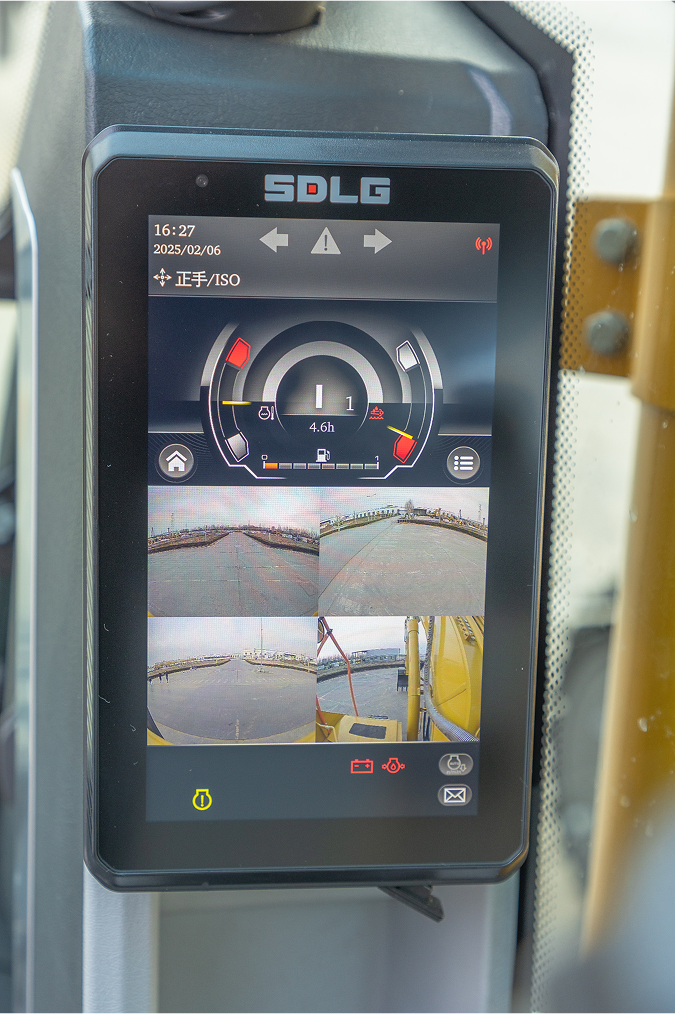

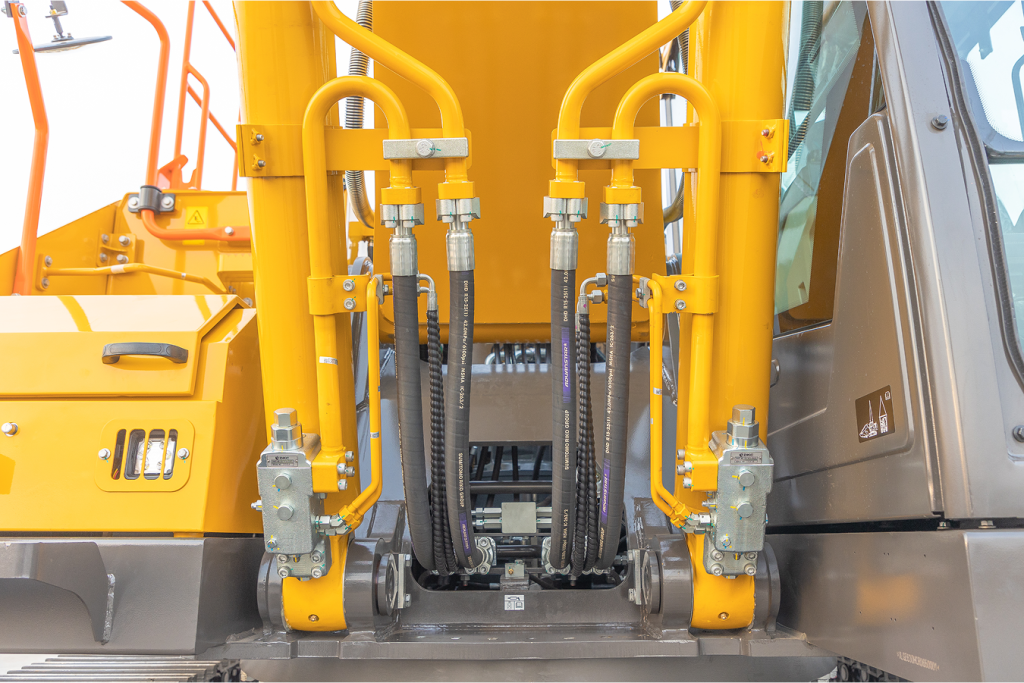

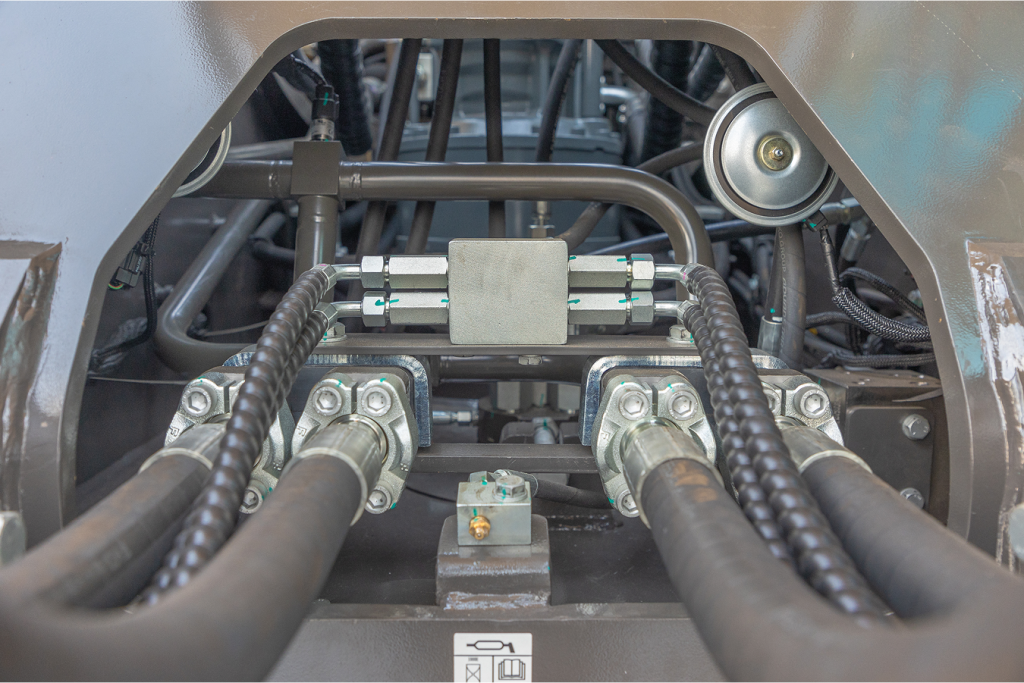

- A double-pump hydraulic system ensures ample flow to meet all attachment needs, the 8-inch touchscreen provides complete operator control to adjust auxiliary pressures and flow.

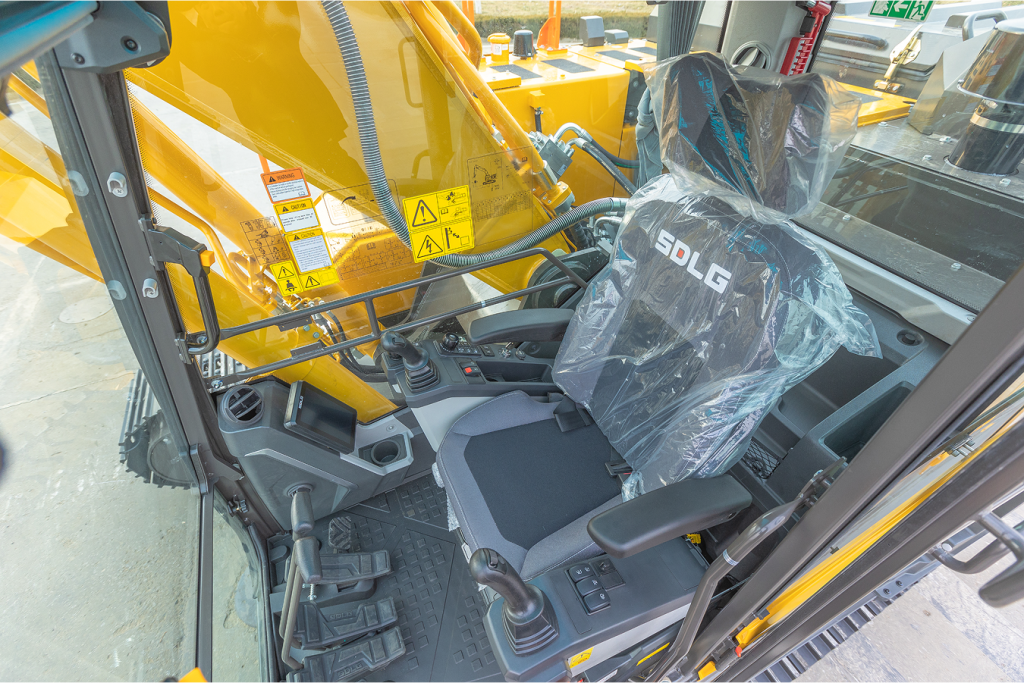

Cab is equipped with optimized air conditioning and air suspension seat with heating and ventilation. - Safety features include rear and right side cameras, ROps certified cab, beacon, audible travel alarm, anddual emergency shut-off switches.
- The reinforced chassis, thickened track shoes, and double support structure drag sprockets mitigatedowntime and extend lifespan.
Technical Parameter
| Boom length,mm (ft in) | 6200(20’4.1″) |
| 1625(64″) | |
| M Track width,mm (ft in) | 600(23.6″) |
| K Undercarriage length,mm (ft in) | 4850(15’10.9″) |
| J Min. front swing radius,mm (ft in) | 3950(12’11.5″) |
| I Tail swing radius,mm (ft in) | 3140(10’3.6″) |
| G Max. vertical wall digging depth,mm (ft in) | 5940(19’5.9″) |
| F Max. digging depth (horizontal 8ft),mm (ft in) | 6970(22’10.4″) |
| E Max. digging depth,mm (ft in) | 7150(23’5.5″) |
| D Max. dumping height,mm (ft in) | 7320(24’0.2″) |
| C Max. cutting height,mm (ft in) | 10390(34’1.1″) |
| B Max. digging reach on ground,mm (ft in) | 10510(34’5.8″) |
| A Max. digging reach,mm (ft in) | 10710(35’1.7″) |
| Bucket capacity,m³ (yd³) | 1.6(21) |
| Arm length,mm (ft in) | 3050(10’0.1″) |
| Engine Model | 1206J-E70TTA |
| Fuel tank,L (gal) | 510(134.7) |
| Ground pressure,kPa (psi) | 58(8.4) |
| Swing speed,r/min | 10.7 |
| Gradeability,° | 35 |
| Travel high speed,km/h (mi/h) | 5.7(3.5) |
| Travel low speed,km/h (mi/h) | 3.5(2.2) |
| Max. digging force of arm,kN (lbf) | 144.5(32485) |
| Max. digging force of bucket,kN (lbf) | 205.5(46198) |
| Main relief set pressure,bar (psi) | 340(4930)/355(5148) |
| Pump capacity,L/min (gal/min) | 2*234+27(2*61.8+7.1) |
| Displacement,ml (in³) | 7010(427.8) |
| Rated engine speed,rpm | 2200 |
| Rated power,kw (hp) | 225(301.7) |
| Operating weight,kg (lbs) | 32200(70988) |
